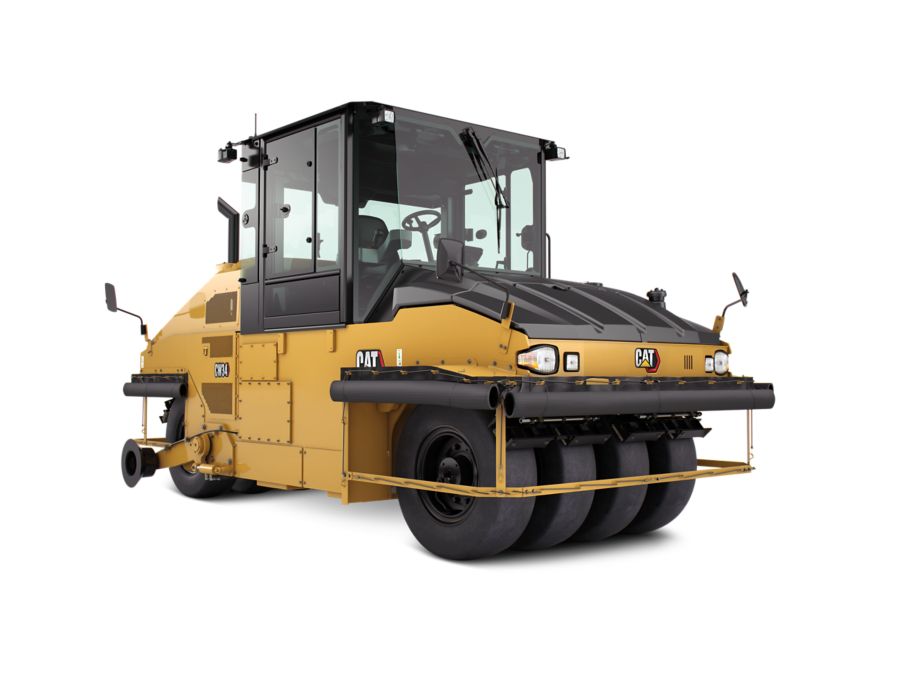

The Cat® CW34 is an eight wheel pneumatic tire roller that features a modular ballast system and flexible operating weights. It offers consistent compaction, good visibility, Eco-mode operation and excels on a variety of materials including asphalt and aggregates.
The Cat® CW34 is an eight wheel pneumatic tire roller that features a modular ballast system and flexible operating weights. It offers consistent compaction, good visibility, Eco-mode operation and excels on a variety of materials including asphalt and aggregates.

Brochures and Spec Sheets

Gallery

CW34 CW34 CW34 CW34 CW34

Specifications

Specification Value Unit
Operating Weight - Standard Machine Empty 22050 lb
Operating Weight - Maximum Ballast 59525 lb
Compaction Width 82 in
Number of Wheels
Travel Speed - Maximum 12 mile/h
Turning Radius - Inside 240 in
Turning Radius - Outside 342 in
Ground Clearance 10 in
Engine Model
Gross Power 131 hp
Overall Length 210 in
Overall Width 85 in
Height - ROPS 118 in
Tires
Fuel Tank Capacity 71 gal (US)
Water Spray Tank Capacity 100 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Wheels and Spray System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Wheels and Spray System
  • Service and Maintenance
  • Safety
