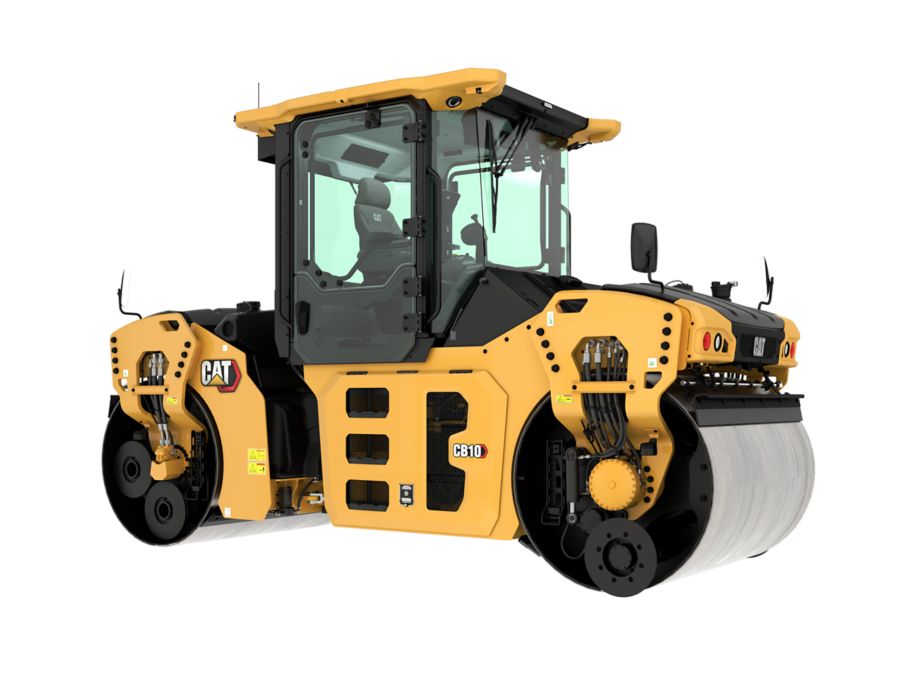

The Cat® CB10 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
The Cat® CB10 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.

Brochures and Spec Sheets

Gallery

CB10 CB10 CB10 CB10 CB10

Specifications

Specification Value Unit
Operating Weight - With Cab 22,255 lb
Maximum Operating Weight with Cab 23,197 lb
Standard Operating Weight with ROPS 21,642 lb
Maximum Operating Weight with ROPS 22,575 lb
Standard Compaction Width 67 in
Maximum Compaction Width 73 in
Static Linear Load - With Cab 173 lb/in
Static Linear Load - With ROPS/FOPS 168 lb/in
Travel Speed - Maximum 7 mile/h
Overall Length 186 in
Overall Width 85 in
Height - With ROPS/FOPS or Cab 118 in
Wheel Base 139 in
Drum Diameter 47 in
Engine Model
Engine Power (1) 120 hp
Drum Width 67 in
Centrifugal Force per Drum - Maximum 14,185 lb
Centrifugal Force per Drum - Minimum 11,982 lb
Nominal Amplitude - High 0.034 in
Nominal Amplitude - Low 0.01 in
Vibration Selection
Fuel Tank Capacity 36.5 gal (US)
Water Spray Tank Capacity 225 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Vibratory System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Vibratory System
  • Service and Maintenance
  • Safety
