CB13

CB13
Cat
Request a Quote Find a Location

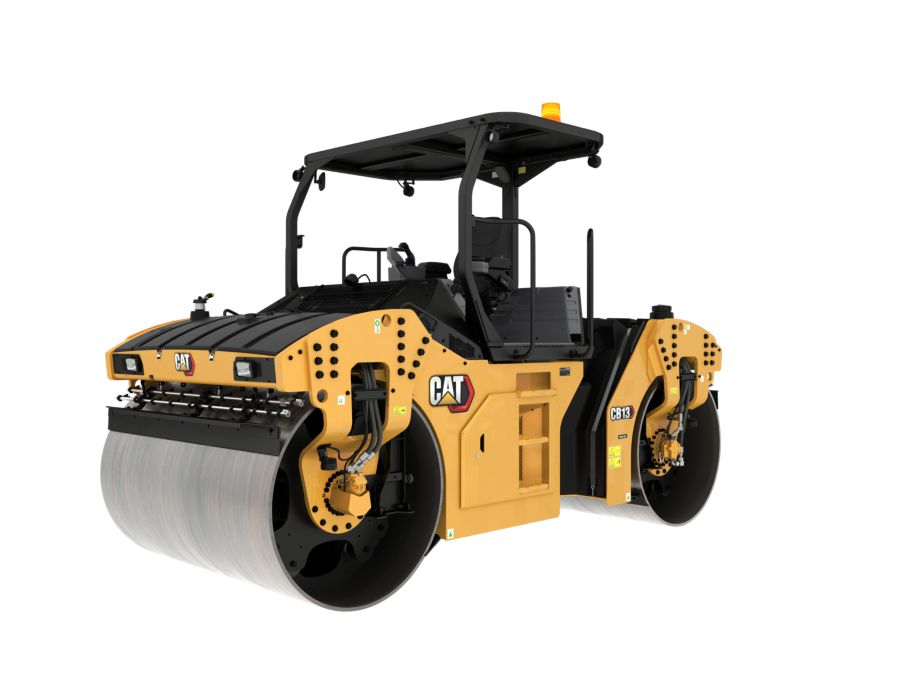

The CB13 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration (option), and 360 degree seating (option) make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.
The CB13 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration (option), and 360 degree seating (option) make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.

Brochures and Spec Sheets

Gallery

CB13 CB13 CB13 CB13 CB13

Specifications

Specification Value Unit
Standard - Operating Weight 27,557 lb
Maximum Operating Weight 28,991 lb
Standard Compaction Width 79 in
Drum Offset 6 in
Ground Clearance 11.5 in
Curb Clearance 28 in
Static Linear Load 189 lb/in
Engine Model
Gross Power 142 hp
Low 4 mile/h
High 8 mile/h
Overall Length 15.5 ft
Wheel Base 11.25 ft
Height - With ROPS/FOPS 10 ft
Overall Width 92 in
Centrifugal Force per Drum - Maximum 24728 lb
Centrifugal Force per Drum - Minimum 7800 lb
Maximum Amplitude 0.038 in
Minimum Amplitude 0.012 in
Maximum Frequency 3800 VPM
Minimum Frequency 2520 VPM
Fuel Tank Capacity 66 gal (US)
Water Spray Tank Capacity 264 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Vibratory System
  • Safety
