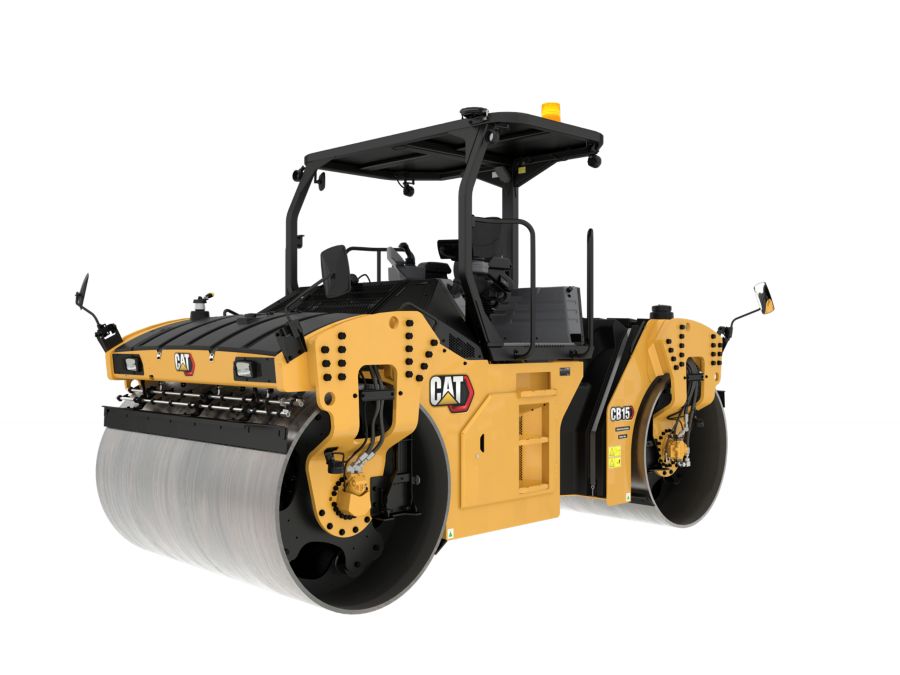

CB15

CB15
Cat
Request a Quote Find a Location
The CB15 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degree seating option make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.
The CB15 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degree seating option make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.

Brochures and Spec Sheets

Gallery

CB15 CB15 CB15 CB15 CB15

Specifications

Specification Value Unit
Standard - Operating Weight 28958 lb
Maximum Operating Weight 30391 lb
Standard Compaction Width 84 in
Drum Offset 6 in
Curb Clearance 28 in
Ground Clearance 11.5 in
Static Linear Load 186 lb/in
Engine Model
Gross Power 142 hp
High 8 mile/h
Low 4 mile/h
Overall Length 15.5 ft
Wheel Base 11.25 ft
Height - With ROPS/FOPS 10 ft
Overall Width 92 in
Centrifugal Force per Drum - Maximum 31069 lb
Centrifugal Force per Drum - Minimum 12409 lb
Maximum Amplitude 0.041 in
Minimum Amplitude 0.01 in
Maximum Frequency 2520 VPM
Minimum Frequency 2520 VPM
Vibration Selection
Fuel Tank Capacity 66 gal (US)
Water Spray Tank Capacity 264 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Vibratory System
  • Safety
