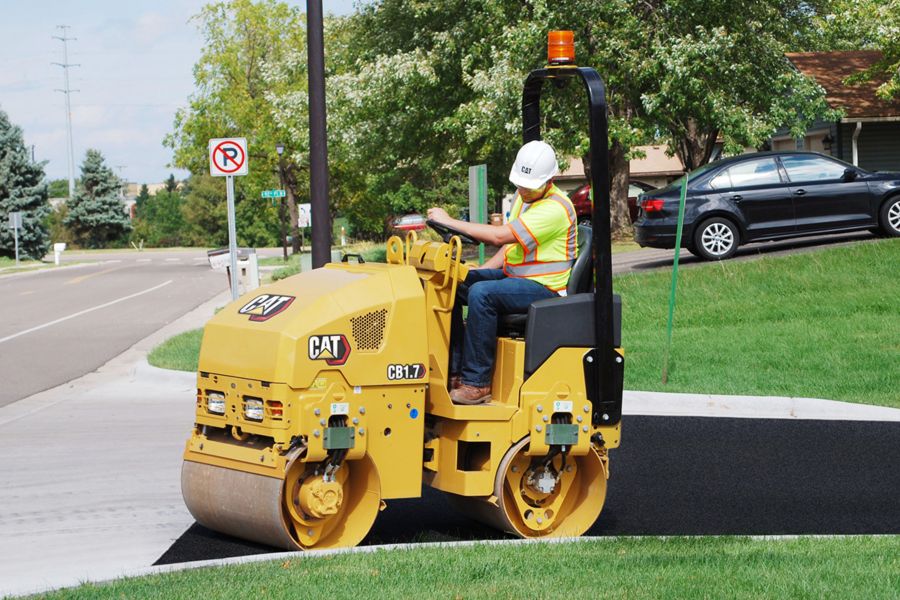

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.
The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.

Brochures and Spec Sheets

Gallery

CB1.7 CB1.7 CB1.7

Specifications

Specification Value Unit
Operating Weight 3538 lb
Standard Compaction Width 35 in
Curb Clearance 16 in
Ground Clearance 10 in
Travel Speed - Maximum 5.3 mile/h
Static Linear Load 72 lb/in
Engine Power (1) 24.7 hp
Engine Model
Overall Length 80 in
Overall Width 40 in
Maximum Machine Height 94.5 in
Drum Width 35 in
Drum Diameter 22.5 in
Frequency 3420 V/m
Nominal Amplitude - High 0.019 in
Centrifugal Force per Drum - Maximum 3057 lb
Fuel Tank Capacity 7.9 gal (US)
Water Spray Tank Capacity 38 gal (US)

Standard Equipment

  • Operator Environment
  • Compaction System
  • Powertrain
  • Technology
  • Electrical
  • Other

Optional Equipment

  • Operator Environment
  • Electrical
  • Other
