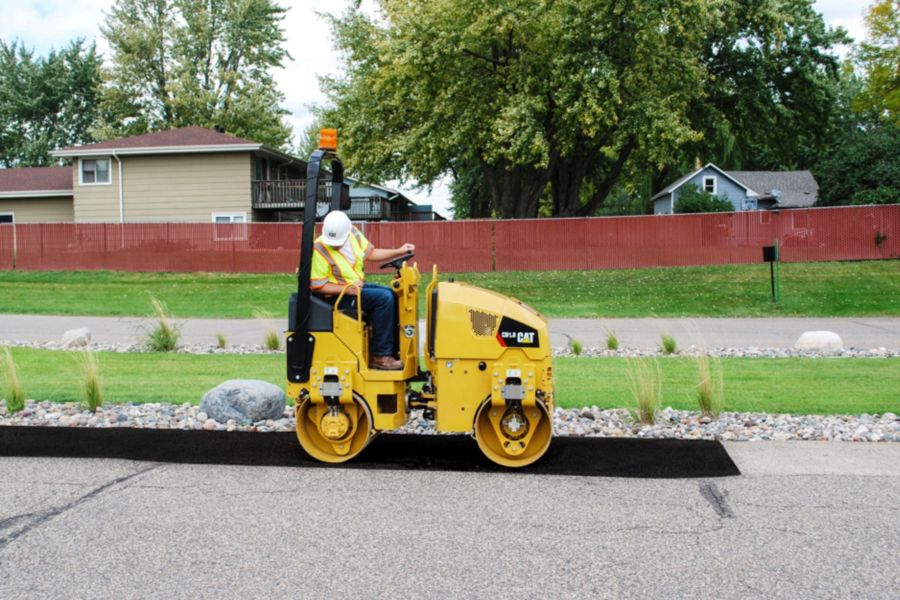

The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39 in) tandem vibratory drums.
The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39 in) tandem vibratory drums.

Brochures and Spec Sheets

Gallery

CB1.8 CB1.8 CB1.8 CB1.8

Specifications

Specification Value Unit
Operating Weight 3825 lb
Standard Compaction Width 39 in
Curb Clearance 16 in
Ground Clearance 10 in
Travel Speed - Maximum 5.3 mile/h
Static Linear Load 63 lb/in
Engine Power (1) 24.7 hp
Engine Model
Overall Length 80 in
Overall Width 44 in
Drum Diameter 22.5 in
Drum Width 39 in
Maximum Machine Height 94.5 in
Frequency 3420 V/m
Nominal Amplitude - High 0.018 in
Centrifugal Force per Drum - Maximum 3057 lb
Fuel Tank Capacity 7.9 gal (US)
Water Spray Tank Capacity 38 gal (US)
Turning Radius - Inside Drum Edge 75 in

Standard Equipment

  • Operator Environment
  • Compaction System
  • Powertrain
  • Technology
  • Electrical
  • Other

Optional Equipment

  • Operator Environment
  • Electrical
  • Other
