CB2.5

CB2.5
Cat
Request a Quote Find a Location

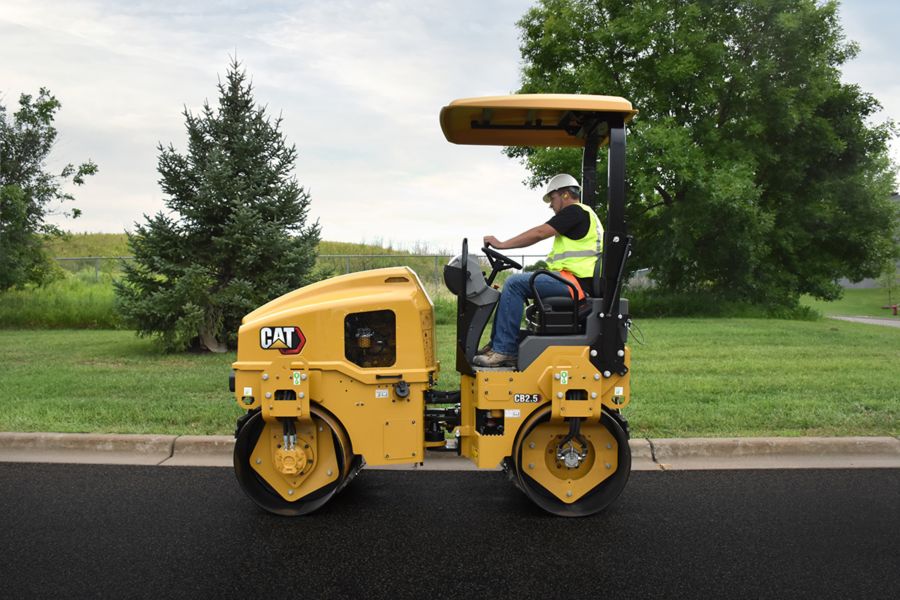

The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Brochures and Spec Sheets

Gallery

CB2.5 CB2.5 CB2.5 CB2.5

Specifications

Specification Value Unit
Standard Operating Weight with ROPS 5546 lb
Maximum Operating Weight with Cab 5546 lb
Static Linear Load 66.2 lb/in
Maximum Operating Weight with ROPS 6646 lb
Maximum Weight at Front Drum 2607 lb
Maximum Weight at Rear Drum 2939 lb
Compaction Width 39.4 in
Travel Speed - Maximum 7.5 mile/h
Turning Radius - Inside Drum Edge 103.9 in
Ground Clearance 11.2 in
Static Linear Load 66.2 lb/in
Static Linear Load - With Cab 74.7 lb/in
Turning Radius - Outside Drum Edge 143.3 in
Curb Clearance 17.8 in
Drum Offset 2 in
Engine Power (1) 48.2 hp
Engine Model
Overall Width 43.8 in
Drum Diameter 28.3 in
Overall Length 99.2 in
Drum Width 39.4 in
Wheel Base 70.9 in
Height - ROPS 106 in
Nominal Amplitude - High 0.02 in
Centrifugal Force - Maximum 6697 lb
Frequency 64 Hz
Fuel Tank Capacity 14.37 gal (US)
Water Spray Tank Capacity 52.8 gal (US)

Standard Equipment

  • OPERATOR ENVIRONMENT
  • COMPACTON SYSTEM
  • POWERTRAIN
  • TECHNOLOGY
  • ELECTRICAL
  • OTHER

Optional Equipment

  • OPERATOR ENVIRONMENT
  • COMPACTON SYSTEM
  • POWERTRAIN
  • TECHNOLOGY
  • ELECTRICAL
  • OTHER
