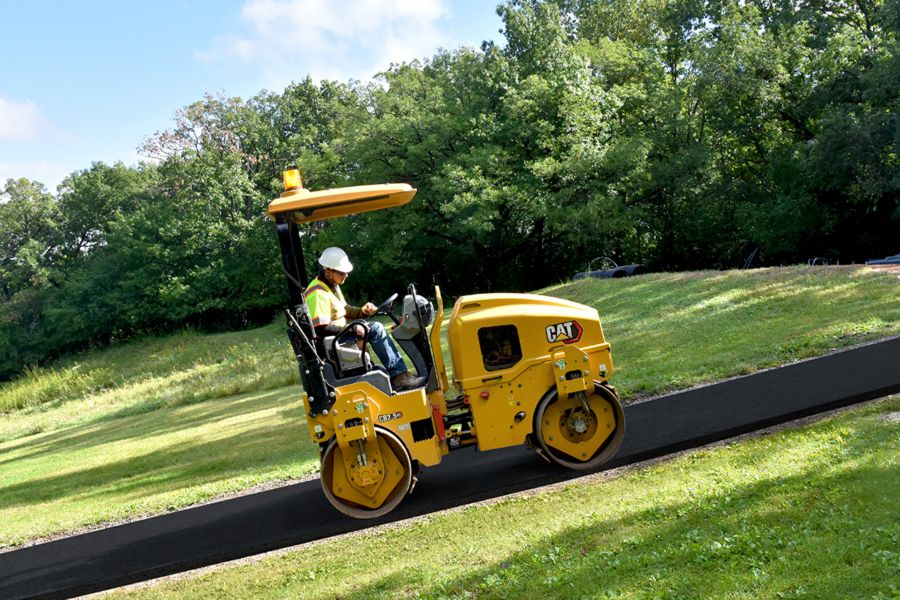

The Cat® CB2.5 GC Utility Compactor is a 2.5 metric ton machine with 1000 mm (39 in) drums. It is well suited for a variety of applications from asphalt to granular base applications. Simplicity, durability, and easy access to routine service points make these compactors an asset to contractors and rental houses.
The CB2.5 GC is a 2.5 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Brochures and Spec Sheets

Gallery

CB2.5 GC CB2.5 GC CB2.5 GC

Specifications

Specification Value Unit
Standard Operating Weight with ROPS 5546 lb
Maximum Operating Weight with ROPS 2607 lb
Maximum Weight at Front Drum 2607 lb
Maximum Weight at Rear Drum 2939 lb
Compaction Width 39.4 in
Travel Speed - Maximum 5.8 mile/h
Static Linear Load 66.2 lb/in
Turning Radius - Outside Drum Edge 143.3 in
Drum Offset 2 in
Curb Clearance 17.8 in
Ground Clearance 11.2 in
Turning Radius - Inside Drum Edge 103.9 in
Engine Power (1) 24.7 hp
Engine Model
Wheel Base 70.9 in
Overall Width 43.8 in
Drum Width 39.4 in
Height - ROPS 102.2 in
Overall Length 102.2 in
Drum Diameter 28.3 in
Nominal Amplitude - High 0.02 in
Centrifugal Force - Maximum 5885.3 lb
Frequency 62 Hz
Water Spray Tank Capacity 52.8 gal (US)
Fuel Tank Capacity 14.37 gal (US)

Standard Equipment

  • OPERATOR ENVIRONMENT
  • COMPACTON SYSTEM
  • POWERTRAIN
  • TECHNOLOGY
  • ELECTRICAL
  • OTHER

Optional Equipment

  • OPERATOR ENVIRONMENT
  • COMPACTON SYSTEM
  • POWERTRAIN
  • TECHNOLOGY
  • ELECTRICAL
  • OTHER
