CB2.7 GC

CB2.7 GC
Cat
Request a Quote Find a Location

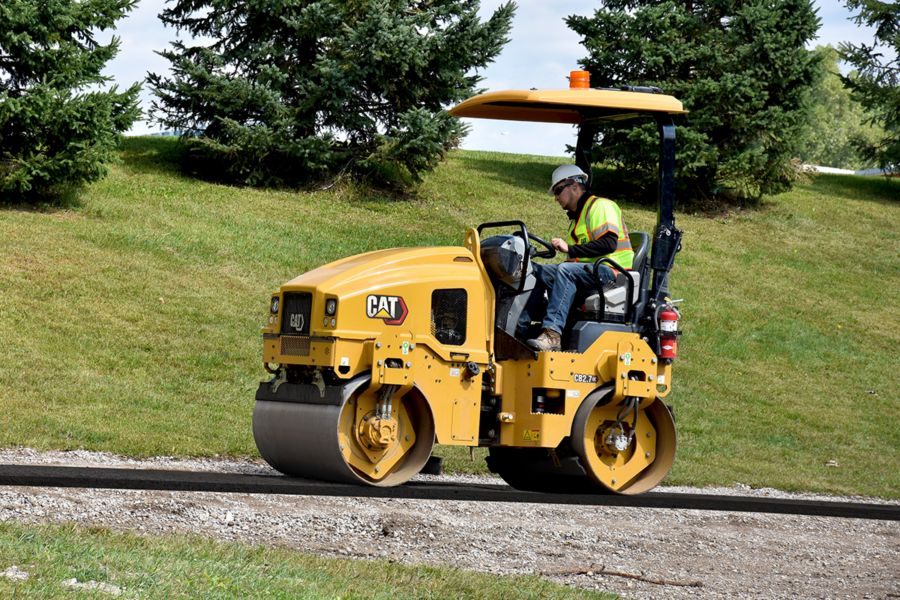

The Cat®CB2.7 GC is a 2.7 metric ton machine with 1200 mm (47 in) drums. It is well suited for a variety of applications from asphalt to granular base applications. Simplicity, durability, and easy access to routine service points make these compactors an asset to contractors and rental houses.
The CB2.7 GC is a 2.7 metric ton machine with 1200 mm (47 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Brochures and Spec Sheets

Gallery

CB2.7 GC CB2.7 GC CB2.7 GC CB2.7 GC CB2.7 GC CB2.7 GC

Specifications

Specification Value Unit
Standard Operating Weight with ROPS 5936 lb
Maximum Operating Weight with ROPS 7036 lb
Maximum Weight at Rear Drum 3075 lb
Maximum Weight at Front Drum 2861 lb
Compaction Width 47.2 in
Curb Clearance 17.8 in
Drum Offset 2 in
Ground Clearance 11.2 in
Static Linear Load 66.2 lb/in
Travel Speed - Maximum 5.8 mile/h
Turning Radius - Inside Drum Edge 100 in
Turning Radius - Outside Drum Edge 147.2 in
Engine Power (1) 24.7 hp
Engine Model
Drum Diameter 28.3 in
Drum Width 47.2 in
Height - ROPS 102.2 in
Overall Length 102.2 in
Overall Width 51.7 in
Wheel Base 70.9 in
Centrifugal Force - Maximum 6968.8 lb
Nominal Amplitude - High 0.02 in
Water Spray Tank Capacity 52.8 gal (US)
Fuel Tank Capacity 14.37 gal (US)

Standard Equipment

  • OPERATOR ENVIRONMENT
  • COMPACTON SYSTEM
  • POWERTRAIN
  • TECHNOLOGY
  • ELECTRICAL
  • OTHER

Optional Equipment

  • OPERATOR ENVIRONMENT
  • COMPACTON SYSTEM
  • POWERTRAIN
  • TECHNOLOGY
  • ELECTRICAL
  • OTHER
