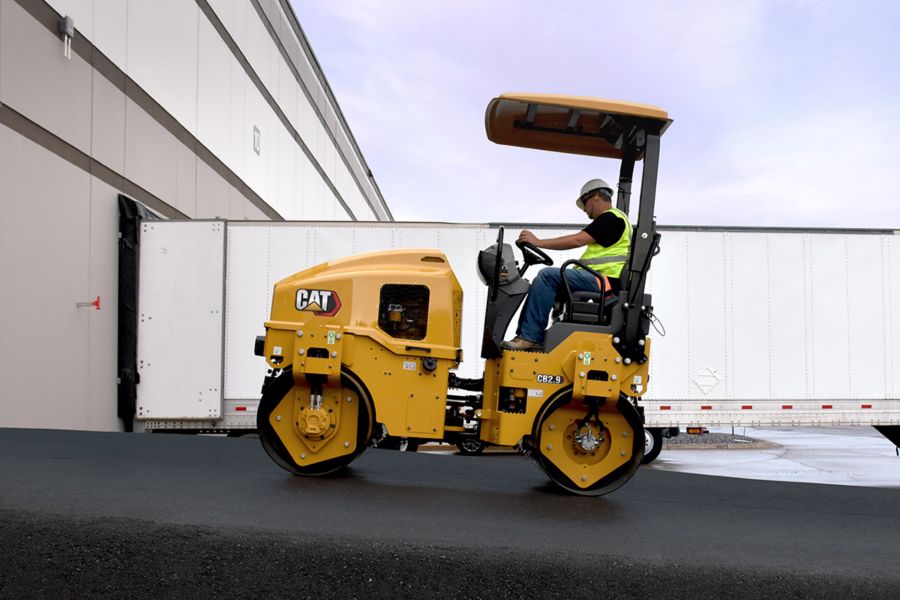

CB2.9

Cat

The CB2.9 is a 2.9 to 3 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standard Operating Weight with ROPS	6415	lb
Maximum Weight at Front Drum	3060	lb
Maximum Operating Weight with ROPS	6415	lb
Maximum Operating Weight with Cab	6415	lb
Maximum Weight at Rear Drum	3355	lb
Static Linear Load	59.8	lb/in
Compaction Width	51.2	in
Static Linear Load	59.8	lb/in
Turning Radius - Inside Drum Edge	98	in
Travel Speed - Maximum	7.5	mile/h
Ground Clearance	11.2	in
Turning Radius - Outside Drum Edge	149.2	in
Curb Clearance	17.8	in
Drum Offset	2	in
Engine Power (1)	48.2	hp
Engine Model
Drum Diameter	28.3	in
Overall Length	99.2	kg/cm
Wheel Base	70.9	in
Overall Width	55.6	in
Height - ROPS	70.8	in
Drum Width	51.2	in
Frequency	3840	VPM
Nominal Amplitude - High	0.02	in
Centrifugal Force - Maximum	8109	lb/ft
Water Spray Tank Capacity	52.8	gal (US)
Fuel Tank Capacity	14.37	gal (US)
Speed Range

Standard Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
