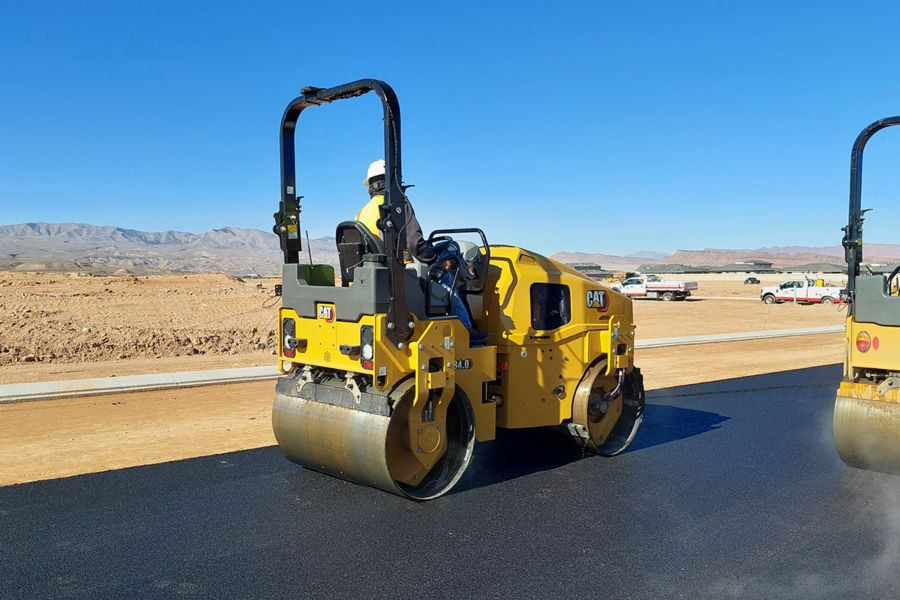

CB4.0

Cat

The CB4.0 is a 3-5 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standard Operating Weight with ROPS	7971	lb
Maximum Operating Weight with ROPS	9493	lb
Static Linear Load	59.8	lb/in
Operating Weight - At Front Drum with ROPS/FOPS	3837	lb
Operating Weight - At Rear Drum with ROPS/FOPS	4134	lb
Compaction Width	51.2	in
Overall Length	112.3	kg/cm
Overall Width	55.1	in
Drum Offset	2	in
Drum Width	51.2	in
Curb Clearance	19.6	in
Drum Diameter	31.5	in
Ground Clearance	11.2	in
Travel Speed - Maximum	8.1	mile/h
Wheel Base	80.7	in
Turning Radius - Inside Drum Edge	115.2	in
Height - ROPS	104.7	in
Turning Radius - Outside Drum Edge	166.4	in
Engine Power (1)	36	kW
Engine Model
Frequency
Nominal Amplitude - High	0.02	in
Centrifugal Force - Maximum	7524	lb/ft
Fuel Tank Capacity	21.43	gal (US)
Water Spray Tank Capacity	79	gal (US)

Standard Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
