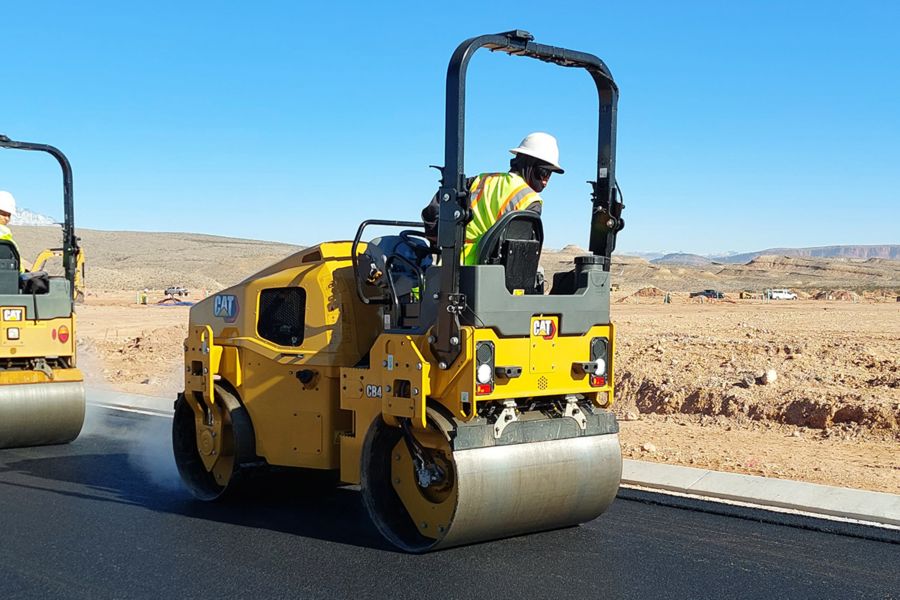

CB4.4

Cat

The CB4.4 is a 3-5 metric ton compactor with 1400 mm (55 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standard Operating Weight with ROPS	8362	lb
Maximum Weight at Rear Drum	4380	lb
Maximum Weight at Front Drum	3982	lb
Maximum Operating Weight with ROPS	9885	lb
Static Linear Load	72.2	lb/in
Compaction Width	55.1	in
Overall Length	112.3	in
Overall Width	59.1	in
Drum Width	55.1	in
Drum Diameter	31.5	in
Wheel Base	80.7	in
Height - ROPS	104.7	in
Engine Power (1)	48.2	hp
Engine Model
Standard Compaction Width	55.1	in
Drum Offset	2	in
Curb Clearance	19.6	in
Ground Clearance	11.2	in
Travel Speed - Maximum	8.1	mile/h
Turning Radius - Inside Drum Edge	113.2	in
Turning Radius - Outside Drum Edge	168.3	in
Frequency
Nominal Amplitude - High	0.019	in
Centrifugal Force - Maximum	7828	lb/ft
Fuel Tank Capacity	21.43	gal (US)
Water Spray Tank Capacity	79	gal (US)

Standard Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
COMPACTON SYSTEM
POWERTRAIN
TECHNOLOGY
ELECTRICAL
OTHER
