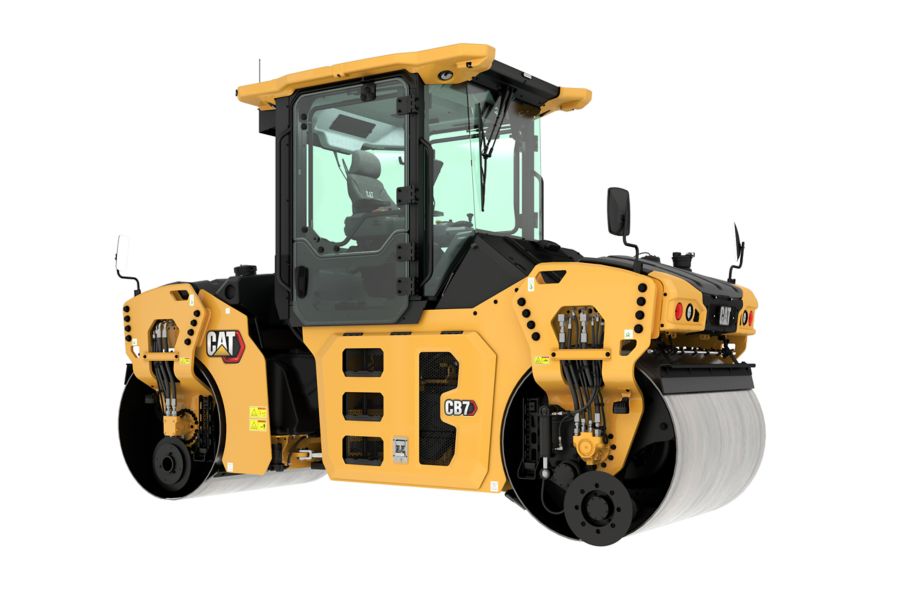

The Cat® CB7 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
The Cat® CB7 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.

Brochures and Spec Sheets

Gallery

CB7 CB7 CB7 CB7 CB7

Specifications

Specification Value Unit
Operating Weight - With Cab 19,588 lb
Maximum Operating Weight with Cab 20,404 lb
Standard Operating Weight with ROPS 19,015 lb
Maximum Operating Weight with ROPS 19,834 lb
Standard Compaction Width 59 in
Maximum Compaction Width 65 in
Static Linear Load - With Cab 172 lb/in
Static Linear Load - With ROPS/FOPS 168 lb/in
Travel Speed - Maximum 7 mile/h
Overall Length 179 in
Overall Width 78 in
Height - With ROPS/FOPS or Cab 118 in
Wheel Base 130 in
Drum Diameter 44 in
Engine Model
Engine Power (1) 100 hp
Drum Width 59 in
Centrifugal Force per Drum - Maximum 17,602 lb
Centrifugal Force per Drum - Minimum 11,982 lb
Nominal Amplitude - High 0.026 in
Nominal Amplitude - Low 0.012 in
Vibration Selection
Fuel Tank Capacity 36 gal (US)
Water Spray Tank Capacity 195 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Vibratory System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Vibratory System
  • Service and Maintenance
  • Safety
