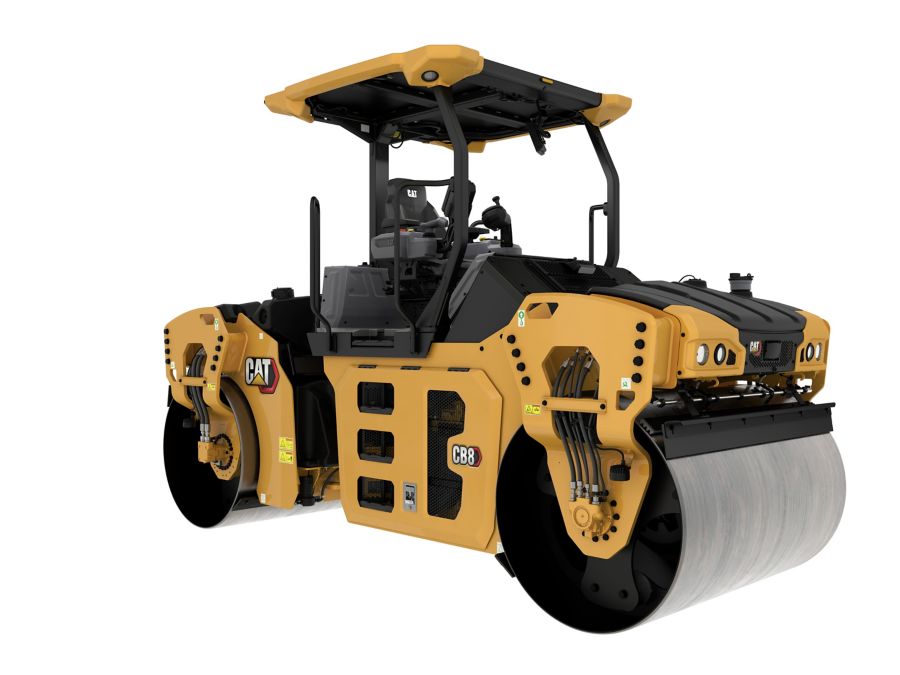

The Cat® CB8 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
The Cat® CB8 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.

Brochures and Spec Sheets

Gallery

CB8 CB8 CB8 CB8 CB8

Specifications

Specification Value Unit
Operating Weight - With Cab 20,580 lb
Maximum Operating Weight with Cab 21,396 lb
Standard Operating Weight with ROPS 20,006 lb
Maximum Operating Weight with ROPS 20,822 lb
Standard Compaction Width 67 in
Maximum Compaction Width 73 in
Static Linear Load - With Cab 159 lb/in
Static Linear Load - With ROPS/FOPS 155 lb/in
Travel Speed - Maximum 7 mile/h
Overall Length 179 in
Overall Width 78 in
Height - With ROPS/FOPS or Cab 118 in
Wheel Base 130 in
Drum Diameter 44 in
Engine Model
Engine Power (1) 100 hp
Drum Width 67 in
Centrifugal Force per Drum - Maximum 17,018 lb
Centrifugal Force per Drum - Minimum 11,285 lb
Nominal Amplitude - High 0.026 in
Nominal Amplitude - Low 0.012 in
Vibration Selection
Fuel Tank Capacity 36 gal (US)
Water Spray Tank Capacity 195 gal (US)

Standard Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Electrical System
  • Vibratory System
  • Service and Maintenance
  • Safety

Optional Equipment

  • Operating Environment
  • Technology
  • Powertrain
  • Vibratory System
  • Service and Maintenance
  • Safety
