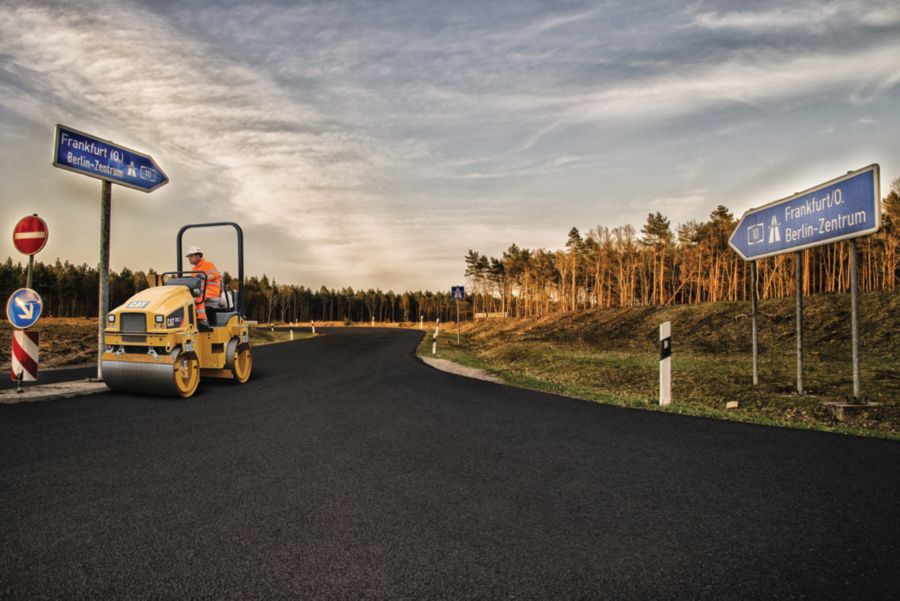

CC4.0

Cat

The CC4.0 is a 3-5 metric ton compactor with 1300 mm (51 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Standard Operating Weight with ROPS	7889	lb
Maximum Weight at Front Drum	3918	lb
Maximum Weight at Rear Drum	3971	lb
Maximum Operating Weight with ROPS	3936	lb
Static Linear Load	76.6	lb/in
Compaction Width	51.2	in
Standard Compaction Width	51.2	in
Overall Length	112.3	in
Overall Width	55.1	in
Drum Offset	2	in
Drum Width	51.2	in
Curb Clearance	19.6	in
Drum Diameter	31.5	in
Ground Clearance	11.2	in
Travel Speed - Maximum	7.5	mile/h
Wheel Base	80.7	in
Turning Radius - Inside Drum Edge	115.2	in
Height - ROPS	104.7	in
Turning Radius - Outside Drum Edge	166.4	in
Static Linear Load	59.8	lb/in
Engine Power (1)	48.2	hp
Engine Model
Frequency
Frequency	3300	VPM
Nominal Amplitude - High	0.02	in
Centrifugal Force - Maximum	7524	lb/ft
Fuel Tank Capacity	21.43	gal (US)
Water Spray Tank Capacity	61	gal (US)
Tire Spray Tank Capacity	9.2	gal (US)
