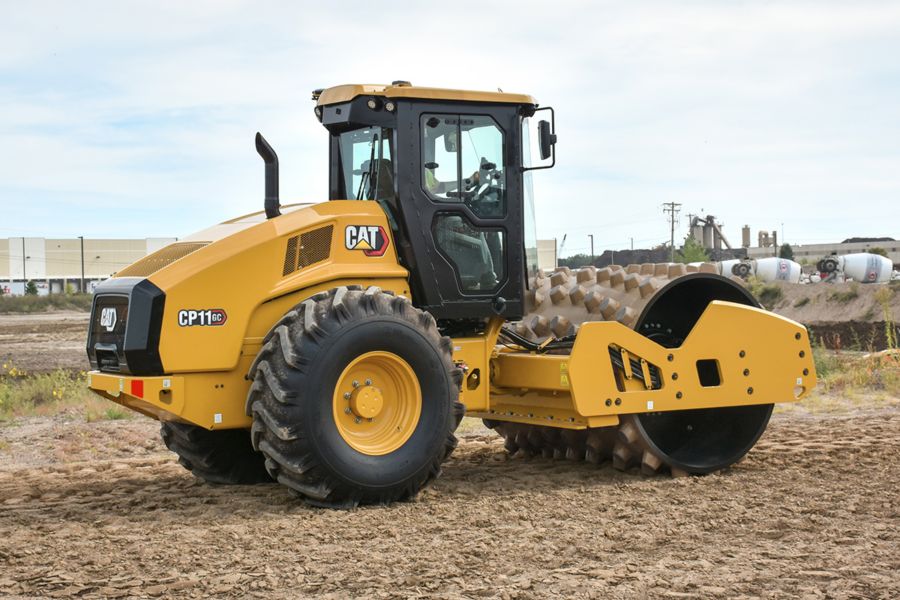

CP11 GC

Cat

The Cat® CP11 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CP11 GC padfoot roller is ideally suited for cohesive and semi-cohesive soil applications.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	122.9	hp
Engine Power - ISO 14396	121	hp
Net Power - ISO 9249	112.2	hp
Net Power - SAE J1349:2011	111.2	hp
Note (1)
Engine Model
Emissions
Stroke	4.7	in
Bore	3.9	in
Operating Weight - With Cab	25109	lb
Operating Weight - With ROPS/FOPS Canopy	24769	lb
Weight - Drum with Cab	14084	lb
Weight - Drum with ROPS/FOPS Canopy	13988	lb
Note (1)
Nominal Amplitude - High	0.071	in
Nominal Amplitude - Low	0.035	in
Centrifugal Force - Maximum	55932	lb
Centrifugal Force - Minimum	33249	lb
Compaction Width	84	in
Overall Length	18.7	ft
Overall Width	7.5	ft
Maximum Height	9.8	ft
Drum Diameter - Over Pads	60.9	in
Wheel Base	9.8	ft
Ground Clearance	20.3	in
Curb Clearance	19.5	in
Turning Radius - Inside Drum Edge	12.7	ft
Travel Speed - Maximum	6.8	mile/h
Fuel Tank Capacity	56.3	gal (US)
DEF Tank	5	gal (US)
Cooling System	4.9	gal (US)
Engine Oil - With Filter	3.1	gal (US)
Eccentric Weight Housings (combined)	6.9	gal (US)
Axle and Final Drives	2.6	gal (US)
Hydraulic Tank	6.1	gal (US)
Recyclability

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
ELECTRICAL
OTHER

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
TECHNOLOGY SOLUTIONS
POWERTRAIN
OTHER
