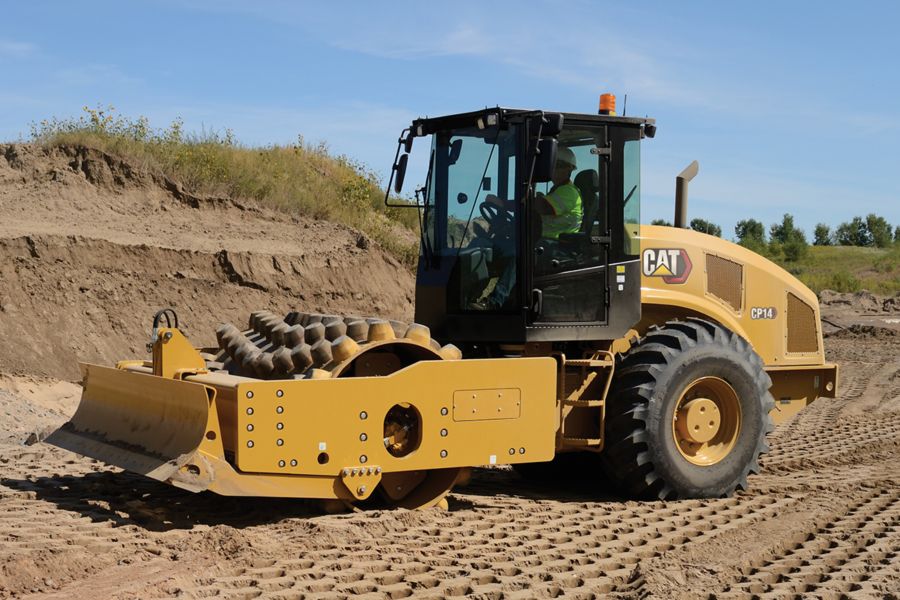

The Cat® CP14 Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
The Cat® CP14 Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Brochures and Spec Sheets

Gallery

CP14 CP14 CP14 CP14

Specifications

Specification Value Unit
Gross Power 159 hp
Engine Power - ISO 14396 156.9 hp
Net Power - ISO 9249 131.6 hp
Net Power - SAE J1349:2011 129.9 hp
Note (1)
Engine Model
Emissions
Stroke 5 in
Bore 4.1 in
Operating Weight - With Cab 32203 lb
Weight - Drum with Cab 20216 lb
Note (1)
Vibratory Frequency - Standard 1830 VPM
Variable Frequency Option Range
Nominal Amplitude - High 0.083 in
Nominal Amplitude - Low 0.039 in
Centrifugal Force - Maximum 67653 lb
Centrifugal Force - Minimum 31680 lb
Compaction Width 84 in
Overall Length 19.8 ft
Overall Length - With Blade Option 21.5 ft
Overall Width 7.7 ft
Overall Width - With Blade Option 8.2 ft
Maximum Height 10.2 ft
Drum Diameter - Over Pads 61 in
Optional Blade Height 26.9 in
Wheel Base 9.5 ft
Ground Clearance 17.1 in
Curb Clearance 19.6 in
Turning Radius - Inside Drum Edge 12.1 ft
Travel Speed - Maximum 7.1 mile/h
Fuel Tank Capacity 69.7 gal (US)
DEF Tank 5 gal (US)
Cooling System 8.3 gal (US)
Engine Oil - With Filter 3.1 gal (US)
Eccentric Weight Housings (combined) 6.9 gal (US)
Axle and Final Drives 4.8 gal (US)
Hydraulic Tank 13.2 gal (US)
Recyclability

Standard Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • VIBRATORY SYSTEM
  • TECHNOLOGY SOLUTIONS
  • POWERTRAIN
  • ELECTRICAL
  • OTHER

Optional Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • VIBRATORY SYSTEM
  • TECHNOLOGY SOLUTIONS
  • POWERTRAIN
  • OTHER
