CP16

Cat

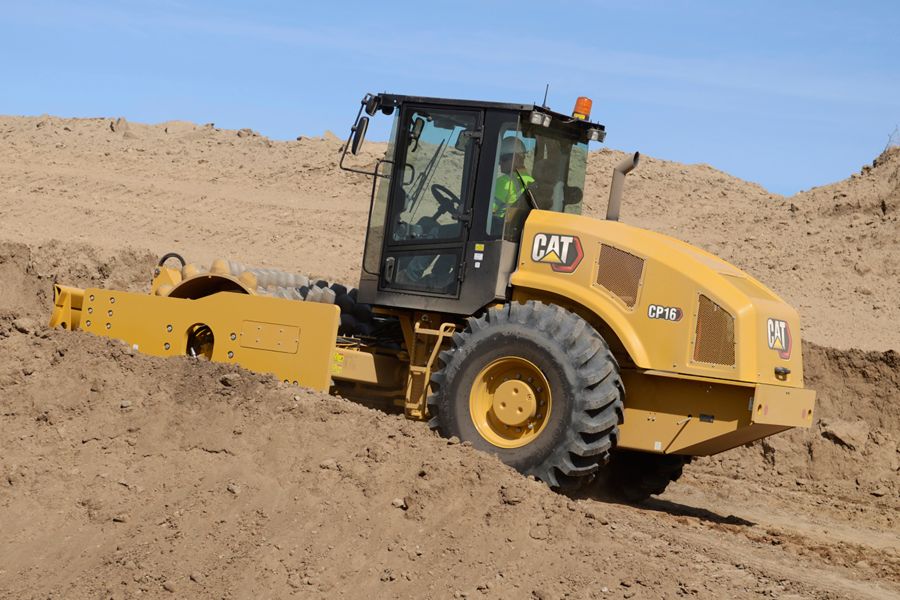

The Cat® CP16 Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	175.7	hp
Engine Power - ISO 14396	173.5	hp
Net Power - ISO 9249	147.1	hp
Net Power - SAE J1349:2011	145.2	hp
Note (1)
Engine Model
Emissions
Stroke	5	in
Bore	4.1	in
Operating Weight - With Cab	36390	lb
Weight - Drum with Cab	23464	lb
Note (1)
Vibratory Frequency - Standard	1680	VPM
Variable Frequency Option Range
Nominal Amplitude - High	0.083	in
Nominal Amplitude - Low	0.039	in
Centrifugal Force - Maximum	75234	lb
Centrifugal Force - Minimum	35163	lb
Compaction Width	84	in
Overall Length	19.8	ft
Overall Length - With Blade Option	21.5	ft
Overall Width	7.7	ft
Overall Width - With Blade Option	8.2	ft
Maximum Height	10.2	ft
Drum Diameter - Over Pads	61	in
Optional Blade Height	26.9	in
Wheel Base	9.5	ft
Ground Clearance	17.2	in
Curb Clearance	19.6	in
Turning Radius - Inside Drum Edge	12.1	ft
Travel Speed - Maximum	7.1	mile/h
Fuel Tank Capacity	81.1	gal (US)
DEF Tank	5	gal (US)
Cooling System	7.4	gal (US)
Engine Oil - With Filter	3.1	gal (US)
Eccentric Weight Housings (combined)	6.9	gal (US)
Axle and Final Drives	6.3	gal (US)
Hydraulic Tank	13.2	gal (US)
Recyclability

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
ELECTRICAL
OTHER

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
OTHER
