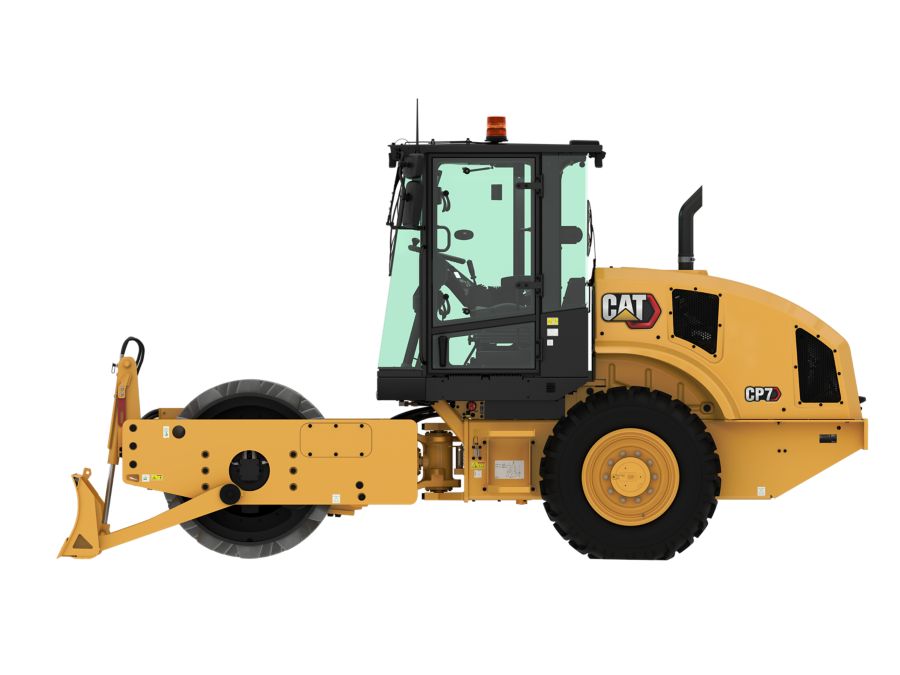

CP7

Cat

The Cat® CP7 padfoot drum vibratory soil compactor continues a legacy of built-in quality and reliability. This 7-metric ton sheepsfoot roller is ideal for trenching, utility work and smaller infrastructure projects on cohesive and semi-cohesive soils.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	99.8	hp
Engine Power - ISO 14396	99.8	hp
Net Power - ISO 9249	94.1	hp
Net Power - SAE J1349:2011	94.1	hp
Note (1)
Note (2)
Engine Model
Emissions
Stroke	4.7	in
Bore	3.9	in
Build Number
Vibratory Frequency - Standard	1915	VPM
Variable Frequency Option Range
Nominal Amplitude - High	0.061	in
Nominal Amplitude - Low	0.031	in
Centrifugal Force - Maximum	29991	lb
Centrifugal Force - Minimum	15057	lb
Operating Weight - With Cab	16810	lb
Operating Weight - With ROPS/FOPS Canopy	16182	lb
Weight - Drum with Cab	8179	lb
Weight - Drum with ROPS/FOPS Canopy	7970	lb
Note (1)
Compaction Width	66	in
Overall Length	16.7	ft
Overall Length - With Blade Option	18.4	ft
Overall Width	70.9	in
Overall Width - With Blade Option	83.5	in
Maximum Height	9.3	ft
Drum Diameter	48.1	in
Wheel Base	8.5	ft
Optional Blade Height	22.9	in
Travel Speed - Maximum	7.1	mile/h
Ground Clearance	15.2	in
Curb Clearance	14.6	in
Turning Radius - Inside Drum Edge	10	ft
Fuel Tank Capacity	37	gal (US)
DEF Tank	2.4	gal (US)
Cooling System	4.8	gal (US)
Engine Oil - With Filter	2.8	gal (US)
Eccentric Weight Housings (combined)	3.4	gal (US)
Axle and Final Drives	3.9	gal (US)
Hydraulic Tank	6.9	gal (US)
Recyclability

Standard Equipment

OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
POWER TRAIN
ELECTRICAL
TECHNOLOGY
SAFETY
OTHER

Optional Equipment

OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
POWER TRAIN
OTHER
