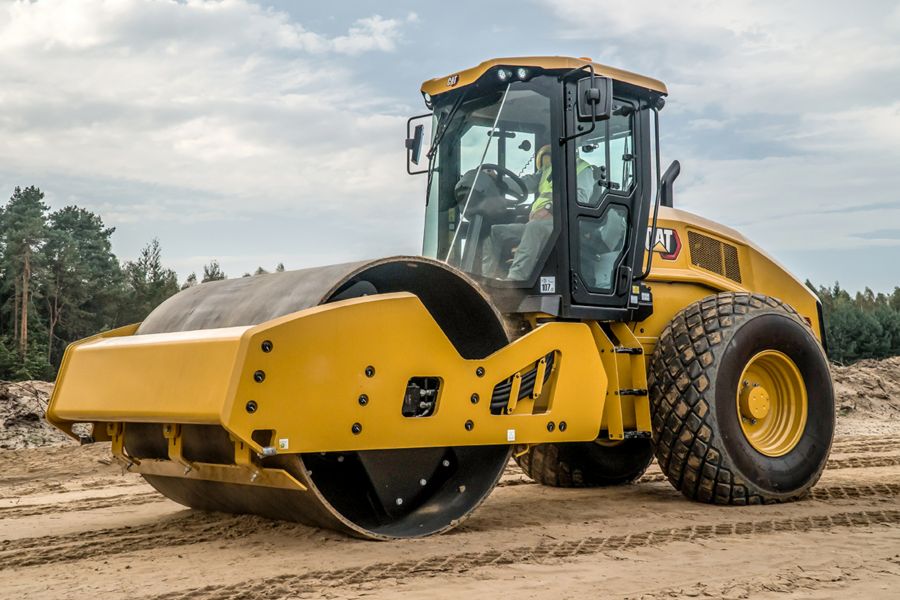

CS10 GC

Cat

The Cat® CS10 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS10 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	122.9	hp
Engine Power - ISO 14396	121	hp
Net Power - ISO 9249	112.2	hp
Net Power - SAE J1349:2011	111.2	hp
Note (1)
Engine Model
Emissions
Stroke	4.7	in
Bore	3.9	in
Operating Weight - With Cab	23136	lb
Operating Weight - With ROPS/FOPS Canopy	22796	lb
Weight - Drum with Cab	12948	lb
Weight - Drum with ROPS/FOPS Canopy	12853	lb
Note (1)
Nominal Amplitude - High	0.079	in
Nominal Amplitude - Low	0.039	in
Centrifugal Force - Maximum	56200	lb
Centrifugal Force - Minimum	33500	lb
Static Linear Load - With Cab	154.1	lb/in
Static Linear Load - With ROPS/FOPS Canopy	153	lb/in
Compaction Width	84	in
Overall Length	18.7	ft
Overall Width	7.5	ft
Maximum Height	9.9	ft
Drum Diameter	60.4	in
Wheel Base	9.8	ft
Ground Clearance	20.4	in
Curb Clearance	19.4	in
Turning Radius - Inside Drum Edge	12.7	ft
Travel Speed - Maximum	6.8	mile/h
Fuel Tank Capacity	56.3	gal (US)
DEF Tank	5	gal (US)
Cooling System	4.9	gal (US)
Engine Oil - With Filter	3.1	gal (US)
Eccentric Weight Housings (combined)	6.9	gal (US)
Axle and Final Drives	2.6	gal (US)
Hydraulic Tank	6.1	gal (US)
Recyclability

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
ELECTRICAL
OTHER

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
OTHER
