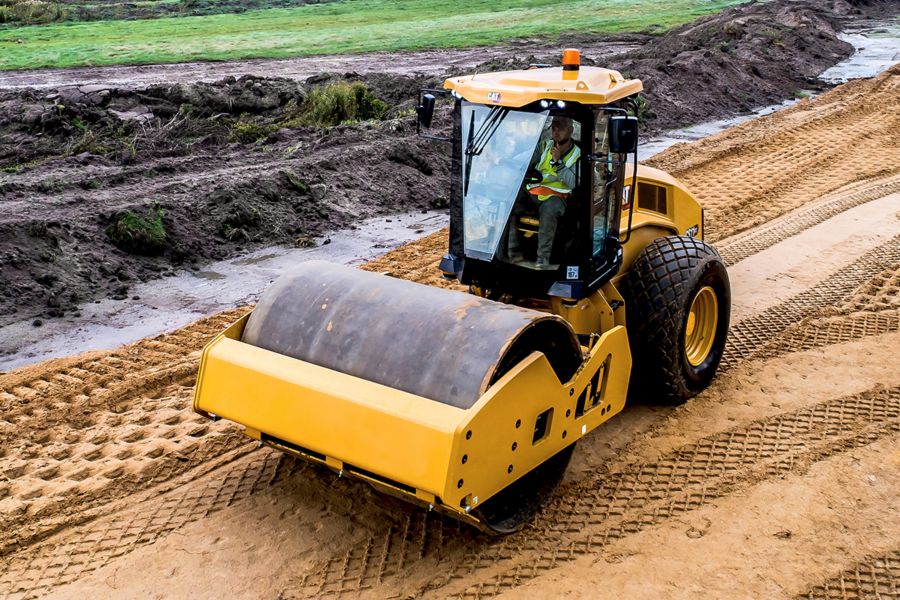

The Cat® CS11 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS11 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.
The Cat® CS11 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CS11 GC smooth drum roller is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit.

Brochures and Spec Sheets

Gallery

CS11 GC CS11 GC CS11 GC CS11 GC CS11 GC CS11 GC CS11 GC CS11 GC

Specifications

Specification Value Unit
Gross Power 122.9 hp
Engine Power - ISO 14396 120.7 hp
Net Power - ISO 9249 112.2 hp
Net Power - SAE J1349:2011 111.2 hp
Note (1)
Engine Model
Emissions
Stroke 4.7 in
Bore 3.9 in
Operating Weight - With Cab 24775 lb
Operating Weight - With ROPS/FOPS Canopy 24435 lb
Weight - Drum with Cab 13549 lb
Weight - Drum with ROPS/FOPS Canopy 13453 lb
Note (1)
Nominal Amplitude - High 0.079 in
Nominal Amplitude - Low 0.039 in
Centrifugal Force - Maximum 56200 lb
Centrifugal Force - Minimum 33500 lb
Static Linear Load - With Cab 161.3 lb/in
Static Linear Load - With ROPS/FOPS Canopy 160.1 lb/in
Compaction Width 84 in
Overall Length 18.7 ft
Overall Width 7.5 ft
Maximum Height 9.9 ft
Drum Diameter 60.4 in
Wheel Base 9.8 ft
Ground Clearance 20.4 in
Curb Clearance 19.4 in
Turning Radius - Inside Drum Edge 12.7 ft
Travel Speed - Maximum 6.8 mile/h
Fuel Tank Capacity 56.3 gal (US)
DEF Tank 5 gal (US)
Cooling System 4.9 gal (US)
Engine Oil - With Filter 3.1 gal (US)
Eccentric Weight Housings (combined) 6.9 gal (US)
Axle and Final Drives 2.6 gal (US)
Hydraulic Tank 6.1 gal (US)
Recyclability
Drum Width 84 in

Standard Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • VIBRATORY SYSTEM
  • TECHNOLOGY SOLUTIONS
  • POWERTRAIN
  • ELECTRICAL
  • OTHER

Optional Equipment

  • NOTE
  • OPERATOR ENVIRONMENT
  • VIBRATORY SYSTEM
  • TECHNOLOGY SOLUTIONS
  • POWERTRAIN
  • OTHER
