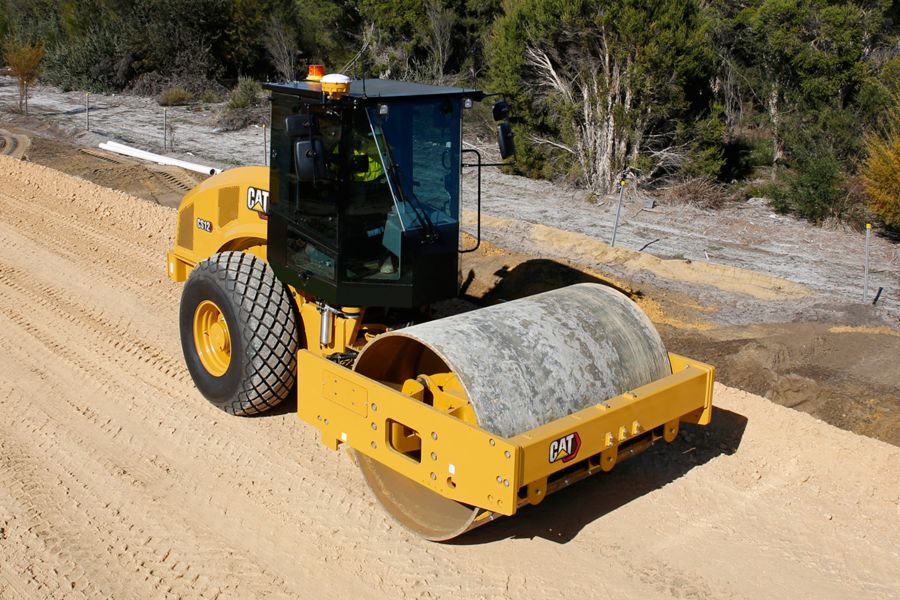

CS12

Cat

The Cat® CS12 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	159	hp
Engine Power - ISO 14396	156.9	hp
Net Power - ISO 9249	131.6	hp
Net Power - SAE J1349:2011	129.9	hp
Note (1)
Engine Model
Emissions
Stroke	5	in
Bore	4.1	in
Operating Weight - With Cab	25353	lb
Operating Weight - With ROPS/FOPS Canopy	24890	lb
Weight - Drum with Cab	13999	lb
Weight - Drum with ROPS/FOPS Canopy	13790	lb
Note (1)
Vibratory Frequency - Standard	1830	VPM
Variable Frequency Option Range
Nominal Amplitude - High	0.083	in
Nominal Amplitude - Low	0.039	in
Centrifugal Force - Maximum	67653	lb
Centrifugal Force - Minimum	31680	lb
Static Linear Load - With Cab	166.6	lb/in
Static Linear Load - With ROPS/FOPS Canopy	164.2	lb/in
Compaction Width	84	in
Overall Length	19.2	ft
Overall Length - With Blade Option	21	ft
Overall Width	7.5	ft
Overall Width - With Blade Option	8.2	ft
Maximum Height	10.2	ft
Drum Diameter	60.4	in
Optional Blade Height	26.9	in
Wheel Base	9.5	ft
Ground Clearance	17	in
Curb Clearance	19.4	in
Turning Radius - Inside Drum Edge	12.1	ft
Travel Speed - Maximum	7.1	mile/h
Fuel Tank Capacity	69.7	gal (US)
DEF Tank	5	gal (US)
Cooling System	8.3	gal (US)
Engine Oil - With Filter	3.1	gal (US)
Eccentric Weight Housings (combined)	6.9	gal (US)
Axle and Final Drives	4.8	gal (US)
Hydraulic Tank	13.2	gal (US)
Recyclability

Standard Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
ELECTRICAL
OTHER

Optional Equipment

NOTE
OPERATOR ENVIRONMENT
VIBRATORY SYSTEM
TECHNOLOGY SOLUTIONS
POWERTRAIN
OTHER
