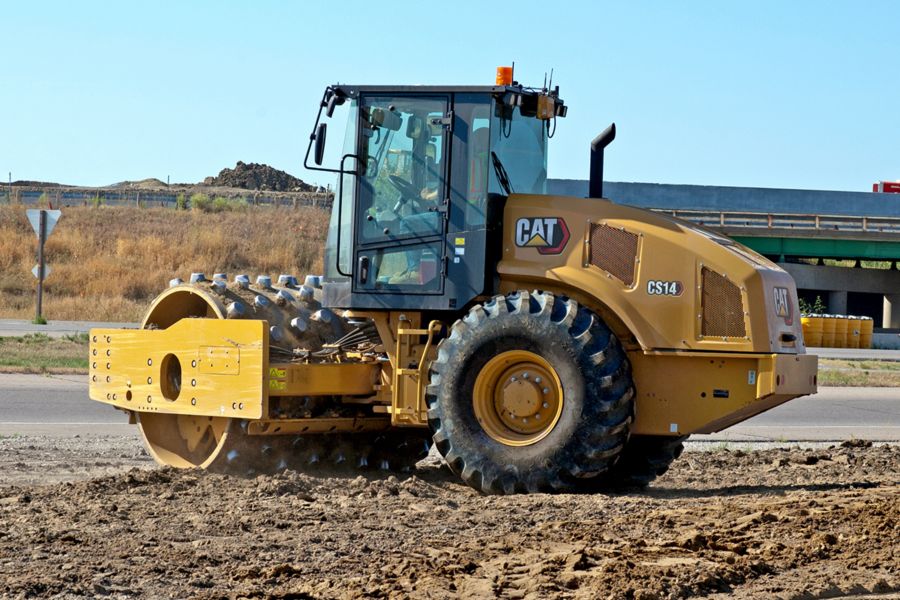

The Cat® CS14 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Gross Power	159	hp
Engine Power - ISO 14396	156.9	hp
Net Power - ISO 9249	131.6	hp
Net Power - SAE J1349:2011	129.9	hp
Note (1)
Engine Model
Emissions
Stroke	5	in
Bore	4.1	in
Operating Weight - With Cab	31405	lb
Weight - Drum with Cab	19994	lb
Note (1)
Variable Frequency Option Range
Nominal Amplitude - High	0.083	in
Nominal Amplitude - Low	0.039	in
Centrifugal Force - Maximum	67653	lb
Centrifugal Force - Minimum	31680	lb
Static Linear Load - With Cab	238	lb/in
Compaction Width	84	in
Overall Length	19.8	ft
Overall Length - With Blade Option	21.5	ft
Overall Width	7.7	ft
Overall Width - With Blade Option	8.2	ft
Maximum Height	10.2	ft
Drum Diameter	60.4	in
Optional Blade Height	26.9	in
Wheel Base	9.5	ft
Ground Clearance	16.8	in
Curb Clearance	19.3	in
Turning Radius - Inside Drum Edge	12.1	ft
Travel Speed - Maximum	7.1	mile/h
Fuel Tank Capacity	69.7	gal (US)
DEF Tank	5	gal (US)
Cooling System	8.3	gal (US)
Engine Oil - With Filter	3.1	gal (US)
Eccentric Weight Housings (combined)	6.9	gal (US)
Axle and Final Drives	4.8	gal (US)
Hydraulic Tank	13.2	gal (US)
