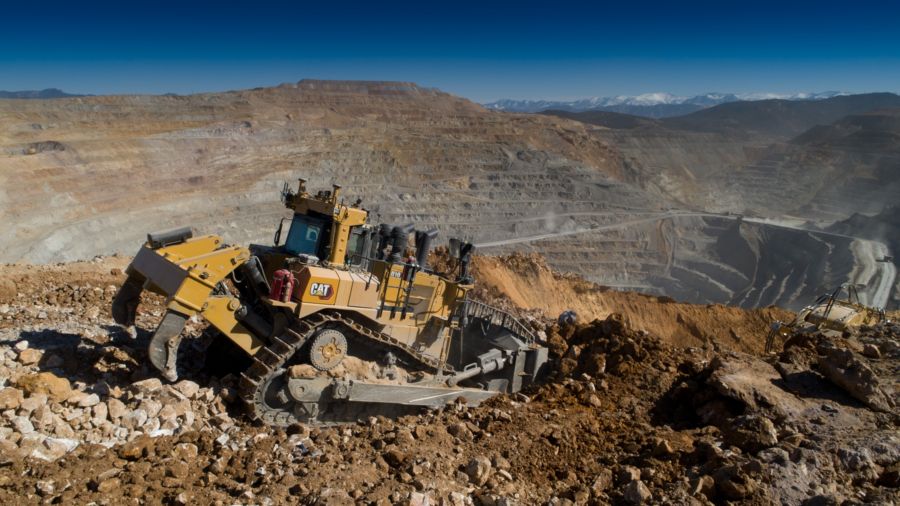

D10

Caterpillar

The Cat^® D10 Dozer is innovative by design — developed by a team of experts who follow a design approach that incorporates feedback from the field with industry-leading technologies to deliver a dozer that continues to advance with every model. The new D10 is no exception. It’s more efficient, so it burns less fuel. It’s more serviceable, so you’ll experience less downtime. It’s more durable, so you’ll spend less over its lifetime. And it’s more productive — so you’ll spend less time putting more profitability to your bottom line.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Engine Model
Engine Power - Net SAE J1349/ISO 9249** - Forward	602	hp
Engine Power - Gross SAE J1995* - Forward	631	hp
Engine Power - Gross SAE J1995* - Reverse	801	hp
Engine Power - ISO 14396* - Forward	620	hp
Engine Power - ISO 14396* - Reverse	789	hp
Engine Power - Net SAE J1349/ISO 9249** - Reverse	756	hp
Displacement	1648	in³
Stroke	6	in
Bore	5.4	in
Emissions
Note (1)
Note (2)
Note (3)
Note (4)
Note (5)
Engine Model
Engine Power - Net SAE J1349/ISO 9249** - Forward	603	hp
Engine Power - Net SAE J1349/ISO 9249** - Reverse	722	hp
Engine Power - Gross SAE J1995* - Forward	631	hp
Engine Power - Gross SAE J1995* - Reverse	766	hp
Engine Power - ISO 14396* - Forward	622	hp
Engine Power - ISO 14396* - Reverse	756	hp
Displacement	1648	in³
Bore	5.4	in
Stroke	6	in
Emissions
Note (1)
Note (2)
Note (3)
Note (4)
Note (5)
Fuel Tank - Usable Volume	323.3	gal (US)
Fuel Tank - Total Volume	335.2	gal (US)
Cooling System Refill – Tier 4 Final Engine	46.2	gal (US)
Engine Crankcase Sump	27.2	gal (US)
Power Train - Total Volume	81.4	gal (US)
Power Train - Refill Volume	74.8	gal (US)
Final Drives (each)	12.2	gal (US)
Track Roller Frames (each)	16.9	gal (US)
Pivot Shaft Oil	9.5	gal (US)
Hydraulic System Tank	32.2	gal (US)
Operating Weight	154,888	lb
Shipping Weight	111,739	lb
Note (1)
Note (2)
Pump Type
Pump Output - Implement	112	gpm
Note (1)
Fan Pump	21.7	gpm
Note (2)
Tilt Cylinder Flow - Rod End Flow	112	gpm
Tilt Cylinder Flow - Head End Flow	63.4	gpm
Lift Cylinder Relief Valve Setting	4,061.10	psi
Tilt Cylinder Relief Valve Setting	3,872.50	psi
Ripper - Lift - Relief Valve Setting	4,061.10	psi
Ripper - Pitch - Relief Valve Setting	4,061.10	psi
Tank Capacity	32.2	gal (US)
Cylinder Sizing - Blade Lift - Bore	5.5	in
Cylinder Sizing - Blade Tilt - Bore	8.3	in
Cylinder Sizing - Ripper Shank Lift - Bore	8.3	in
Cylinder Sizing - Ripper Shank Angle - Bore	7.1	in
Cylinder Sizing - Blade Lift - Stroke	65.1	in
Cylinder Sizing - Blade Tilt - Stroke	9.5	in
Cylinder Sizing - Ripper Shank Lift - Stroke	21.1	in
Cylinder Sizing - Ripper Shank Angle - Stroke	26	in
Note (3)
Shoe Type
Width - Shoe	24	in
Shoes/Side
Grouser Height	3.7	in
Pitch	10.2	in
Ground Clearance	28.5	in
Track Gauge	100.4	in
Length - Track on Ground	152.8	in
Ground Contact Area	7,347	in²
Track Rollers/Side
Number of Carrier Rollers
Steering Type
Brake Type
Brake Diameter	15.4	in
Brake Count
Air Conditioning
ROPS
FOPS
Sound
Note
Sound (1)
Note (1)
Note (2)
Note (3)
1.0 Forward	2.5	mile/h
1.5 Forward	3.4	mile/h
2.0 Forward	4.5	mile/h
2.5 Forward	6	mile/h
3.0 Forward	7.8	mile/h
1.0 Reverse	3.2	mile/h
1.5 Reverse	4.2	mile/h
2.0 Reverse	5.6	mile/h
2.5 Reverse	7.5	mile/h
3.0 Reverse	9.8	mile/h
Transmission Clutch Diameter	17	in
Type
Ground Clearance*	28.5	in
Track Gauge	100.4	in
Width - Without Trunnions - 610 mm/24 in ES	130.4	in
Width - Over Trunnions	148	in
Height - FOPS Cab*	162.8	in
Height - Top of Stack*	171.5	in
Height - ROPS/Canopy*	173.5	in
Note (1)
Length - Track on Ground	152.8	in
Overall Length - Basic Tractor	209.6	in
Length - With SU-Blade	292	in
Length - With U-Blade	305.1	in
Length - With Single-Shank Ripper	278.8	in
Length - With Multi-Shank Ripper	285.1	in
Overall Length - SU-Blade/SS Ripper	360.6	in
10SU ABR - Capacity (SAE J1265)	24.2	yd³
10SU ABR - Width (over end bits)	194.5	in
10SU ABR - Height	83.5	in
10SU ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry)	19.98	in
10SU ABR - Digging Depth - Blade Pitch: Nominal	25.23	in
10SU ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread)	30.08	in³
10SU ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry)	66.14	in
10SU ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread)	53.86	in
10SU ABR - Ground Clearance - Maximum Tilt LH	56.3	in
10SU ABR - Ground Clearance - Maximum Tilt RH	56.3	in
10U ABR - Capacity (SAE J1265)	28.7	yd³
10U ABR - Width (over end bits)	207.1	in
10U ABR - Height	83.5	in
10U ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry)	19.98	in
10U ABR - Digging Depth - Blade Pitch: Nominal	60	in
10U ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread)	30.1	in
10U ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry)	66.1	in
10U ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread)	53.9	in
10U ABR - Ground Clearance - Maximum Tilt LH	60.8	in
10U ABR - Ground Clearance - Maximum Tilt RH	60.8	in
10U ABR - Weights - Blade Weight*	23,585	lb
10U ABR - Weights - Total Operating Weight** (with blade and SS ripper)	154,888	lb
Note (1)
Note (2)
Note (3)
Maximum penetration force * (shank vertical)	49,233	lbf
Maximum penetration depth (standard tip)	59.2	in
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	36	in
Weight	14,209	lb
Note
Maximum penetration force * (shank vertical)	53,055	lbf
Maximum penetration depth (standard tip)	78.3	in
Weight	14,548	lb
Note

Standard Equipment

OPERATOR ENVIRONMENT
TECHNOLOGY
POWER TRAIN
UNDERCARRIAGE
HYDRAULICS
ELECTRICAL
SERVICE AND MAINTENANCE

Optional Equipment

OPERATOR ENVIRONMENT
TECHNOLOGY
POWER TRAIN
UNDERCARRIAGE
HYDRAULICS
ELECTRICAL
SERVICE AND MAINTENANCE
REAR ATTACHMENTS
BLADES
OTHER
WORKTOOLS BLADES
