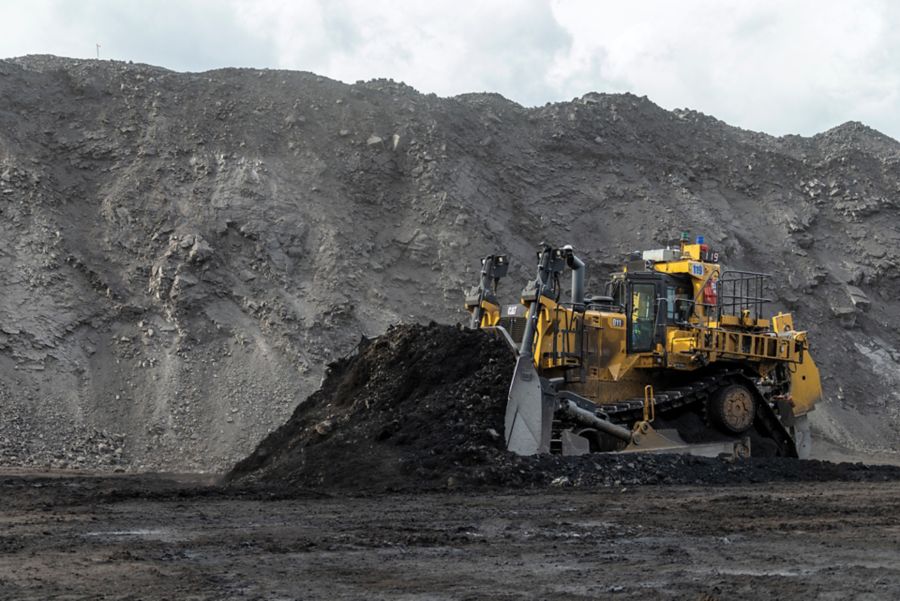

D11

Caterpillar

How do you make the industry’s best large dozer even better? By listening to your customers. You asked us to keep everything you love about the next generation D11, but to continue making improvements that help lower your overall costs. So we’ve made key changes that improve serviceability, durability, reliability and safety — helping the new D11 (07B) deliver a more positive impact to your bottom line.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Engine Model
Engine Power - Net SAE J1349/ISO 9249 - Forward	850	hp
Displacement	1959	in³
Engine Power - Net SAE J1349/ISO 9249 - Reverse	957	hp
Note (1)
Note (2)
Note (3)
Engine Model
Displacement	1959	in³
Engine Power - Net SAE J1349/ISO 9249 - Forward	850	hp
Engine Power - Net SAE J1349/ISO 9249 - Reverse	957	hp
Note (1)
Note (2)
Note (3)
Fuel Tank - Total Volume	500	gal (US)
Fuel Tank - Usable Volume	475	gal (US)
Cooling System	46.8	gal (US)
Cooling System Refill - Tier 2 Equivalent Engine	41.7	gal (US)
Engine Crankcase	35.1	gal (US)
Power Train	120	gal (US)
Power Train - Refill Volume	103.3	gal (US)
Final Drive - Each	12.4	gal (US)
Roller Frames - Each	24.8	gal (US)
Hydraulic Tank	42.2	gal (US)
Hydraulic System Tank and Chassis	64.7	gal (US)
Hydraulic System Chassis + Blade and Ripper (Standard)	117.6	gal (US)
Hydraulic System Chassis + Blade and Ripper (Carrydozer)	143.4	gal (US)
Operating Weight	235,507	lb
Operating Weight - Carrydozer	254,208	lb
Note (1)
Note (2)
Pump Type
Combined Pump Output - Implement	177	gpm
Shoe Type
Width - Shoe	28	in
Width - Shoe - CD	36	in
Shoes/Side
Grouser Height	4	in
Pitch	12.5	in
Ground Clearance*	30.6	in
Track Gauge	114	in
Length - Track on Ground	175	in
Ground Contact Area	9781	in²
Ground Contact Area - CD	12605	in²
Track Rollers/Side
Number of Carrier Rollers
Note (1)
ROPS
FOPS
Sound (1)
Sound (2)
1.0 Forward	2.5	mile/h
2.0 Forward	4.4	mile/h
3.0 Forward	7.6	mile/h
1.0 Reverse	3	mile/h
2.0 Reverse	5.3	mile/h
3.0 Reverse	9.1	mile/h
Semi-Universal (SU)* Capacity	35.6	yd³
Semi-Universal (SU)* Width Over Endbits	219.8	in
U-Blade Capacity	45	yd³
U-Blade Width	249.6	in
Reclamation Universal - Blade capacity (SAE J1265)	55	yd³
Reclamation Universal - Width with blade (over end bits)	251.8	in
Carry Dozer - Blade capacity (SAE J1265)	57	yd³
Carry Dozer - Width with blade (over end bits)	263.9	in
Maximum penetration force * (shank vertical)	66000	lb
Maximum penetration depth (standard tip)	63.5	in
Pryout Force	148510	lb
Maximum penetration force * (shank vertical)	66110	lb
Maximum penetration depth (standard tip)	85.5	in
Pryout Force	148510	lb
Overall Beam Width	131.1	in
Maximum Penetration Force - Shank Vertical	77350	lb
Maximum Penetration - Standard Tip	43.3	in
Pry-Out Force - Multi-Shank Ripper with One Tooth	145640	lb
Ground Clearance*	31.4	in
Track Gauge	114	in
Width at Outside of Track (710 mm Track Shoe)	142	in
Height (ROPS/canopy)*	185.9	in
Length of Track on Ground	175	in
Length with SU-Blade** - No rear attachment	337.8	in
Overall Length SU-Blade and SS Ripper**	414.4	in
Note
Width at Outside of Track (710 mm Track Shoe)	149.8	in
Length with SU-Blade** - No rear attachment	345.1	in
Overall Length SU-Blade and SS Ripper**	421.7	in
Drawbar Pull - 3 Forward	46250	ft·lbf
Drawbar Pull - 1 Forward	148200	ft·lbf
Drawbar Pull - 2 Forward	82300	ft·lbf

Standard Equipment

OPERATOR ENVIRONMENT
CAT TECHNOLOGY PRODUCTS
CAT POWER TRAIN
UNDERCARRIAGE
HYDRAULICS
ELECTRICAL
SERVICE AND MAINTENANCE

Optional Equipment

OPERATOR ENVIRONMENT
CAT TECHNOLOGY PRODUCTS
CAT POWER TRAIN
UNDERCARRIAGE
HYDRAULICS
ELECTRICAL
SERVICE AND MAINTENANCE
REAR ATTACHMENTS
BLADES
OTHER
