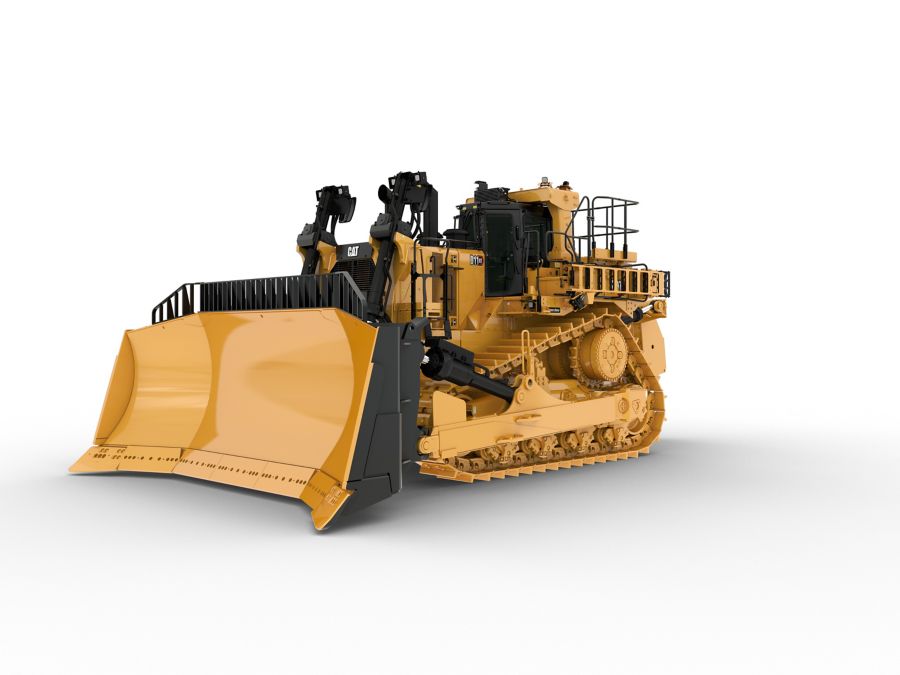

D11 XE
The Cat® D11 XE is the most efficient, highest-producing D11 ever. It's built on a legacy of performance and reliability, with a Caterpillar-designed electric powertrain that improves fuel efficiency and increases productivity.
It's a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It's easier to operate and maintain, and it's built to last 20% longer between rebuilds. The result? You'll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.
It's a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It's easier to operate and maintain, and it's built to last 20% longer between rebuilds. The result? You'll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.
The Cat® D11 XE is the most efficient, highest-producing D11 ever. It's built on a legacy of performance and reliability, with a Caterpillar-designed electric powertrain that improves fuel efficiency and increases productivity.
It's a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It's easier to operate and maintain, and it's built to last 20% longer between rebuilds. The result? You'll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.
It's a flexible machine that can handle any application you throw at it, no matter how harsh the conditions of your site. It's easier to operate and maintain, and it's built to last 20% longer between rebuilds. The result? You'll move more material per hour, use less fuel, produce less greenhouse gas and achieve a lower total cost of ownership.
Brochures and Spec Sheets
- D11 XE Product Brochure
- D11 XE Technical Specifications
- D11 XE Poster
- Large Dozer Family Brochure
- D11 XE vs. D11 Performance Report
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Model | ||
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 861 | hp |
| Displacement | 1959 | in³ |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 956 | hp |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Engine Model | ||
| Displacement | 1959 | in³ |
| Engine Power - Net SAE J1349/ISO 9249 - Forward | 861 | hp |
| Engine Power - Net SAE J1349/ISO 9249 - Reverse | 959 | hp |
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Fuel Tank - Usable Volume | 466 | gal (US) |
| Cooling System | 50.7 | gal (US) |
| Engine Crankcase | 35.1 | gal (US) |
| Powertrain | 120 | gal (US) |
| Power Train - Refill Volume | 109.6 | gal (US) |
| Final Drive - Each | 10.6 | gal (US) |
| Roller Frames - Each | 24.8 | gal (US) |
| Hydraulic Tank | 42.2 | gal (US) |
| Hydraulic System Tank and Chassis | 64.7 | gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Standard) | 117.6 | gal (US) |
| Hydraulic System Chassis + Blade and Ripper (Carrydozer) | 143.4 | gal (US) |
| Operating Weight | 238,794 | lb |
| Operating Weight - Carrydozer | 257,958 | lb |
| Note (1) | ||
| Note (2) | ||
| Pump Type | ||
| Combined Pump Output - Implement | 177 | gpm |
| Width - Shoe | 28 | in |
| Width - Shoe - CD | 36 | in |
| Shoes/Side | ||
| Grouser Height | 4 | in |
| Pitch | 12.5 | in |
| Ground Clearance* | 30.6 | in |
| Track Gauge | 114 | in |
| Length - Track on Ground | 175 | in |
| Ground Contact Area | 9781 | in² |
| Ground Contact Area - CD | 12605 | in² |
| Track Rollers/Side | ||
| Number of Carrier Rollers | ||
| Note (1) | ||
| ROPS | ||
| FOPS | ||
| Sound (1) | ||
| Sound (2) | ||
| 1.0 Forward | 2.5 | mile/h |
| 2.0 Forward | 4.4 | mile/h |
| 3.0 Forward | 7 | mile/h |
| 1.0 Reverse | 3 | mile/h |
| 2.0 Reverse | 5.4 | mile/h |
| 3.0 Reverse | 7 | mile/h |
| Semi-Universal (SU)* Capacity | 35.6 | yd³ |
| Semi-Universal (SU)* Width Over Endbits | 219.8 | in |
| U-Blade Capacity | 45 | yd³ |
| U-Blade Width | 249.6 | in |
| Reclamation Universal - Blade capacity (SAE J1265) | 55 | yd³ |
| Reclamation Universal - Width with blade (over end bits) | 251.9 | in |
| Carry Dozer - Blade capacity (SAE J1265) | 57 | yd³ |
| Carry Dozer - Width with blade (over end bits) | 263.9 | in |
| Maximum penetration force * (shank vertical) | 68,195 | lb |
| Maximum penetration depth (standard tip) | 63.5 | in |
| Pryout Force | 146991 | lb |
| Maximum penetration force * (shank vertical) | 68,434 | lb |
| Maximum penetration depth (standard tip) | 85.5 | in |
| Pryout Force | 146376 | lb |
| Overall Beam Width | 131.1 | in |
| Maximum Penetration Force - Shank Vertical | 69,112 | lb |
| Maximum Penetration - Standard Tip | 43.3 | in |
| Pry-Out Force - Multi-Shank Ripper with One Tooth | 144,785 | lb |
| Ground Clearance* | 31.4 | in |
| Track Gauge | 114 | in |
| Width - Over Trunnions | 172.4 | in |
| Height - FOPS Cab* | 173.4 | in |
| Height - Top of Stack* | 179.1 | in |
| Height - ROPS/Canopy* | 185.9 | in |
| Drawbar Height (Center of Clevis)* | 37.1 | in |
| Length - Track on Ground | 175 | in |
| Overall Length - Basic Tractor | 242.5 | in |
| Length - Basic Tractor - With Drawbar | 242.5 | in |
| Length - With SU-Blade** | 337.8 | in |
| Length - With U-Blade | 340.2 | in |
| Length - With Single-Shank Ripper | 319.2 | in |
| Length - With Multi-Shank Ripper | 331.8 | in |
| Width - Without Trunnions - Standard Shoe | 148.9 | in |
| Note (1) | ||
| Note (2) |
Standard Equipment
- OPERATOR ENVIRONMENT
- CAT TECHNOLOGY PRODUCTS
- CAT POWER TRAIN
- UNDERCARRIAGE
- HYDRAULICS
- ELECTRICAL
- SERVICE AND MAINTENANCE
Optional Equipment
- CAT POWER TRAIN
- OPERATOR ENVIRONMENT
- CAT TECHNOLOGY PRODUCTS
- UNDERCARRIAGE
- HYDRAULICS
- ELECTRICAL
- SERVICE AND MAINTENANCE
- REAR ATTACHMENTS
- BLADES
- OTHER
