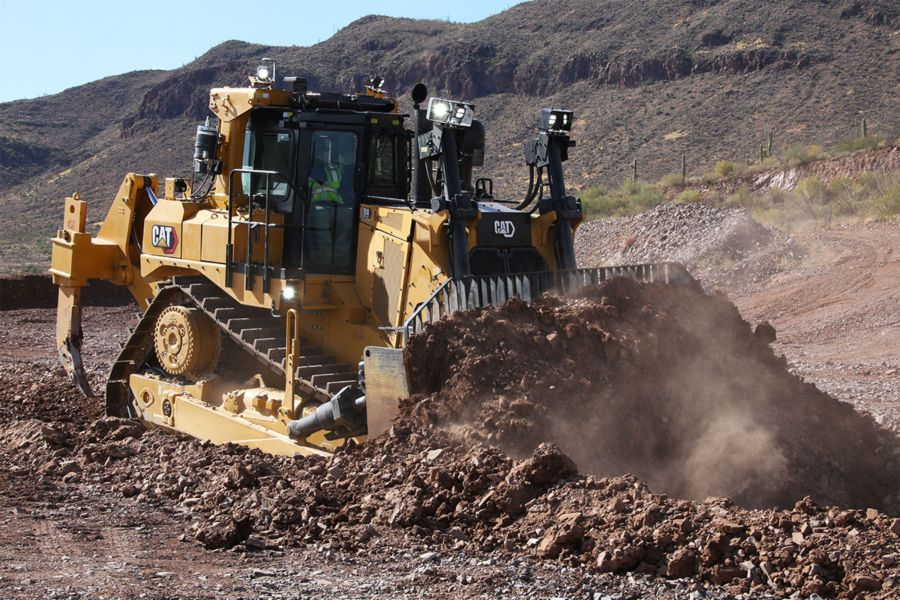

The Cat^®D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9’s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements — and more — make the D9 a dozer that delivers a lower overall cost per unit of material moved.

The Cat^® D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9’s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements — and more — make the D9 a dozer that delivers a lower overall cost per unit of material moved.

Brochures and Spec Sheets

Gallery

Specifications

Specification	Value	Unit
Engine Model
Engine Power - Net SAE J1349/ISO 9249	452	hp
Bore	5.7	in³
Stroke	7.2	in
Displacement	1106	in³
Engine Power - Gross SAE J1995	487	hp
Engine Power - ISO 14396	479	hp
Emissions
Note (1)
Note (2)
Engine Model
Bore	5.7	in³
Stroke	7.2	in³
Displacement	1106	in³
Engine Power - Gross SAE J1995	477	hp
Engine Power - ISO 14396	468	hp
Engine Power - Net SAE J1349/ISO 9249	440	hp
Emissions
Note (1)
Note (2)
Fuel Tank (Splash Fill)	254	gal (US)
DEF Tank (Tier 4 only)	9.5	gal (US)
Fuel Tank (Fast Fill)	248	gal (US)
Cooling System	21	gal (US)
Engine Crankcase*	10	gal (US)
Powertrain	40	gal (US)
Final Drives (each)	4	gal (US)
Roller Frames (each)	12	gal (US)
Pivot Shaft Oil	8	gal (US)
Hydraulic System Tank	24	gal (US)
Note
Note 2
Note 3
Note 4
Operating Weight	110225	lb
Shipping Weight	84373	lb
Note (1)
Note (2)
Pump Type
Pump Output - Steering	96	gpm
Fan Pump	21	gpm
Tilt Cylinder Flow - Rod End Flow	53	gpm
Tilt Cylinder Flow - Head End Flow	53	gpm
Lift Cylinder Relief Valve Setting	3800	lbf/in
Tilt Cylinder Relief Valve Setting	2799	psi
Ripper - Lift - Relief Valve Setting	3800	psi
Ripper - Pitch - Relief Valve Setting	3800	psi
Steering System - Pressure	5874	psi
Tank Capacity	24	gpm
Note (1)
Note (2)
Note (3)
Shoe Type
Width - Shoe	24	in
Shoes/Side
Grouser Height	3.3	in
Pitch	9.4	in
Ground Clearance	18.1	in
Track Gauge	88.6	in
Length - Track on Ground	136.6	in
Ground Contact Area	45.6	ft²
Track Rollers/Side
Number of Carrier Rollers
Steering Type
Brake Type
Brake Diameter	15.5	in
Brake Count
Air Conditioning
ROPS
FOPS
Sound
Sound (1)
Sound (2)
1.0 Forward	2.2	mile/h
2.0 Forward	3.9	mile/h
3.0 Forward	6.8	mile/h
1.0 Reverse	2.7	mile/h
2.0 Reverse	4.8	mile/h
3.0 Reverse	8.4	mile/h
Type
Blade Capacity (SAE J1265)	17.8	yd³
Blade Width (over end bits)	171.3	in
Blade Height	76.1	in
Maximum Digging Depth	23.9	in
Ground Clearance at Full Lift	56	in
Maximum Tilt	37	in
Blade Weight	10587	lb
Total Operating Weight* (with blade and single-shank ripper)	110205	lb
Note
Blade Capacity (SAE J1265)	21.7	yd³
Blade Width (over end bits)	184.3	in
Blade Height	76.1	in
Maximum Digging Depth	23.9	in
Ground Clearance at Full Lift	56	in
Maximum Tilt	39.9	in
Blade Weight	12016	lb
Total Operating Weight* (with blade and single-shank ripper)	111362	lb
Note
Maximum penetration force * (shank vertical)	35520	lbf
Maximum penetration depth (standard tip)	48.5	in
Pryout Force	74637	lbf
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	34.7	in
Number of Pockets
Weight	10701	lb
Total Operating Weight* (with SU Blade and noted ripper)	110205	lb
Note
Maximum penetration force * (shank vertical)	38667	lbf
Maximum penetration depth (standard tip)	68	in
Pryout Force	74412	lbf
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	32.2	in
Number of Pockets
Weight	10981	lb
Total Operating Weight* (with SU Blade and noted ripper)	110485	lb
Note
Maximum Penetration Force - Shank Vertical	34621	lbf
Maximum Penetration - Standard Tip	31.4	in
Pry-Out Force - Multi-Shank Ripper with One Tooth	81156	lbf
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	34.6	in
Number of Pockets
Weight	12136	lb
Total Operating Weight* - With SU-Blade and Ripper	111739	lb
Note
Winch Model
Weight*	3950	lb
Oil Capacity	4	gal (US)
Drum Width	12.6	in
Wire Cable Diameter - Recommended	1.13	in
Wire Cable Diameter - Optional	1.25	ft
Maximum Drum Capacity - Recommended Cable Length	257	in
Maximum Drum Capacity - Optional Cable Length	204	ft
Wire Cable Ferrule Size - Outside Diameter	2.4	in
Wire Cable Ferrule Size - Length	2.8	in
Note
Note (2)
Ground Clearance*	18.1	in
Track Gauge	88.6	in
Width - Without Trunnions - Standard Shoe	113	in
Width - Over Trunnions	130.3	in
Height - FOPS Cab*	150.4	in
Height - Top of Stack*	152.6	in
Height - ROPS/Canopy*	157.5	in
Drawbar Height (Center of Clevis)*	30	in
Length - Track on Ground	136.6	in
Overall Length - Basic Tractor	193.3	in
Length - Basic Tractor - With Drawbar	206.4	in
Length - Basic Tractor - With Winch	218.3	in
Length - With SU-Blade**	259.9	in
Length - With U-Blade	274.3	in
Length - With Single-Shank Ripper	257	in
Length - With Multi-Shank Ripper	257.4	in
Overall Length - SU-Blade/SS Ripper	323.6	in
