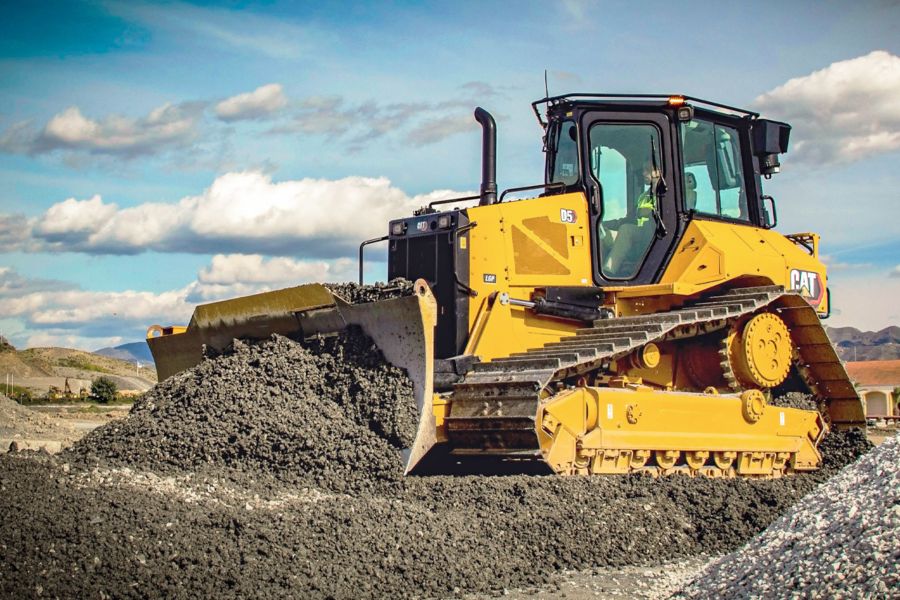

The Cat® D5 succeeds the renowned D6N with superior performance, a fully automatic transmission and a broad choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading.
The Cat® D5 succeeds the renowned D6N with superior performance, a fully automatic transmission and a broad choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading.

Brochures and Spec Sheets

Gallery

D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5 D5

Specifications

Specification Value Unit
Engine Model
Power - Net 170 hp
Net Power - Rated - ISO 9249/SAE J1349 170 hp
Net Power (Rated) - ISO 9249 (DIN) 172 mhp
Emissions
Note (1)
Note (2)
Note (3)
Note (4)
Operating Weight 42263 lb
Powertrain
Fuel Tank 83.2 gal (US)
DEF Tank 4.2 gal (US)
Operating Weight 37875 lb
Ground Pressure 6.9 psi
Width of Standard Shoe 24 in
Blade
Blade Capacity 4.6 yd³
Operating Weight 42263 lb
Ground Pressure 4.7 psi
Width of Standard Shoe 33 in
Blade
Blade Capacity 5.5 yd³
Operating Weight 39198 lb
Ground Pressure 6 psi
Width of Standard Shoe 24 in
Blade
Blade Capacity 4.6 yd³
Operating Weight 38228 lb
Ground Pressure 7 psi
Width of Standard Shoe 24 in
Blade
Blade Capacity 5.6 yd³
Recyclability
Air Conditioning
Note (1)

Standard Equipment

  • NOTE
  • Power Train
  • Operator Environment
  • Cat Technology
  • Blades
  • Undercarriage
  • Service and Maintenance
  • Attachments

Optional Equipment

  • NOTE
  • Operator Environment
  • Cat Technology
  • Blades
  • Service and Maintenance
  • Hydraulics
  • Attachments
  • Note
