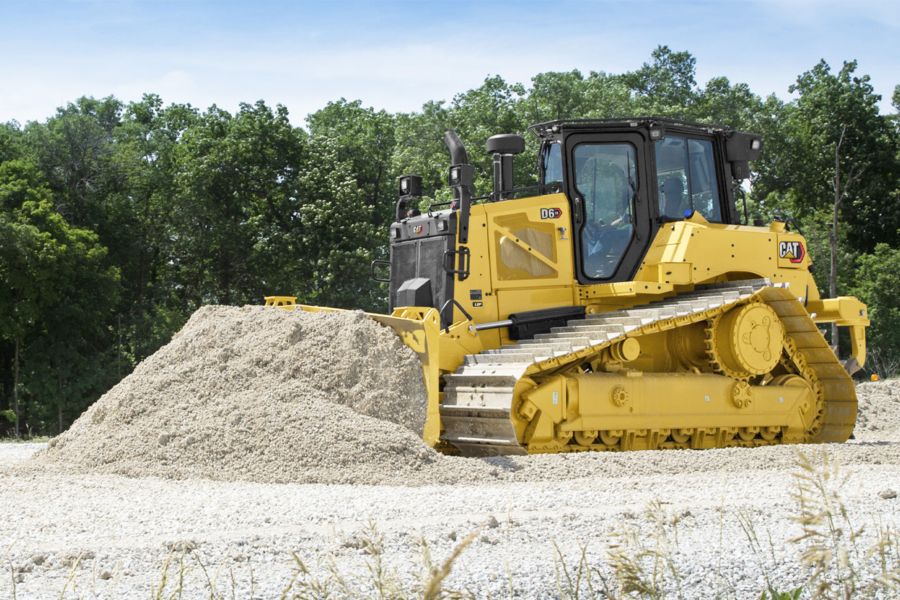

The Cat® D6 XE is the world’s first Electric Drive bulldozer. With an operating weight of 24 to 27 tons, this medium-sized bulldozer is designed for applications such as earthmoving, road construction, and land clearing.

The Cat D6 XE's advanced electric drive technology and fuel-efficient performance helps reduce operating costs and maximize productivity.
The Cat® D6 XE is the world’s first Electric Drive bulldozer. With an operating weight of 24 to 27 tons, this medium-sized bulldozer is designed for applications such as earthmoving, road construction, and land clearing.

The Cat D6 XE's advanced electric drive technology and fuel-efficient performance helps reduce operating costs and maximize productivity.
Fuel reduction based on testing of a D6 XE LGP VPAT (20) Dozer and D6 LGP VPAT (20) Dozer in a mixed composite cycle. Fuel use measured with an electronic control module (ECM). Test conducted by Caterpillar at Washington, IL in April 2019.

Brochures and Spec Sheets

Gallery

D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE D6 XE

Specifications

Specification Value Unit
Engine Model
Power - Net 215 hp
Net Power - Rated - ISO 9249/SAE J1349 215 hp
Net Power (Rated) - ISO 9249 (DIN) 219 mhp
Emissions
Note (1)
Note (2)
Note (3)
Note (4)
Operating Weight 51333 lb
Powertrain
Fuel Tank 90 gal (US)
DEF Tank 7.4 gal (US)
Operating Weight 49388 lb
Ground Pressure 8 psi
Width of Standard Shoe 24 in
Blade
Blade Capacity 7.5 yd³
Operating Weight 51020 lb
Ground Pressure 6.6 psi
Width of Standard Shoe 30 in
Blade
Blade Capacity 7.6 yd³
Operating Weight 53315 lb
Ground Pressure 5.3 psi
Width of Standard Shoe 36 in
Blade
Blade Capacity 5 yd³
Operating Weight 49708 lb
Ground Pressure 7.2 psi
Width of Standard Shoe 24 in
Blade
Blade Capacity 5.4 yd³
Operating Weight 51333 lb
Ground Pressure 5.9 psi
Width of Standard Shoe 30 in
Blade
Blade Capacity 5.9 yd³
Operating Weight 52512 lb
Ground Pressure 5.1 psi
Width of Standard Shoe 36 in
Blade
Blade Capacity 6.5 yd³
Recyclability
Air Conditioning

Standard Equipment

  • NOTE
  • Powertrain
  • Operator Environment
  • Cat Technology
  • Undercarriage
  • Service and Maintenance
  • Hydraulics
  • Attachments

Optional Equipment

  • NOTE
  • Operator Environment
  • Cat Technology
  • Blades
  • Undercarriage
  • Service and Maintenance
  • Attachments
