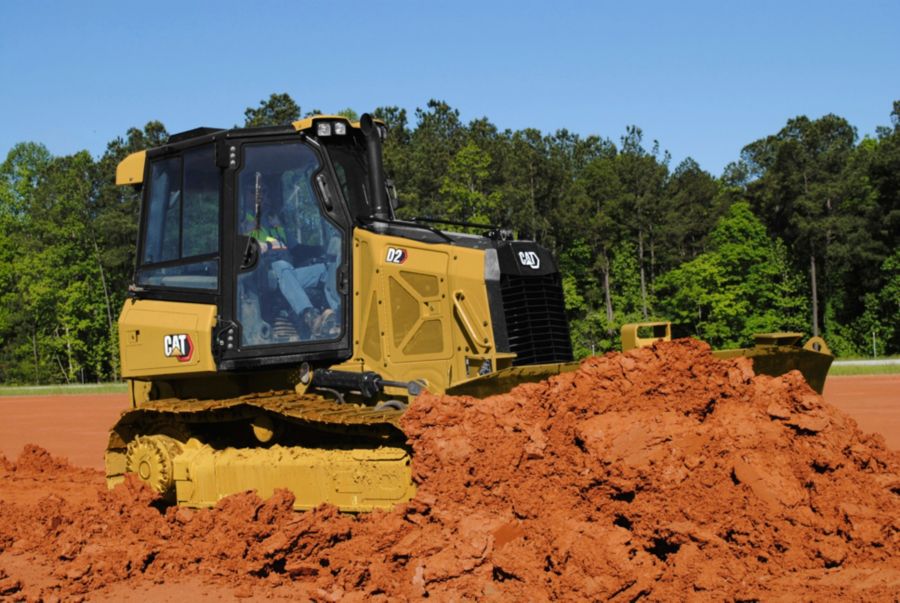

The Cat® D2 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.
The Cat® D2 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.

Brochures and Spec Sheets

Gallery

D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2

Specifications

Specification Value Unit
Engine Model
Power - Net 92 hp
Displacement 220 in³
Net Power - 2,200 rpm - SAE J1349 92 hp
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269 92 hp
Note (1)
Power Train
Note (2)
Operating Weight 18382 lb
Operating Weight 18382 lb
Operating Weight - LGP 19066 lb
Note (2)
Note (1)
FOPS
ROPS
Drive Pumps
Maximum Travel Speed - Forward 5.6 mile/h
Relief Valve Settings 7033 psi
Maximum Travel Speed - Reverse 6.2 mile/h
Track Motors
Length - Track on Ground - LGP 89 in
Track Gauge 61 in
Number of Rollers - Each Side
Track Gauge - LGP 68 in
Ground Pressure - LGP 4.3 psi
Shoe Width - Standard 18 in
Shoe Width - LGP 25 in
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage
Number of Shoes - Each Side - Abrasion Undercarriage
Ground Pressure  5.7 psi
Length of Track on Ground  89 in
Fuel Tank 51.5 gal (US)
Crankcase - With Filter 2.8 gal (US)
Final Drive - Each - LGP 2.6 gal (US)
Cooling System 5 gal (US)
Transmission - Hydraulic Tank 23.8 gal (US)
Diesel Exhaust Fluid (DEF) Tank 4.9 gal (US)
Final Drives - Each Side  2.6 gal (US)
Pump Output 17.2 gpm
Relief Valve Settings 2988 psi
Type
Number of Shanks
Height 6.5 in
Weight 1222 lb
Maximum Digging Depth 13.3 in
Maximum Ground Clearance Under Tip 17.6 in
Overall Width 67.3 in
Maximum Reach - Ground Line 30.2 in
Air Conditioning
BLADE: Digging Depth - LGP 23.2 in
BLADE: Blade Cutting Edge Angle, Adjustable - LGP
BLADE: Blade Lift Height - LGP 27.9 in
BLADE: Blade Width - LGP 124 in
BLADE: Blade Width at Maximum Angle - LGP 113.1 in
Track Gauge - LGP 67.9 in
Ground Clearance - LGP 13 in
BLADE: Blade Height - LGP 35.8 in
Overall Length - With Blade - LGP 168.2 in
BLADE: Blade Capacity (SAE) - LGP 2.42 yd³
BLADE: Maximum Tilt - LGP 17.2 in
BLADE: Maximum Angle (either side) - LGP
BLADE: Maximum Angle (either side) - Standard
Ground Clearance - Standard  13 in
Overall Length - With Blade - Standard  168.5 in
Note
BLADE: Blade Cutting Edge Angle, Adjustable - Standard
BLADE: Maximum Tilt - Standard  15.2 in
Track Gauge - Standard  61 in
BLADE: Digging Depth - Standard  23.3 in
BLADE: Blade Width - Standard  109.5 in
BLADE: Blade Lift Height - Standard  29.3 in
BLADE: Blade Capacity (SAE) - Standard  2.59 yd³
BLADE: Blade Width at Maximum Angle - Standard  100.1 in
Note
BLADE: Blade Height - Standard  39.8 in
Length of Basic Dozer (without blade) - LGP 129.5 in
Width of Dozer (standard shoes, no blade) - Standard 79.1 in
Dozer Height - LGP 108.9 in
Dozer Height - Standard 108.9 in
Width of Dozer (standard shoes, no blade) - LGP 92.9 in
Length of Basic Dozer (without blade) - Standard 129.5 in
Maximum Line Speed - Full Drum 79 ft/min
Maximum Line Speed - Bare Drum 50 ft/min
Weight 1747 lb
Drum Capacity - Optional Cable 195 ft
Rope Diameter - Recommended 0.63 in
Winch Drive
Rope Diameter - Optional 0.75 in
Drum Capacity - Recommended Cable 277 ft
Maximum Line Pull - Full Drum 20350 lb
Speed
Maximum Line Pull - Bare Drum 32150 lb
Control
Overall width 27.91 in
Drum Width 9.65 in
Drum Diameter 8 in
Winch Length 35.63 in
Throat Clearance 5.6 in
Maximum line pull – bare drum 40000 lb
Drum capacity – recommended cable 371 ft
Winch length 27.76 in
Overall width 29.2 in
Control
Maximum line speed – bare drum 131 ft/min
Maximum line speed – full drum 207 ft/min
Drum width 10.8 in
Drum capacity – optional 256 ft
Throat clearance 6.75 in
Weight 1345 lb
Rope diameter – recommended 0.63 in
Speed
Maximum line pull – full drum 25000 lb
Drum diameter 10 in
Rope diameter – optional 0.75 in
Winch drive

Standard Equipment

  • POWER TRAIN
  • ELECTRICAL
  • UNDERCARRIAGE
  • HYDRAULIC
  • CAT TECHNOLOGY
  • ATTACHMENTS
  • OPERATOR ENVIRONMENT

Optional Equipment

  • POWER TRAIN
  • ELECTRICAL
  • UNDERCARRIAGE
  • HYDRAULIC
  • CAT TECHNOLOGY
  • ATTACHMENTS
  • OPERATOR ENVIRONMENT
  • OTHER
