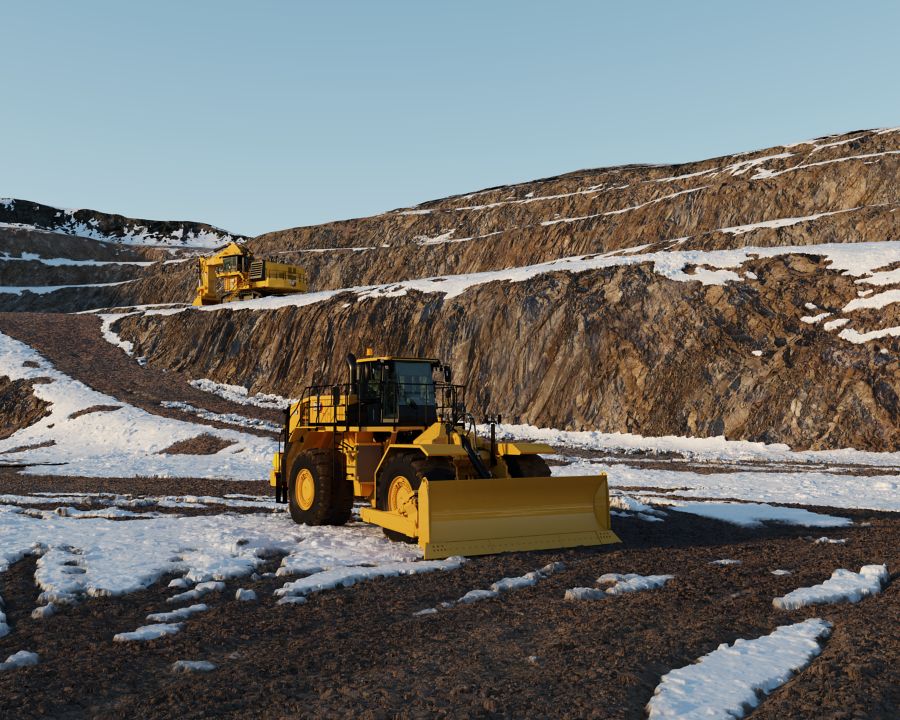

Designed with performance in mind, the Cat® 834 Wheel Dozer delivers fast speeds for quick travel and cleanup on your jobsite. Improved efficiency and more productivity get the job done quickly and with less emissions. Simplified serviceability makes for a long lifecycle, low owning and operating costs, and more uptime.
Designed with performance in mind, the Cat® 834 Wheel Dozer delivers fast speeds for quick travel and cleanup on your jobsite. Improved efficiency and more productivity get the job done quickly and with less emissions. Simplified serviceability makes for a long lifecycle, low owning and operating costs, and more uptime.

Brochures and Spec Sheets

Gallery

834 834 834 834 834

Specifications

Specification Value Unit
Engine Model
Net Power - SAE J1349:2011 496 hp
Rated Speed 1900.0 r/min
Peak Power Speed 1500.0 r/min
Gross Power - SAE J1995:2014 562 hp
Bore 5.7 in
Stroke 7.2 in
Displacement 1105.0 in³
Peak Torque - 1,300 rpm 2092.0 lb/ft
Torque Rise 52.0 %
Note (1)
Note (2)
Operating Weight 105271.0 lb
Blade Capacities
Transmission Type
Forward - 1 4.2 mile/h
Forward - 2 7.2 mile/h
Forward - 3 12.6 mile/h
Forward - 4 22.0 mile/h
Reverse - 1 4.2 mile/h
Reverse - 2 7.6 mile/h
Reverse - 3 13.3 mile/h
Direct Drive - Forward 1
Direct Drive - Forward 2 7.7 mile/h
Direct Drive - Forward 3 13.7 mile/h
Direct Drive - Forward 4 23.9 mile/h
Direct Drive - Reverse 1 4.5 mile/h
Direct Drive - Reverse 2 8.1 mile/h
Direct Drive - Reverse 3 14.3 mile/h
Note
Lift/Tilt System - Circuit
Lift/Tilt System
Maximum Flow at 1,900 rpm 153.0 gpm
Relief Valve Setting - Lift/Tilt 4641.0 psi
Cylinders, Double Acting - Lift, Bore and Stroke
Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke
Pilot System
Pilot Maximum Flow 13.7 gpm
Pilot Relief Valve Setting 580.0 psi
Steering System - Circuit
Steering System - Pump
Maximum Flow 65.8 gpm
Relief Valve Setting - Steering 3495.0 psi
Total Steering Angle 86.0 °
Steering Cycle Times - High Idle 3.1 s
Steering Cycle Times - Low Idle 5.7 s
Fuel Tank 209.5 gal (US)
Cooling System 31.7 gal (US)
Crankcase 15.9 gal (US)
Diesel Exhaust Fluid Tank 8.7 gal (US)
Transmission 31.7 gal (US)
Hydraulic System Factory Fill 63.4 gal (US)
Differential - Final Drives - Front 49.1 gal (US)
Differential - Final Drives - Rear 49.1 gal (US)
Hydraulic System - Tank Only 37.0 gal (US)
Note (1)
Air Conditioning
Front
Rear
Oscillation Angle
Brakes
Operator Sound Pressure Level (ISO 6396:2008) 72 dB(A)
Machine Sound Power Level (ISO 6395:2008) 113 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A)
Machine Sound Power Level (ISO 6395:2008)** 109 dB(A)
Note (1)
Note (2)
Note (3)
Note (4)
Note (5)
Operator Sound Pressure Level (ISO 6396:2008) 72 dB(A)
Machine Sound Power Level (ISO 6395:2008) 113 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)* 72 dB(A)
Machine Sound Power Level (ISO 6395:2008)** 110 dB(A)
Note (1)
Note (2)
Note (3)
Note (4)
Note (5)
Height - Top of Exhaust Stack 15.9 ft
Height - Top of Air Cleaner 12.8 ft
Height - Top of Hood 10.9 ft
Ground Clearance - Bumper 3.1 ft
Centerline of Rear Axle to Edge of Bumper 10.5 ft
Wheel Base 14.9 ft
Length - Front of Tire 28.4 ft
Length - Straight Blade on Ground 32.6 ft
Length - Universal Blade on Ground 34.4 ft
Centerline of Front Axle to Hitch 7.5 ft
Ground Clearance 1.7 ft
Height - Top of Cab 13.7 ft

Standard Equipment

  • NOTE
  • ELECTRICAL
  • OPERATOR ENVIRONMENT
  • POWERTRAIN
  • ADDITIONAL EQUIPMENT

Optional Equipment

  • NOTE
  • POWERTRAIN
  • OPERATOR ENVIRONMENT
  • ADDITIONAL EQUIPMENT
