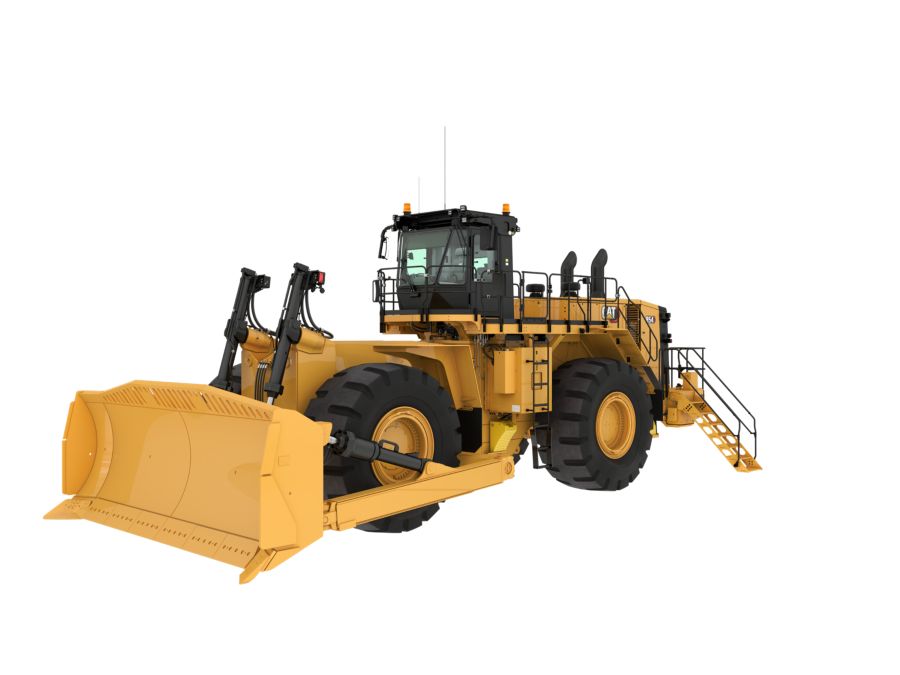

Engineered for demanding work in large dozing applications, the Cat® 854 Wheel Dozer is the largest in the Cat lineup and is an ideal match for large mining operations, power-generating utilities, the general contracting industry and wherever mobility, versatility and compaction are needed. Like all Cat Wheel Dozers, the 854 is designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance and simplified serviceability, the 854 will allow you to move more material efficiently and safely at a lower cost per ton.
Engineered for demanding work in large dozing applications, the Cat® 854 Wheel Dozer is the largest in the Cat lineup and is an ideal match for large mining operations, power-generating utilities, the general contracting industry and wherever mobility, versatility and compaction are needed. Like all Cat Wheel Dozers, the 854 is designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance and simplified serviceability, the 854 will allow you to move more material efficiently and safely at a lower cost per ton.

Brochures and Spec Sheets

Gallery

854 854 854 854 854 854 854 854 854 854

Specifications

Specification Value Unit
Engine Model
Emissions (U.S. EPA Tier 4 Final): Net Power ISO - 9249 814 hp
Emissions (U.S. EPA Tier 4 Final): Gross Power - SAE J1995 900 hp
Gross Power 907 hp
Emissions (Tier 2 Equivalent): Gross Power - SAE J1995 907 hp
Emissions (Tier 2 Equivalent): Net Power ISO - 9249 823 hp
Rated Speed 1750 r/min
Bore 5.7 in
Stroke 6.4 in
Displacement 1958 in²
Peak Torque - 1,200 rpm 3139 lb/ft
Torque Rise 30 %
Note (1)
Note (2)
Note (3)
Operating Weight 224,647 lb
Transmission Type
Converter Drive - Forward 1 4.4 mile/h
Converter Drive - Forward 2 7.7 mile/h
Converter Drive - Forward 3 13.2 mile/h
Converter Drive - Reverse 1 4.8 mile/h
Converter Drive - Reverse 2 8.4 mile/h
Converter Drive - Reverse 3 14.6 mile/h
Direct Drive - Forward 1
Direct Drive - Forward 2 8.1 mile/h
Direct Drive - Forward 3 14.2 mile/h
Direct Drive - Reverse 1 5 mile/h
Direct Drive - Reverse 2 8.9 mile/h
Direct Drive - Reverse 3 15.6 mile/h
Note
Output at 1,850 rpm and 6900 kPa (1,000 psi) 161 gpm
Cylinders, Double Acting - Lift, Bore and Stroke
Cylinder, Double Acting - Tilt and Tip, Bore and Stroke
Fuel Tank - Standard 413 gal (US)
Cooling System 53 gal (US)
Crankcase 32 gal (US)
Transmission 45 gal (US)
Differential - Final Drives - Front 98 gal (US)
Differential - Final Drives - Rear 90 gal (US)
Hydraulic System - Steering and Engine Cooling Fan - Tank Only 77 gal (US)
Note (1)
Front
Rear
Brakes
Blade Capacities
Height - Top of ROPS 18.25 ft
Height - Top of Exhaust Pipe 17.17 ft
Height - Top of Hood 13 ft
Ground Clearance 27 in
Centerline of Front Axle to Hitch 9.67 ft
Centerline of Rear Axle to Edge of Bumper 13.75 ft
Wheel Base 19.25 ft
Length - With Blade on Ground 44 ft
Steering System - Pump
Minimum Turning Radius - Over Blade 31 ft
Steering System - Circuit
Relief Valve Setting 5004 psi
Total Steering Angle
Operating Weight 224647 lb
Sound Performance
Air Conditioning
ROPS/FOPS

Standard Equipment

  • ELECTRICAL AND LIGHTING
  • POWERTRAIN
  • OPERATOR ENVIRONMENT
  • SAFETY
  • SERVICE
  • COOLING
  • COLD WEATHER
  • EFFICIENCY
  • TRAMMING

Optional Equipment

  • ELECTRICAL AND LIGHTING
  • POWERTRAIN
  • OPERATOR ENVIRONMENT
  • SAFETY
  • SERVICE
  • BLADES
  • COOLING
  • COLD WEATHER
  • MACHINE CONTROL AND GUIDANCE
  • TIRES AND RIMS
  • TRAMMING
  • SOUND SUPPRESSION
