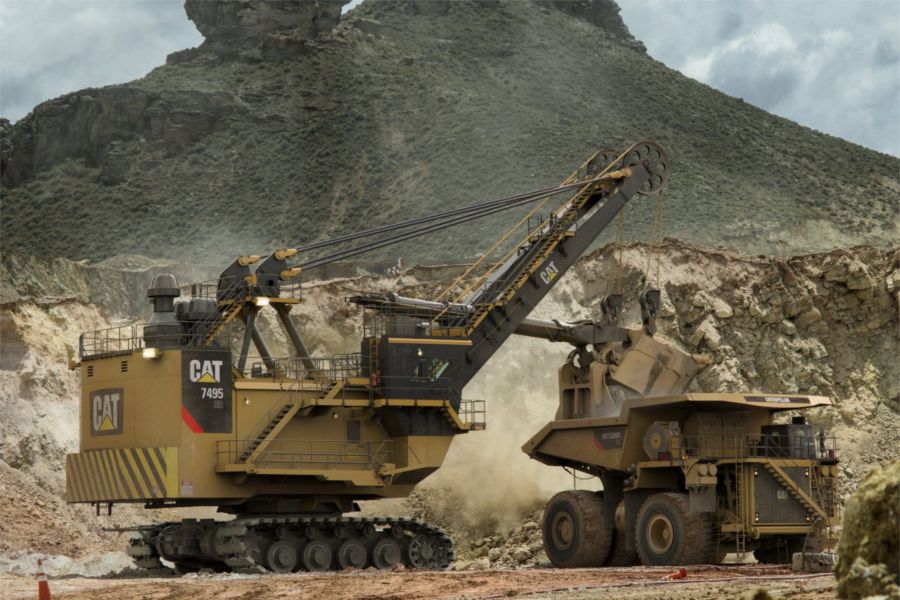

7495 HD
Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 HD is a smaller, tougher version of the 7495. Like the 7495, it features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The 7495 HD is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 HD is a smaller, tougher version of the 7495. Like the 7495, it features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The 7495 HD is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Brochures and Spec Sheets
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Dipper Payload | 90 | t |
| Dipper Capacity | ||
| Note | ||
| Working Weight - With Dipper and Standard Links | 2856700 | lb |
| Ballast - Furnished By Customer | 574000 | lb |
| Note (1) | ||
| Note (2) | ||
| Ground Bearing Pressure | ||
| Hoist | ||
| Swing | ||
| Upper Works Overall Width - Including Standard Walkways | 44.25 | ft |
| Planetary Propel | ||
| Note (1) | ||
| Note (2) | ||
| Type | ||
| Components (1) | ||
| Power Requirements - 60 Hz | ||
| Power Requirements - 50 Hz | ||
| Power Requirements - Voltage | ||
| Power Requirements - Average Power Demand | ||
| Drive | ||
| Note | ||
| Rope Data - Boom Suspension - Diameter | 3.25 | in |
| Rope Data - Dipper Trip - Diameter | 0.625 | in |
| Rope Data - Hoist - No. | ||
| Rope Data - Note | ||
| Rope Data - Crowd - Diameter | 2.5 | in |
| Rope Data - Crowd - No. | ||
| Rope Data - Hoist - Diameter | 2.75 | in |
| Components | ||
| Rope Data - Boom Suspension - No. | ||
| Rope Data - Retract - No. | ||
| Crowd | ||
| Rope Data - Dipper Trip - No. | ||
| Components (2) |
