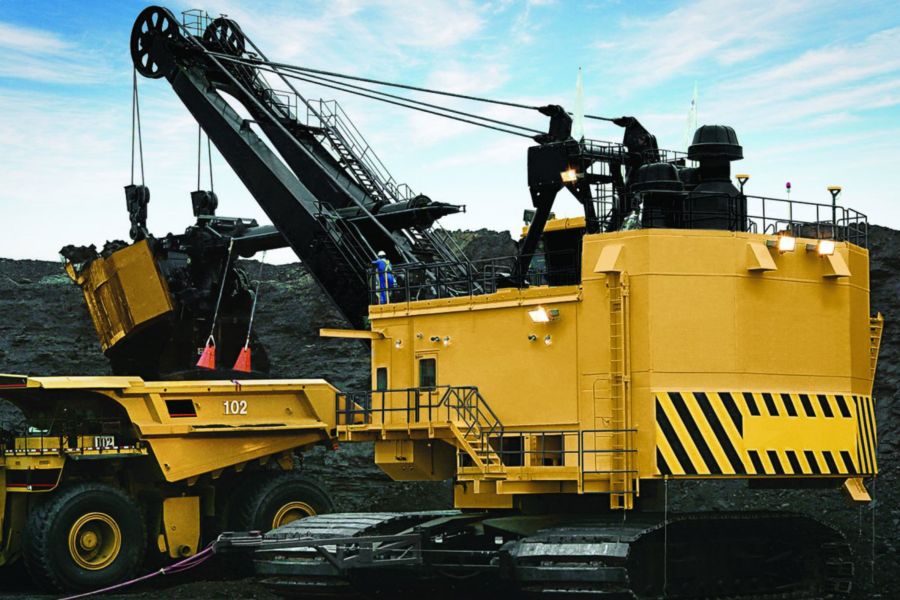

Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 HF with Rope Crowd features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. Its high-flotation undercarriage designed for the oil sands ensures low ground-pressure for improved digging and loading in poor underfoot conditions. The state-of-the-art operator’s cab is the most comfortable and productivity-enhancing in the industry. The 7495 HF with Rope Crowd is available with a number of new technologies that provide operator assist and machine self-protection, enable proactive maintenance, and deliver real-time information on productivity and performance. An entirely electric machine, the 7495 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 HF with Rope Crowd features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. Its high-flotation undercarriage designed for the oil sands ensures low ground-pressure for improved digging and loading in poor underfoot conditions. The state-of-the-art operator’s cab is the most comfortable and productivity-enhancing in the industry. The 7495 HF with Rope Crowd is available with a number of new technologies that provide operator assist and machine self-protection, enable proactive maintenance, and deliver real-time information on productivity and performance. An entirely electric machine, the 7495 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Brochures and Spec Sheets
Gallery
Specifications
| Specification |
Value |
Unit |
| Dipper Payload |
120 |
t |
| Dipper Capacity |
|
|
| Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified) |
120 |
t |
| Note |
|
|
| Working Weight - With Dipper and Standard Links |
3155000 |
lb |
| Ballast - Furnished By Customer |
667150 |
lb |
| Note (1) |
|
|
| Note (2) |
|
|
| Planetary Propel |
|
|
| Ground Bearing Pressure - Total Effective Bearing Area (317.5 cm/125 in) Treads |
|
|
| Hoist |
|
|
| Crawler Dimensions - Overall Width 317.5 cm (125 in) Treads |
41.67 |
in |
| Ground Bearing Pressure - Note |
|
|
| Upper Works Overall Width - Including Standard Walkways |
41.99 |
in |
| Swing |
|
|
| Type |
|
|
| Components (1) |
|
|
| Power Requirements - Average Power Demand |
|
|
| Power Requirements - 50 Hz |
|
|
| Power Requirements - Voltage |
|
|
| Drive |
|
|
| Power Requirements - 60 Hz |
|
|
| System Voltage - Nominal |
|
|
| Power Requirements - Peak power |
|
|
| Note |
|
|
| Rope Data - Dipper Trip - Diameter |
0.75 |
in |
| Rope Data - Retract - Diameter |
2.5 |
in |
| Components |
|
|
| Rope Data - Retract - No. |
|
|
| Rope Data - Boom Suspension - No. |
|
|
| Rope Data - Crowd - Diameter |
2.5 |
in |
| Rope Data - Note |
|
|
| Rope Data - Boom Suspension - Diameter |
3.25 |
in |
| Rope Data - Hoist - Diameter |
2.75 |
in |
| Rope Data - Crowd - No. |
|
|
| Rope Data - Hoist - No. |
|
|
| Rope Data - Dipper Trip - No. |
|
|
| Crowd (1) |
|
|
| Crowd (2) |
|
|
| Maximum Dumping Height |
29.53 |
ft |
| Dipper Capacities |
|
|
| Dipper Payload |
120 |
ton (US) |
| Operating Weight |
3155000 |
lb |
| Cutting Height - Maximum |
55 |
ft |
| Cutting Radius - Maximum |
79.72 |
ft |
| Radius of Level Floor |
55.77 |
ft |
| Dumping Height - With Clearance to Open Dipper Door |
29.53 |
ft |
| Revolving Frame Tail Swing Radius |
30.51 |
ft |
| Note (1) |
|
|
| Note (2) |
|
|
| Components (2) |
|
|
