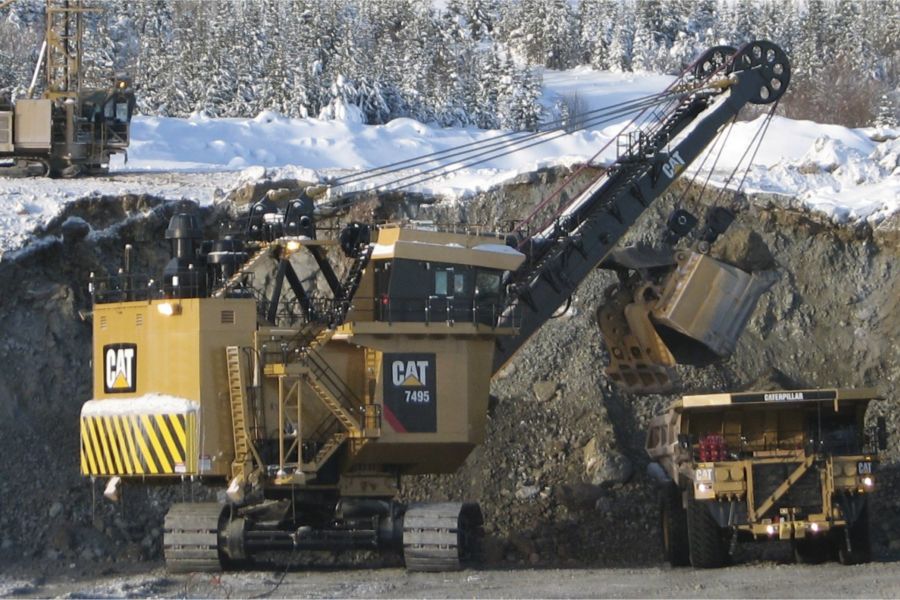

7495 with HydraCrowd
Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 with HydraCrowd features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The state-of-the-art operator’s cab is the most comfortable and productivity-enhancing in the industry. The 7495 is available with a number of new technologies that provide operator assist and machine self-protection, enable proactive maintenance, and deliver real-time information on productivity and performance. An entirely electric machine, the 7495 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. The Cat 7495 with HydraCrowd features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The state-of-the-art operator’s cab is the most comfortable and productivity-enhancing in the industry. The 7495 is available with a number of new technologies that provide operator assist and machine self-protection, enable proactive maintenance, and deliver real-time information on productivity and performance. An entirely electric machine, the 7495 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.
Brochures and Spec Sheets
- 7495 Electric Rope Shovel Product Brochure
- 7495 Electric Rope Shovel Technical Specifications
- 7495 Electric Rope Shovel Walkaround Brochure
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Dipper Payload | 120 | t |
| Dipper Capacity | ||
| Dipper Payload (Available Dipper Payloads Up To 109 Tonnes [120 tons] When Specified) | 120 | t |
| Note | ||
| Working Weight - With Dipper and Standard Links | 3066000 | lb |
| Ballast - Furnished By Customer | 667150 | lb |
| Note (1) | ||
| Note (2) | ||
| Crawler Dimensions - Overall Width 259.1 cm (102 in) Treads | 38 | ft |
| Crawler Dimensions - Overall Width 200.7 cm (79 in) Treads, Standard | 36 | ft |
| Hoist | ||
| Ground Bearing Pressure - Note | ||
| Upper Works Overall Width - Including Standard Walkways | 41.9 | ft |
| Ground Bearing Pressure - Total Effective Bearing Area (259.1 cm/102 in) Treads | ||
| Swing | ||
| Planetary Propel | ||
| Ground Bearing Pressure - Total Effective Bearing Area (200.7 cm/79 in) Treads - Standard | ||
| Type | ||
| Components (1) | ||
| Power Requirements - Note | ||
| Drive | ||
| Power Requirements - 50 Hz | ||
| Power Requirements - Average Power Demand | ||
| Power Requirements - Voltage | ||
| Power Requirements - 60 Hz | ||
| System Voltage - Nominal | ||
| Power Requirements - Peak power | ||
| Rope Data - Boom Suspension - No. | ||
| Rope Data - Boom Suspension - Diameter | 3.25 | in |
| Type | ||
| Rope Data - Note | ||
| Rope Data - Dipper Trip - No. | ||
| Rope Data - Hoist - No. | ||
| Rope Data - Hoist - Diameter | 2.75 | in |
| Rope Data - Dipper Trip - Diameter | 0.75 | in |
| Crowd (1) | ||
| Crowd (2) | ||
| Dipper Capacities | ||
| Maximum Dumping Height | 28.9 | ft |
| Dipper Payload | 120 | ton (US) |
| Operating Weight | 3066000 | lb |
| Cutting Radius - Maximum | 80 | ft |
| Revolving Frame Tail Swing Radius | 30.5 | ft |
| Cutting Height - Maximum | 53.5 | ft |
| Radius of Level Floor | 56.1 | ft |
| Dumping Height - With Clearance to Open Dipper Door | 28.9 | ft |
| Note (1) | ||
| Note (2) | ||
| Components (2) |
