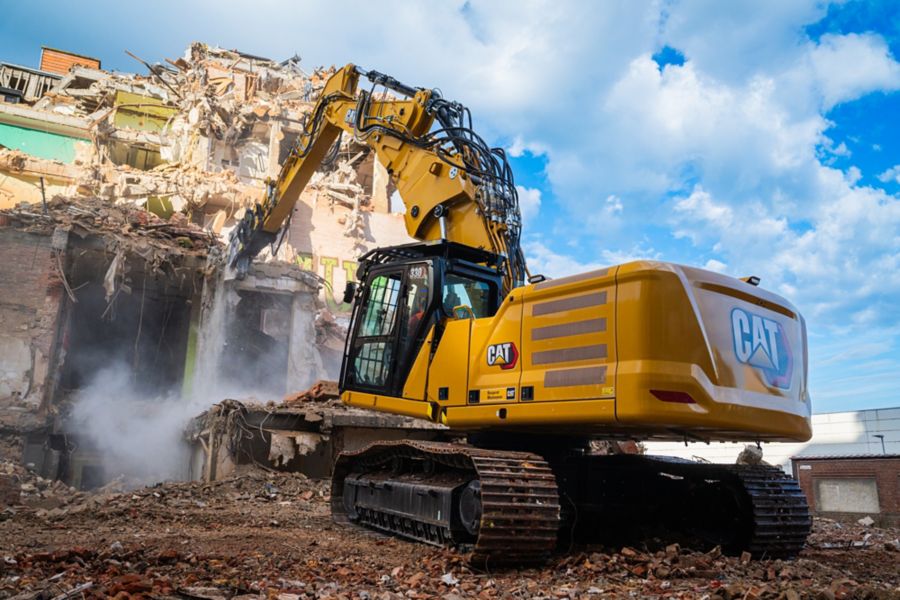

The Cat® 330 UHD is a versatile urban demolition machine with large attachment capability for 5-6 story work. Equipped with the latest technology and stability monitoring system for ultra-high demolition work, this 46-ton working machine maintains efficiency with the retrofit boom, using Cat Payload measurement and Cat 2D Grade. Combined with the 15-minute boom swap, the hydraulic variable undercarriage makes the setup fast and gives operators more uptime.
The Cat® 330 UHD is a versatile urban demolition machine with large attachment capability for 5-6 story work. Equipped with the latest technology and stability monitoring system for ultra-high demolition work, this 46-ton working machine maintains efficiency with the retrofit boom, using Cat Payload measurement and Cat 2D Grade. Combined with the 15-minute boom swap, the hydraulic variable undercarriage makes the setup fast and gives operators more uptime.

Brochures and Spec Sheets

Gallery

330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD 330 UHD

Specifications

Specification Value Unit
Engine Model
Net Power - ISO 9249 273 hp
Net Power - ISO 9249 (DIN) 277 hp (metric)
Engine Power - ISO 14396 275 hp
Engine Power - ISO 14396 (DIN) 279 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 428 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 4322 psi
Swing Speed 4.09 r/min
Swing Speed 9.63 r/min
Maximum Swing Torque 81130 lbf·ft
Operating Weight 101400 lb
Note (1)
Machine Weight - Retrofit Configuration 96800 lb
Note (2)
UHD in Cradle 18050 lb
Retrofit Boom in Cradle - R3.2CB2 Stick 10530 lb
2-Piece Retrofit Boom In Cradle - R3.2CB2 Stick 14810 lb
Fuel Tank Capacity 125.2 gal (US)
Cooling System 6.6 gal (US)
Engine Oil 25 gal (US)
Swing Drive 2.8 gal (US)
Final Drive - Each 1.7 gal (US)
Hydraulic System - Including Tank 81.9 gal (US)
Hydraulic Tank 38.8 gal (US)
DEF Tank 10.8 gal (US)
Note (1)
Shipping Height - Top of Cab 10.6 ft
Cab Height - With OPG 11.3 ft
Shipping Length 46.2 ft
Tail Swing Radius 10.3 ft
Counterweight Clearance 4.2 ft
Ground Clearance 1.5 ft
Track Length 16.5 ft
Track Length to Center of Rollers 13.3 ft
Working Gauge - Extended Position 9.3 ft
Shipping Gauge - Retracted Position 7.8 ft
Transport Width 8.2 ft
Machine Length - without Front, with Counterweight 28.3 ft
Machine Length - without Front and Counterweight 6.8 ft
Track Width - Extended 11.3 ft
Track Width - Retracted 11.7 ft
Note (2)
Maximum Pin Height at Stick Nose 66.8 ft
Maximum Weight at Stick Nose 7300 lb
Maximum Working Pin Height at Stick Nose - 1/2 57.6 ft
Maximum Working Reach at Stick Nose - 1/2 35.4 ft
Maximum Height at Stick Nose in Max Reach Position 38.6 ft
Maximum Reach at Stick Nose 43.7 ft
Note (1)
Note 1
Bucket
Maximum Pin Height at Stick Nose 36 ft
Maximum Weight at Stick Nose 8400 lb
Maximum Height at Stick Nose in Max Reach Position 6.7 ft
Maximum Reach at Stick Nose 32.8 ft
Maximum Digging Depth 18.5 ft
Maximum Reach - Ground Level 37.7 ft
Maximum Loading Height 30.6 ft
Minimum Loading Height 12.7 ft
Bucket Digging Force - ISO 40280 lbf
Stick Digging Force - ISO 28410 lbf
Note 1
Bucket
Maximum Digging Depth 22.1 ft
Maximum Reach - Ground Level 35.1 ft
Maximum Cutting Height 32.8 ft
Maximum Loading Height 23 ft
Minimum Loading Height 8.5 ft
Bucket Digging Force - ISO 40280 lbf
Stick Digging Force - ISO 28410 lbf
Air Conditioning

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • ELECTRICAL SYSTEM
  • CAT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
