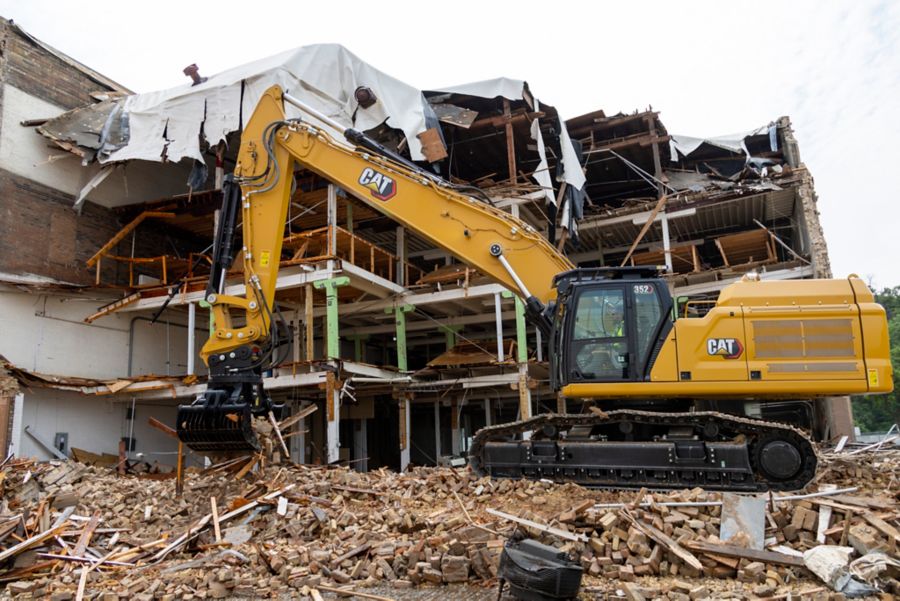

Demolition work has never been easier than with the Cat® 352 Straight Boom Excavator. This machine is designed to help you take on low-level demolition of buildings, bridges, and industrial infrastructure at a lower operating cost. Reach higher with larger attachment capabilities to maximize performance. Enjoy the versatility, precision, and efficiency offered by standard Cat technologies. Combined with synchronized maintenance and an Operator Protective Guards (OPG) cab, the 352 Straight Boom keeps you working longer and safer.

Demolition work has never been easier than with the Cat® 352 Straight Boom Excavator. This machine is designed to help you take on low-level demolition of buildings, bridges, and industrial infrastructure at a lower operating cost. Reach higher with larger attachment capabilities to maximize performance. Enjoy the versatility, precision, and efficiency offered by standard Cat technologies. Combined with synchronized maintenance and an Operator Protective Guards (OPG) cab, the 352 Straight Boom keeps you working longer and safer.

Brochures and Spec Sheets

Gallery

352 Straight Boom 352 Straight Boom 352 Straight Boom

Specifications

Specification Value Unit
Engine Model
Net Power - ISO 9249 443 hp
Net Power - ISO 9249 (DIN) 449 hp (metric)
Engine Power - ISO 14396 445 hp
Engine Power - ISO 14396 (DIN) 451 hp (metric)
Bore 5 in
Stroke 6 in
Displacement 763 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 3771 psi
Swing Speed 6.5 r/min
Maximum Swing Torque 139400 lbf·ft
Operating Weight 121000 lb
Note (1)
Note (2)
Fuel Tank Capacity 188.9 gal (US)
Cooling System 13.7 gal (US)
Engine Oil 10.6 gal (US)
Swing Drive 2.9 gal (US)
Final Drive - Each 2.6 gal (US)
Hydraulic System - Including Tank 145.3 gal (US)
Hydraulic Tank 57.3 gal (US)
DEF Tank 21.1 gal (US)
Note (1)
Shipping Height - Top of Cab 11.1 ft
Cab Height - With OPG 11.8 ft
Shipping Length 42.1 ft
Tail Swing Radius 12.6 ft
Counterweight Clearance 4.7 ft
Ground Clearance 2.3 ft
Track Length 17.6 ft
Track Length to Center of Rollers 14.2 ft
Track Gauge 7.8 ft
Transport Width 12.1 ft
Maximum Pin Height at Stick Nose 42.2 ft
Maximum Weight at Stick Nose 12456 lb
Note (1)
Maximum Digging Depth 19.8 ft
Maximum Cutting Height 48.1 ft
Maximum Loading Height 36 ft
Minimum Loading Height 14.4 ft
Maximum Depth Cut for 2440 mm (8'0") Level Bottom 19.2 ft
Maximum Vertical Wall Digging Depth 16.1 ft
Bucket Digging Force -ISO 60250 lbf
Stick Digging Force - ISO 41360 lbf
Air Conditioning
Recyclability

Standard Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • ENGINE
  • SAFETY AND SECURITY
  • CAT TECHNOLOGY
  • UNDERCARRIAGE AND STRUCTURES
