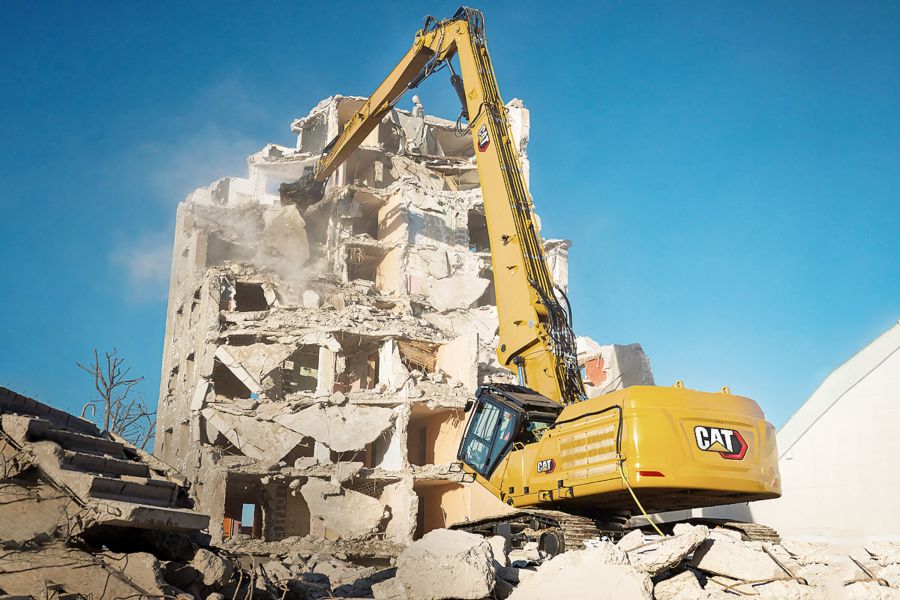

The Cat® 352 UHD reaches where other machines cannot and provides best-in-class work tool capability. You can tear down structures all day with speed and precision – you simply won’t find a better 60-ton class choice for demolition.
The Cat® 352 UHD reaches where other machines cannot and provides best-in-class work tool capability. You can tear down structures all day with speed and precision – you simply won’t find a better 60-ton class choice for demolition.

Brochures and Spec Sheets

Gallery

352 UHD 352 UHD 352 UHD 352 UHD 352 UHD 352 UHD 352 UHD 352 UHD 352 UHD 352 UHD 352 UHD

Specifications

Specification Value Unit
Engine Model
Net Power - ISO 9249 443 hp
Net Power - ISO 9249 (DIN) 448.7 hp (metric)
Engine Power - ISO 14396 445 hp
Engine Power - ISO 14396 (DIN) 451.4 hp (metric)
Bore 5 in
Stroke 6 in
Displacement 763 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 3771 psi
Swing Speed 4.4 r/min
Swing Speed 8.3 r/min
Maximum Swing Torque 139000 lbf·ft
Operating Weight 142200 lb
Note (1)
Machine Weight - Retrofit Configuration 138900 lb
Note (3)
UHD in Cradle 26000 lb
Retrofit Boom in Cradle - R3.9 TB Stick 16820 lb
Retrofit Boom in Cradle - R3.35 TB Stick 16440 lb
Retrofit Boom in Cradle - R2.9 TB Stick 15760 lb
Fuel Tank Capacity 188.9 gal (US)
Cooling System 13.7 gal (US)
Engine Oil 10.6 gal (US)
Swing Drive - Each 2.8 gal (US)
Final Drive - Each 2.5 gal (US)
Hydraulic System - Including Tank 145.3 gal (US)
Hydraulic Tank 57.3 gal (US)
DEF Tank 21.1 gal (US)
Note (1)
Shipping Height - Top of Cab 11.1 ft
Cab Height - With OPG 11.8 ft
Shipping Length 61.8 ft
Tail Swing Radius 12.3 ft
Counterweight Clearance 4.7 ft
Ground Clearance 1.7 ft
Track Length 18.9 ft
Track Length to Center of Rollers 15.6 ft
Working Gauge - Extended Position 11.1 ft
Shipping Gauge - Retracted Position 7.8 ft
Transport Width 10.7 ft
Machine Length - without Front, with Counterweight 25.4 ft
Machine Length - without Front and Counterweight 24.9 ft
Track Width - Extended 13.1 ft
Track Width - Retracted 9.8 ft
Note (2)
Maximum Pin Height at Stick Nose 90.8 ft
Maximum Weight at Stick Nose 8157 lb
Maximum Working Pin Height at Stick Nose - 1/2 75.2 ft
Maximum Working Reach at Stick Nose - 1/2 45.4 ft
Maximum Height at Stick Nose in Max Reach Position 52.8 ft
Maximum Reach at Stick Nose 51.8 ft
Note (1)
Note 1
Bucket
Maximum Pin Height at Stick Nose 39.8 ft
Maximum Weight at Stick Nose 12830 lb
Maximum Height at Stick Nose in Max Reach Position 7.7 ft
Maximum Reach at Stick Nose 36.5 ft
Maximum Digging Depth 16.9 ft
Maximum Reach - Ground Level 41.9 ft
Maximum Loading Height 33.6 ft
Minimum Loading Height 15 ft
Bucket Digging Force - ISO 60250 lbf
Stick Digging Force - ISO 44740 lbf
Note 1
Bucket
Maximum Digging Depth 21.9 ft
Maximum Reach - Ground Level 39 ft
Maximum Cutting Height 35.1 ft
Maximum Loading Height 24.6 ft
Minimum Loading Height 10 ft
Bucket Digging Force - ISO 60250 lbf
Stick Digging Force - ISO 44740 lbf
Air Conditioning

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
