The Cat® 336 lowers cost per yard with fuel-efficient hydraulics. Standard Cat Grade cuts rework, while VisionLink™ and dealer support maximize uptime and long-term value.
The Cat® 336 Excavator is built to move more with less fuel. A proven Cat® engine and advanced hydraulics deliver fast cycles, strong digging force, and reduced operating costs. Reinforced booms and a durable undercarriage extend machine life in tough terrain, while the cab maximizes operator comfort with intuitive controls. Paired with Cat buckets, thumbs, and hammers, the 336 adapts to multiple applications, increasing machine utilization and investment value.

Brochures and Spec Sheets

Gallery

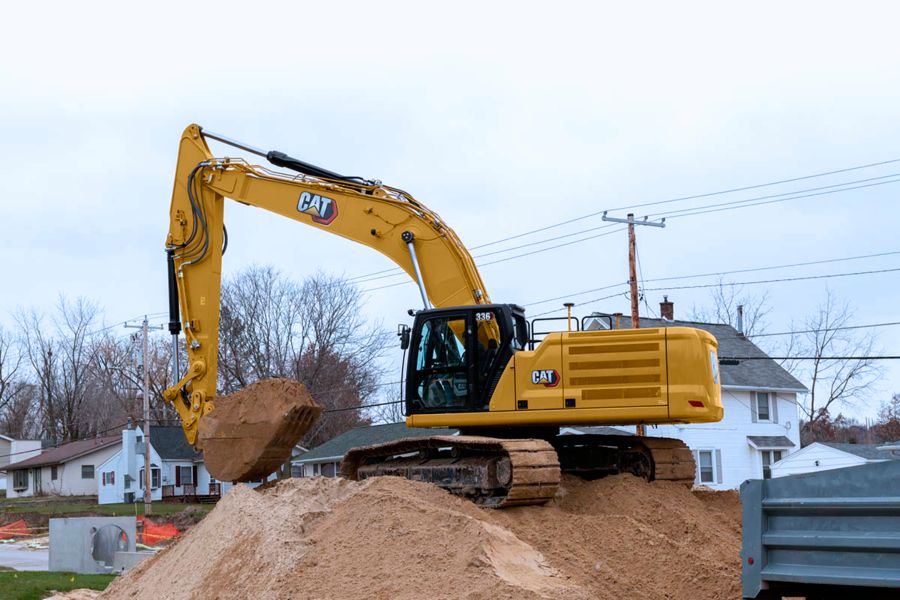

336 336 336 336 336

Specifications

Specification Value Unit
Net Power - ISO 9249 300 hp
Net Power - ISO 9249 (DIN) 304 hp (metric)
Engine Model
Engine Power - ISO 14396 302 hp
Engine Power - ISO 14396 (DIN) 306 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 428 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow 148 gpm
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 4264 psi
Maximum Swing Torque 105250 lbf·ft
Note (1)
Operating Weight 81100 lb
Fuel Tank Capacity 158.5 gal (US)
Cooling System 10.2 gal (US)
Engine Oil 6.6 gal (US)
Swing Drive - Each 4.8 gal (US)
Final Drive - Each 2.1 gal (US)
Hydraulic System - Including Tank 98.5 gal (US)
Hydraulic Tank 42.5 gal (US)
DEF Tank 13.2 gal (US)
Transport Width 10.5 ft
Boom
Stick
Bucket
Shipping Height - Top of Cab 10.5 ft
Handrail Height 10.5 ft
Shipping Length 36.8 ft
Tail Swing Radius 11.7 ft
Counterweight Clearance 4.2 ft
Ground Clearance 1.8 ft
Track Length 16.6 ft
Track Length to Center of Rollers 13.3 ft
Track Gauge 9 ft
Transport Width - 850 mm (33”) Shoes 11.9 ft
Maximum Digging Depth 26.11 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 38.7 ft
Maximum Cutting Height 35.3 ft
Maximum Loading Height 24.6 ft
Minimum Loading Height 6.2 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 26.6 ft
Maximum Vertical Wall Digging Depth 21.4 ft
Bucket Digging Force - ISO 47190 lbf·ft
Stick Digging Force - ISO 32480 lbf·ft
Recyclability
Air Conditioning

Standard Equipment

  • NOTE
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
  • DELUXE CAB
  • PREMIUM CAB

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • UNDERCARRIAGE AND STRUCTURES
  • DELUXE CAB
  • PREMIUM CAB
