The Cat® 350 is known for its premier productivity, low owning and operating costs, and easy-to-use Cat technology. With a bucket capacity of up to 3.2 m3 (4.2 yd3) and outstanding digging force and swing torque, the 350 can move tons of material for top production. The cab features large windows at the front, sides, and rear, giving excellent visibility in all directions from the operator's seat. Narrow front cab pillars allow a wider field of view to the front. The 350 will help you get tons of work done on grade and on time.

Availability may vary by region, consult your Cat® Dealer for more details.
The Cat® 350 is known for its premier productivity, low owning and operating costs, and easy-to-use Cat technology. With a bucket capacity of up to 3.2 m3 (4.2 yd3) and outstanding digging force and swing torque, the 350 can move tons of material for top production. The cab features large windows at the front, sides, and rear, giving excellent visibility in all directions from the operator's seat. Narrow front cab pillars allow a wider field of view to the front. The 350 will help you get tons of work done on grade and on time.

Availability may vary by region, consult your Cat® Dealer for more details.

Brochures and Spec Sheets

Gallery

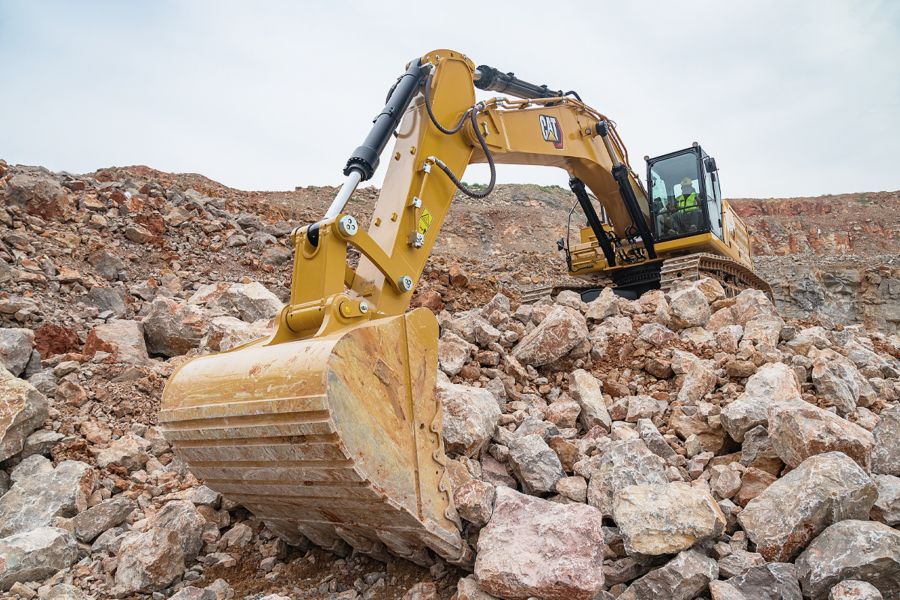

350 350 350 350

Specifications

Specification Value Unit
Net Power - ISO 9249 413 hp
Net Power - ISO 9249 (DIN) 419 hp (metric)
Engine Model
Engine Power - ISO 14396 414 hp
Engine Power - ISO 14396 (DIN) 420 hp (metric)
Bore 5 in
Stroke 6 in
Displacement 568 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow 206 gpm
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 3727 psi
Maximum Swing Torque 139,275 lbf·ft
Note (1)
Operating Weight 105,100 lb
Fuel Tank Capacity 179.6 gal (US)
Cooling System 12.7 gal (US)
Engine Oil 8.5 gal (US)
Swing Drive 4 gal (US)
Final Drive - Each 2.9 gal (US)
Hydraulic System - Including Tank 145.3 gal (US)
Hydraulic Tank 57.3 gal (US)
DEF Tank 21.1 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 10.8 ft
Handrail Height 11.2 ft
Shipping Length 39 ft
Tail Swing Radius 12.4 ft
Counterweight Clearance 4.5 ft
Ground Clearance 1.8 ft
Track Length 17.9 ft
Track Length to Center of Rollers 14.4 ft
Track Gauge 9 ft
Transport Width - 600 mm (24”) Shoes 10.11 ft
Maximum Digging Depth 26.11 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 39.8 ft
Maximum Cutting Height 35.1 ft
Maximum Loading Height 24.3 ft
Minimum Loading Height 7.2 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 26.6 ft
Maximum Vertical Wall Digging Depth 19.2 ft
Bucket Digging Force - ISO 60,160 lbf·ft
Stick Digging Force - ISO 41,090 lbf·ft
Air Conditioning

Standard Equipment

  • NOTE
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
  • DELUXE CAB
  • PREMIUM CAB

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
  • DELUXE CAB
  • PREMIUM CAB
