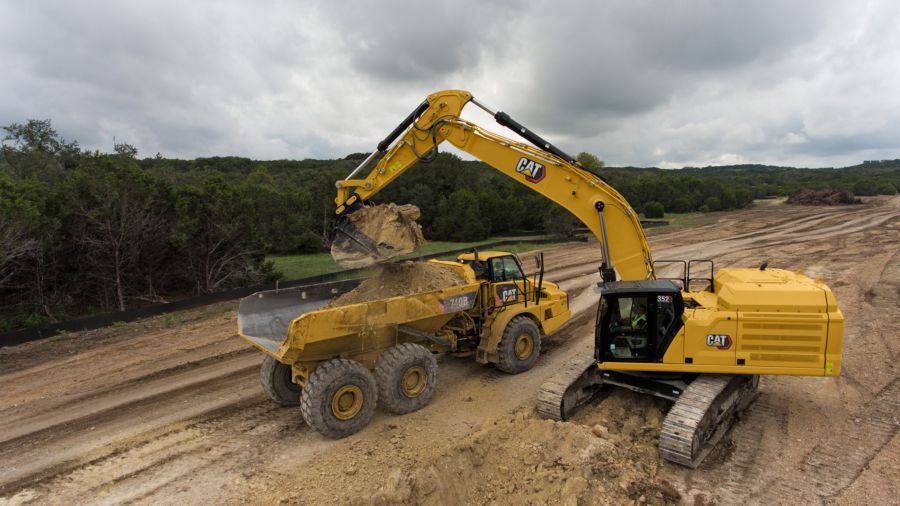

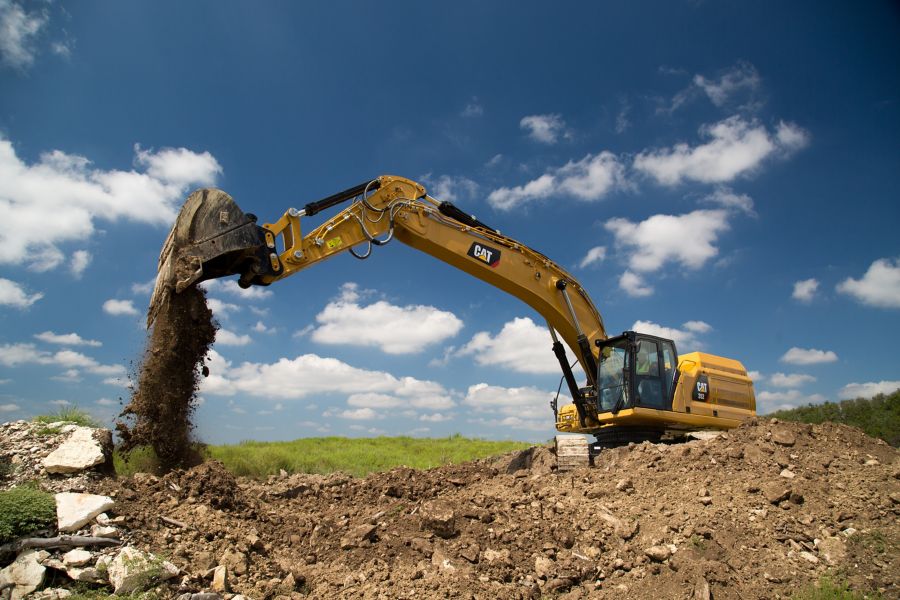

352
High power and durability make the Cat® 352 excavator perfect for big jobs requiring big tools. Long maintenance intervals and low fuel consumption help control your costs without sacrificing performance.
High power and durability make the Cat® 352 excavator perfect for big jobs requiring big tools. Long maintenance intervals and low fuel consumption help control your costs without sacrificing performance.
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Engine Power - ISO 9249 | 443 | hp |
| Engine Model | ||
| Bore | 5 | in |
| Stroke | 6 | in |
| Displacement | 763 | in³ |
| Note | ||
| Note (1) | ||
| Note (2) | ||
| Note (3) | ||
| Main System - Maximum Flow | 206 | gpm |
| Maximum Pressure - Equipment | 5076 | psi |
| Maximum Pressure - Equipment - Lift Mode | 5511 | psi |
| Maximum Pressure - Travel | 5076 | psi |
| Maximum Pressure - Swing | 3771 | psi |
| Swing Speed | 8.3 | r/min |
| Maximum Swing Torque | 139000 | ft·lbf |
| Operating Weight | 111300 | lb |
| Note (1) | ||
| Operating Weight | ||
| Note (2) | ||
| Fuel Tank Capacity | 188.9 | gal (US) |
| Cooling System | 13.7 | gal (US) |
| Engine Oil - With Filter | 10.6 | gal (US) |
| Swing Drive | 2.8 | gal (US) |
| Final Drive - Each | 2.5 | gal (US) |
| Hydraulic System - Including Tank | 145.3 | gal (US) |
| Hydraulic Tank - Including Suction Pipe | 57.3 | gal (US) |
| DEF Tank | 21.1 | gal (US) |
| Boom | ||
| Stick | ||
| Bucket | ||
| Shipping Height - Top of Cab | 10.7 | ft |
| Handrail Height | 11.1 | ft |
| Shipping Length | 39.1 | ft |
| Tail Swing Radius | 12.4 | ft |
| Counterweight Clearance | 1280 | mm |
| Ground Clearance | 1.7 | ft |
| Track Length | 17.7 | ft |
| Track Length to Center of Rollers | 14.4 | ft |
| Track Gauge | 9 | ft |
| Transport Width - 600 mm (24”) Shoes | 10.11 | ft |
| Maximum Digging Depth | 26.11 | ft |
| Boom | ||
| Stick | ||
| Bucket | ||
| Maximum Reach at Ground Level | 39.1 | ft |
| Maximum Cutting Height | 35.2 | ft |
| Maximum Loading Height | 24.4 | ft |
| Minimum Loading Height | 7.3 | ft |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 26.6 | ft |
| Maximum Vertical Wall Digging Depth | 19.3 | ft |
| Bucket Digging Force - ISO | 60000 | lbf |
| Stick Digging Force - ISO | 41100 | lbf |
Standard Equipment
- NOTE
- CAT TECHNOLOGY
- ELECTRICAL SYSTEM
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
- DELUXE CAB
- PREMIUM CAB
Optional Equipment
- NOTE
- BOOMS, STICKS AND LINKAGES
- CAT TECHNOLOGY
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
- DELUXE CAB
- PREMIUM CAB
