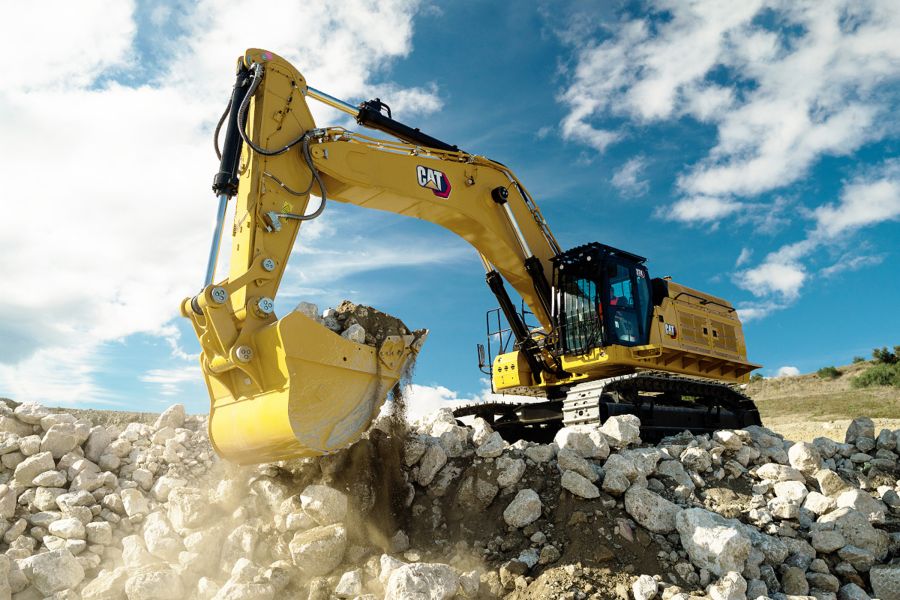

No matter how hard the work, the Cat® 374 Excavator is built to do it. Three modes of operation, Power, Smart, and Eco, help operators reduce fuel consumption and optimize performance. Built for durability, the 374 is structurally sound with reinforced track rollers, booms, sticks, upper and lower frames. Simple, easy-to-use onboard technology such as Cat Payload, Cat Grade with 2D, Lift Assist, 2D E-Fence, and Work Tool Recognition helps boost efficiency and jobsite safety. The deluxe and standard cab options feature operator-pleasing ergonomic amenities such as the front-facing control panel, keyless pushbutton start, and large touchscreen monitor with jog dial keys.
No matter how hard the work, the Cat® 374 Excavator is built to do it. Three modes of operation, Power, Smart, and Eco, help operators reduce fuel consumption and optimize performance. Built for durability, the 374 is structurally sound with reinforced track rollers, booms, sticks, upper and lower frames. Simple, easy-to-use onboard technology such as Cat Payload, Cat Grade with 2D, Lift Assist, 2D E-Fence, and Work Tool Recognition helps boost efficiency and jobsite safety. The deluxe and standard cab options feature operator-pleasing ergonomic amenities such as the front-facing control panel, keyless pushbutton start, and large touchscreen monitor with jog dial keys.

Brochures and Spec Sheets

Gallery

374 374 374 374 374

Specifications

Specification Value Unit
Net Power - ISO 9249 484 hp
Net Power - ISO 9249 (DIN) 491 hp (metric)
Engine Model
Engine Power - ISO 14396 485 hp
Engine Power - ISO 14396 (DIN) 492 hp (metric)
Bore 5.4 in
Stroke 6.7 in
Displacement 928 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow - Implement 237 gpm
Maximum Pressure - Equipment 5366 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 5076 psi
Maximum Swing Torque 220000 lbf·ft
Note (1)
Operating Weight 162900 lb
Note
Fuel Tank Capacity 243 gal (US)
Cooling System 19 gal (US)
Engine Oil 16 gal (US)
Swing Drive 5 gal (US)
Final Drive - Each 9 gal (US)
Hydraulic System - Including Tank 164 gal (US)
Hydraulic Tank 86 gal (US)
DEF Tank 21 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 11.8 ft
Handrail Height 13 ft
Shipping Length 44.9 ft
Tail Swing Radius 13.8 ft
Counterweight Clearance 4.1 ft
Ground Clearance 2.6 ft
Track Length 19.3 ft
Track Length to Center of Rollers 15.5 ft
Track Gauge 11.2 ft
Transport Width 11.1 ft
Note
Maximum Digging Depth 28.1 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 43.2 ft
Maximum Cutting Height 41.2 ft
Maximum Loading Height 27.7 ft
Minimum Loading Height 10.1 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 27.8 ft
Maximum Vertical Wall Digging Depth 22.8 ft
Bucket Digging Force - ISO 80550 lbf·ft
Stick Digging Force - ISO 66390 lbf·ft
Air Conditioning

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
