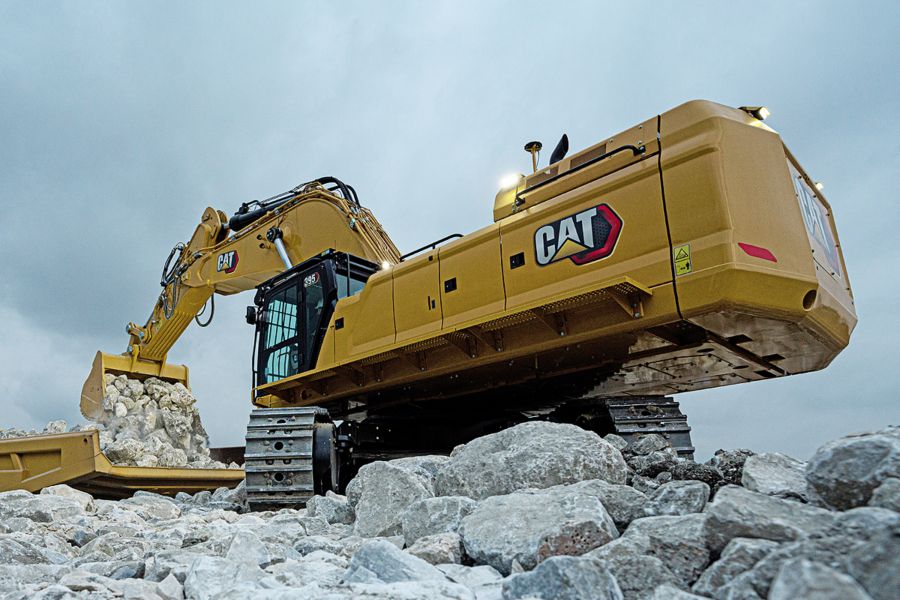

The Cat® 395 Excavator is a powerhouse that gets the job done every time. Built with the 540 horsepower Cat C18 engine, this machine is a groundbreaking rockstar with fast cycle times and a powerful digging force that eases bucket penetration and digs down deep with maximum digging depths from 7.2 m (23.7 ft) up to 11.7m (38.5 ft). Equipped with the latest Cat technology, the 395 helps you make informed and smart decisions to help improve jobsite efficiency, increase productivity, and return safely home every day. If you want to generate big-time results for your business, put the 395 next generation excavator to work. It is the top choice in its size class.
The Cat® 395 Excavator is a powerhouse that gets the job done every time. Built with the 540 horsepower Cat C18 engine, this machine is a groundbreaking rockstar with fast cycle times and a powerful digging force that eases bucket penetration and digs down deep with maximum digging depths from 7.2 m (23.7 ft) up to 11.7m (38.5 ft). Equipped with the latest Cat technology, the 395 helps you make informed and smart decisions to help improve jobsite efficiency, increase productivity, and return safely home every day. If you want to generate big-time results for your business, put the 395 next generation excavator to work. It is the top choice in its size class.

Brochures and Spec Sheets

Gallery

395 395 395 395 395 395 395 395 395 395 395 395 395 395 395 395 395 395 395 395

Specifications

Specification Value Unit
Net Power - ISO 9249 542 hp
Net Power - ISO 9249 (DIN) 550 hp (metric)
Engine Model
Engine Power - ISO 14396 543 hp
Engine Power - ISO 14396 (DIN) 551 hp (metric)
Bore 6 in
Stroke 7 in
Displacement 1105 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow - Implement 281 gpm
Maximum Pressure - Equipment 5366 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 4496 psi
Maximum Swing Torque 267333 lbf·ft
Note (1)
Operating Weight 207400 lb
Note (1)
Fuel Tank Capacity 322 gal (US)
Cooling System 19 gal (US)
Engine Oil 18 gal (US)
Swing Drive 6 gal (US)
Final Drive - Each 5 gal (US)
Hydraulic System - Including Tank 196 gal (US)
Hydraulic Tank 98 gal (US)
DEF Tank 21 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 12 ft
Handrail Height 12.4 ft
Shipping Length 49.6 ft
Tail Swing Radius 15.11 ft
Counterweight Clearance 5.5 ft
Ground Clearance 2.9 ft
Track Length 20.1 ft
Track Length to Center of Rollers 16.1 ft
Track Gauge 11.6 ft
Transport Width 12.9 ft
Note
Maximum Digging Depth 31.9 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 48.3 ft
Maximum Cutting Height 44.5 ft
Maximum Loading Height 30.4 ft
Minimum Loading Height 9.11 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 31.4 ft
Maximum Vertical Wall Digging Depth 22.3 ft
Bucket Digging Force - ISO 86100 lbf·ft
Stick Digging Force - ISO 68540 lbf·ft
Recyclability
Air Conditioning

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
  • OTHER OPTIONAL CONFIGURATION
