340 Long Reach

340 Long Reach
Cat
Request a Quote Find a Location

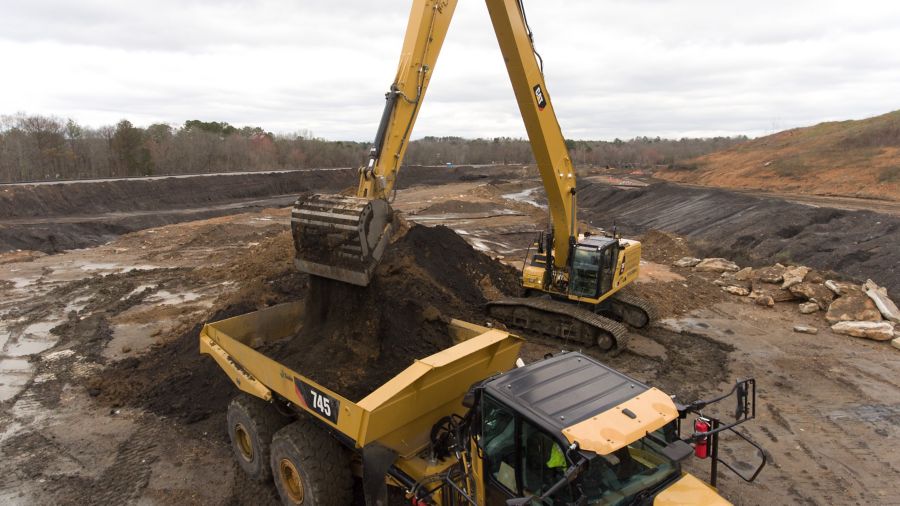

The Cat® 340 LRE helps you hit your targets all day long. With standard Cat® Payload and 2D Grade, you can reach up to distances nearly 60 feet (18.28 meters) away. Add in an ergonomic cab, long maintenance intervals that lower your maintenance costs, and a power system that improves fuel efficiency, and you won't find a better excavator for cleaning ditches, canals, and waterways or doing heavier-duty work like dredging and long-distance excavation.
The Cat® 340 LRE helps you hit your targets all day long. With standard Cat® Payload and 2D Grade, you can reach up to distances nearly 60 feet (18.28 meters) away. Add in an ergonomic cab, long maintenance intervals that lower your maintenance costs, and a power system that improves fuel efficiency, and you won't find a better excavator for cleaning ditches, canals, and waterways or doing heavier-duty work like dredging and long-distance excavation.

Brochures and Spec Sheets

Gallery

340 Long Reach 340 Long Reach 340 Long Reach 340 Long Reach 340 Long Reach

Specifications

Specification Value Unit
Net Power - ISO 9249 346 hp
Net Power - ISO 9249 (DIN) 351 hp (metric)
Engine Model
Engine Power - ISO 14396:2002 347 hp
Engine Power - ISO 14396 (DIN) 352 hp (metric)
Bore 5 in
Stroke 6 in
Displacement 568 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5076 psi
Maximum Pressure - Equipment - Lift Mode 5511 psi
Maximum Pressure - Travel 5076 psi
Maximum Pressure - Swing 4264 psi
Maximum Swing Torque 105,471 lbf·ft
Operating Weight 96500 lb
Note
Fuel Tank Capacity 158.5 gal (US)
Cooling System 10.5 gal (US)
Engine Oil 8.5 gal (US)
Swing Drive 4.8 gal (US)
Final Drive - Each 2.1 gal (US)
Hydraulic System - Including Tank 98.5 gal (US)
Hydraulic Tank 42.5 gal (US)
DEF Tank 21.1 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 11.2 ft
Handrail Height 11.1 ft
Shipping Length 50.3 ft
Tail Swing Radius 11.6 ft
Counterweight Clearance 4.8 ft
Ground Clearance 2.3 ft
Track Length 16.5 ft
Track Length to Center of Rollers 13.3 ft
Track Gauge 9.6 ft
Transport Width 12.4 ft
Maximum Digging Depth 42.8 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 59.3 ft
Maximum Cutting Height 51.3 ft
Maximum Loading Height 41.9 ft
Minimum Loading Height 10.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 42.5 ft
Bucket Digging Force - ISO 31590 lbf
Stick Digging Force - ISO 20750 lbf
Air Conditioning

Standard Equipment

  • NOTE:
  • BOOM AND STICK
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES
