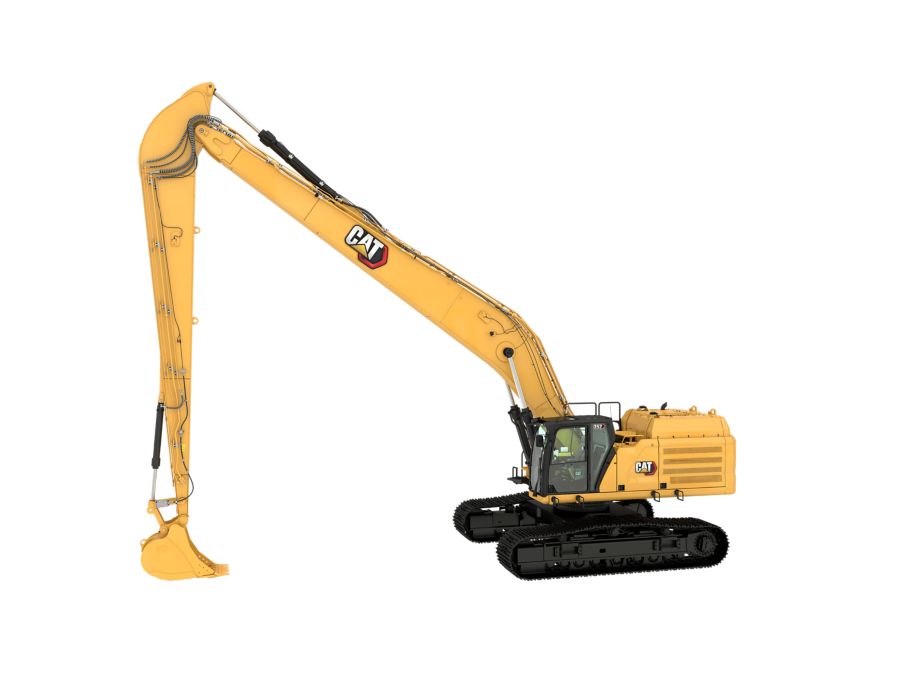

352 Long Reach
The Cat® 352 Long Reach Excavator (LRE) combines premium performance and simple-to-use technology with steep slope capability reaching out to 19.6 m (64 ft) and dig depth of 13.04 m (43 ft). The Variable Gauge heavy-duty high, wide undercarriage, and extra counterweight provide a stable platform for long-reach digging. When your job calls for heavier work at a distance, call on Cat Long Reach Excavation Excavators. They excel in long-distance applications, including general excavation, dredging, ditch cleaning, settling pond clean out, waterway and canal maintenance, vegetation control with mulcher attachment, and loose material transfer.
The Cat® 352 Long Reach Excavator (LRE) combines premium performance and simple-to-use technology with steep slope capability reaching out to 19.6 m (64 ft) and dig depth of 13.04 m (43 ft). The Variable Gauge heavy-duty high, wide undercarriage, and extra counterweight provide a stable platform for long-reach digging. When your job calls for heavier work at a distance, call on Cat Long Reach Excavation Excavators. They excel in long-distance applications, including general excavation, dredging, ditch cleaning, settling pond clean out, waterway and canal maintenance, vegetation control with mulcher attachment, and loose material transfer.
Brochures and Spec Sheets
- 352 (08D) Long Reach Excavator - Technical Specifications (Europe, N Am)
- Super Long Reach and Long Reach Excavation Family Brochure (Europe, N Am)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Net Power - ISO 9249 | 443 | hp |
| Net Power - ISO 9249 (DIN) | 449 | hp (metric) |
| Engine Model | ||
| Engine Power - ISO 14396:2002 | 445 | hp |
| Engine Power - ISO 14396 (DIN) | 451 | hp (metric) |
| Bore | 5 | in |
| Stroke | 6 | in |
| Displacement | 763 | in³ |
| Biodiesel Capability | ||
| Emissions | ||
| Note (1) | ||
| Note (2) | ||
| Maximum Flow - Main System | 206 | gpm |
| Maximum Pressure - Equipment | 5076 | psi |
| Maximum Pressure - Equipment - Lift Mode | 5511 | psi |
| Maximum Pressure - Travel | 5076 | psi |
| Maximum Pressure - Swing | 3771 | psi |
| Maximum Swing Torque | 139000 | lbf·ft |
| Operating Weight | 128100 | lb |
| Note | ||
| Fuel Tank Capacity | 188.9 | gal (US) |
| Cooling System | 13.7 | gal (US) |
| Engine Oil - With Filter | 10.6 | gal (US) |
| Swing Drive | 2.8 | gal (US) |
| Final Drive - Each | 2.5 | gal (US) |
| Hydraulic System - Including Tank | 145.3 | gal (US) |
| Hydraulic Tank | 57.3 | gal (US) |
| DEF Tank | 21.1 | gal (US) |
| Boom | ||
| Stick | ||
| Bucket | ||
| Shipping Height - Top of Cab | 11.1 | ft |
| Handrail Height | 11.6 | ft |
| Shipping Length | 53.9 | ft |
| Tail Swing Radius | 12.3 | ft |
| Counterweight Clearance | 4.7 | ft |
| Ground Clearance | 2.3 | ft |
| Track Length | 17.6 | ft |
| Track Length to Center of Rollers | 14.2 | ft |
| Track Gauge | 10.5 | ft |
| Transport Width | 13.5 | ft |
| Maximum Digging Depth | 42.8 | ft |
| Boom | ||
| Stick | ||
| Bucket | ||
| Maximum Reach at Ground Level | 64.4 | ft |
| Maximum Cutting Height | 48.2 | ft |
| Maximum Loading Height | 39.4 | ft |
| Minimum Loading Height | 7.3 | ft |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 42.5 | ft |
| Bucket Digging Force - ISO | 31700 | lbf |
| Stick Digging Force - ISO | 23380 | lbf |
| Air Conditioning |
Standard Equipment
- NOTE
- Boom and Stick
- Cab
- Cat Technology
- Electrical System
- Engine
- Hydrauilc System
- Safety and Security
- Service and Maintenance
- Undercarriage and Structures
Optional Equipment
- NOTE
- Cab
- Cat Technology
- Engine
- Hydraulic System
- Safety and Security
- Service and Maintenance
- Undercarriage and Structures
