The Cat® 323 moves more material faster with powerful hydraulics and standard Cat technologies for improved digging performance. Built for roadwork, heavy utility, and mass excavation, it helps reduce rework, lower fuel consumption, and cut cost per ton.
The Cat® 323 moves more material faster with powerful hydraulics and standard Cat technologies for improved digging performance. Built for roadwork, heavy utility, and mass excavation, it helps reduce rework, lower fuel consumption, and cut cost per ton.

Brochures and Spec Sheets

Gallery

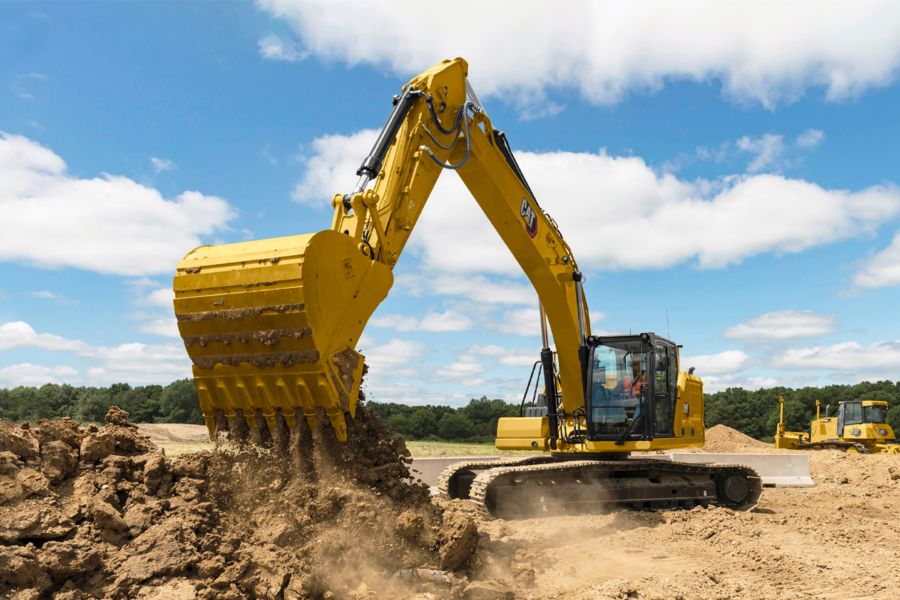

323 323 323 323 323

Specifications

Specification Value Unit
Net Power - ISO 9249 172 hp
Net Power - ISO 9249 (DIN) 175 hp (metric)
Engine Model
Engine Power - ISO 14396 174 hp
Engine Power - ISO 14396 (DIN) 176 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 428 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Equipment - Lift Mode 5510 psi
Maximum Pressure - Travel 4974 psi
Maximum Pressure - Swing 3988 psi
Swing Speed* 11.25 r/min
Maximum Swing Torque 60300 lbf·ft
Note (1)
Operating Weight 55,100 lb
Note
Fuel Tank Capacity 91.1 gal (US)
Cooling System 6.6 gal (US)
Engine Oil 6.6 gal (US)
Swing Drive 1.6 gal (US)
Final Drive - Each 1.3 gal (US)
Hydraulic System - Including Tank 61.8 gal (US)
Hydraulic Tank 30.4 gal (US)
DEF Tank 10.8 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 9.7 ft
Handrail Height 9.7 ft
Shipping Length 31.3 ft
Tail Swing Radius 9.3 ft
Counterweight Clearance 3.4 ft
Ground Clearance 1.5 ft
Track Length 14.6 ft
Length to Center of Rollers 12 ft
Track Gauge 7.8 ft
Transport Width 10.4 ft
Maximum Digging Depth 22.1 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 32.4 ft
Maximum Cutting Height 31 ft
Maximum Loading Height 21.3 ft
Minimum Loading Height 7.1 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 21.5 ft
Maximum Vertical Wall Digging Depth 18.8 ft
Bucket Digging Force - ISO 31496 lbf
Stick Digging Force - ISO 23987 lbf
Air Conditioning

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • UNDERCARRIAGE AND STRUCTURES
