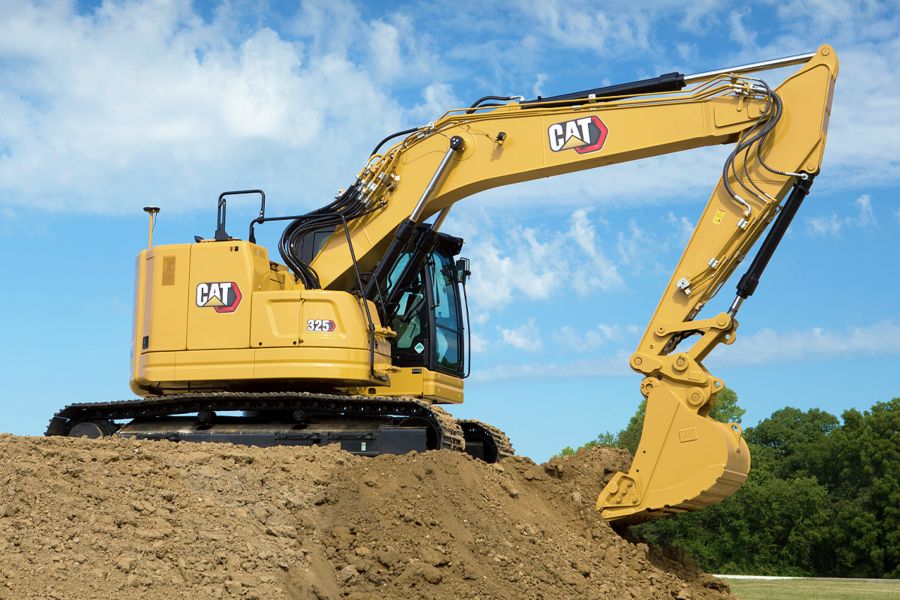

The Cat® 325 Excavator delivers powerful performance with intuitive technology to help operators work faster and more accurately. Perfect for utilities, roadwork, and urban sites, its compact radius design fits tight spaces while a fuel-efficient power system and extended service intervals help lower operating costs.
The Cat® 325 Excavator delivers powerful performance with intuitive technology to help operators work faster and more accurately. Perfect for utilities, roadwork, and urban sites, its compact radius design fits tight spaces while a fuel-efficient power system and extended service intervals help lower operating costs.

Brochures and Spec Sheets

Gallery

325 325 325 325 325 325 325 325 325 325 325 325 325 325 325 325 325 325

Specifications

Specification Value Unit
Net Power - ISO 9249 172 hp
Net Power - ISO 9249 (DIN) 175 hp (metric)
Engine Model
Engine Power - ISO 14396 174 hp
Engine Power - ISO 14396 (DIN) 176 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 269 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Equipment - Lift Mode 5510 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 3990 psi
Swing Speed* 11.12 r/min
Maximum Swing Torque 60480 lbf·ft
Note (1)
Operating Weight 62600 lb
Note
Fuel Tank Capacity 82.7 gal (US)
Cooling System 6.6 gal (US)
Engine Oil 4 gal (US)
Swing Drive 1.5 gal (US)
Final Drive - Each 1.2 gal (US)
Hydraulic System - Including Tank 60.8 gal (US)
Hydraulic Tank 29.3 gal (US)
DEF Tank 6.9 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 10.1 ft
Handrail Height 10.5 ft
Shipping Length 29.2 ft
Tail Swing Radius 5.11 ft
Counterweight Clearance 3.3 ft
Ground Clearance 1.5 ft
Length to Center of Rollers 12 ft
Track Length 14.7 ft
Track Gauge 7.1 ft
Transport Width - 790 mm (31 in) Shoes 10.5 ft
Maximum Digging Depth 22 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 32.1 ft
Maximum Cutting Height 36 ft
Maximum Loading Height 25.11 ft
Minimum Loading Height 9.9 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 21.5 ft
Maximum Vertical Wall Digging Depth 16 ft
Bucket Digging Force - ISO 33720 lbf
Stick Digging Force - ISO 23830 lbf
Air Conditioning
Recyclability

Standard Equipment

  • NOTE
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOMS AND STICKS
  • CAB
  • CAT TECHNOLOGIES
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • UNDERCARRIAGE AND STRUCTURES - 190 MM (7.5") TRACK PITCH
  • UNDERCARRIAGE AND STRUCTURES - 203 MM (8") TRACK PITCH
