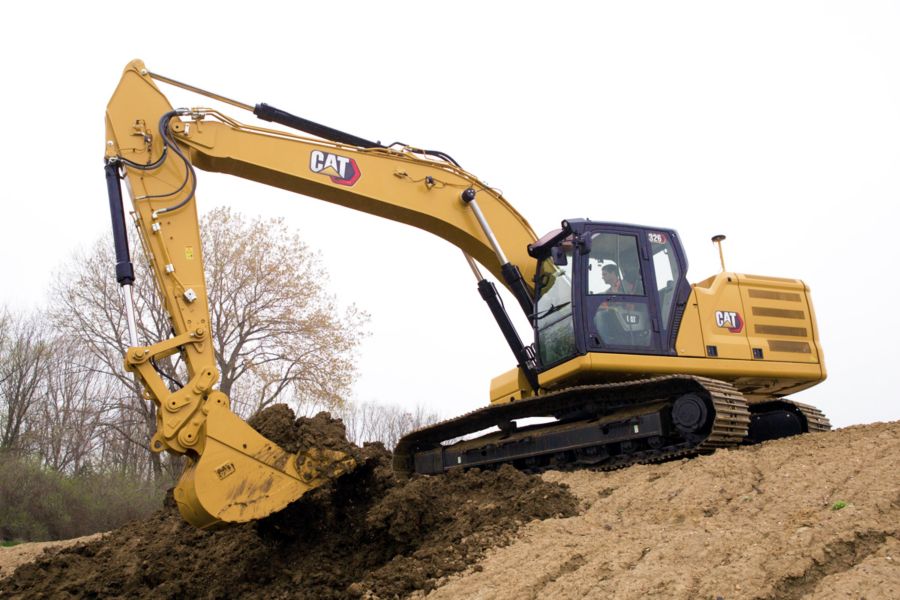

326
The Cat® 326 Excavator brings premium performance with simple-to-use technologies to boost your operator efficiencies. Combine these features with an ergonomic cab, longer maintenance intervals, and a power system that reduces fuel and you have a low-cost-per-unit-of-production excavator that’s perfect for medium to heavy-duty applications.
The Cat® 326 Excavator brings premium performance with simple-to-use technologies to boost your operator efficiencies. Combine these features with an ergonomic cab, longer maintenance intervals, and a power system that reduces fuel and you have a low-cost-per-unit-of-production excavator that’s perfect for medium to heavy-duty applications.
Brochures and Spec Sheets
- 326 (07H) Hydraulic Excavator - Product Brochure (Aus-NZ, Chile, Colombia, Europe, Japan, N Am, Türkiye)
- 326 (07H) Hydraulic Excavator - Technical Specifications (N Am)
- 326 (07H) Hydraulic Excavator - Technical Specifications (Chile, Colombia, Europe, Türkiye)
- 326 (07H) Hydraulic Excavator - Technical Specifications (Aus-NZ)
- 326 (07H) Hydraulic Excavator - Technical Specifications (Japan)
- Super Long Reach and Long Reach Excavation - Product Brochure (Europe, N Am)
- Payload Technologies for Excavators
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Net Power - ISO 9249 | 201 | hp |
| Net Power - ISO 9249 (DIN) | 204 | hp (metric) |
| Engine Model | ||
| Engine Power - ISO 14396 | 202 | hp |
| Engine Power - ISO 14396 (DIN) | 205 | hp (metric) |
| Bore | 4 | in |
| Stroke | 5 | in |
| Displacement | 428 | in³ |
| Biodiesel Capability | ||
| Emissions | ||
| Note (1) | ||
| Note (2) | ||
| Main System - Maximum Flow | ||
| Maximum Pressure - Equipment | 5075 | psi |
| Maximum Pressure - Equipment - Lift Mode | 5510 | psi |
| Maximum Pressure - Travel | 5075 | psi |
| Maximum Pressure - Swing | 4118 | psi |
| Swing Speed* | 9.9 | r/min |
| Maximum Swing Torque | 78180 | lbf·ft |
| Note (1) | ||
| Operating Weight | 56400 | lb |
| Note | ||
| Fuel Tank Capacity | 125.2 | gal (US) |
| Cooling System | 6.6 | gal (US) |
| Engine Oil | 6.6 | gal (US) |
| Swing Drive | 3 | gal (US) |
| Final Drive - Each | 1.2 | gal (US) |
| Hydraulic System - Including Tank | 81.9 | gal (US) |
| Hydraulic Tank | 38.8 | gal (US) |
| DEF Tank | 10.8 | gal (US) |
| Boom | ||
| Stick | ||
| Bucket | ||
| Shipping Height - Top of Cab | 9.8 | ft |
| Handrail Height | 9.8 | ft |
| Shipping Length | 33 | ft |
| Tail Swing Radius | 9.8 | ft |
| Counterweight Clearance | 3.5 | ft |
| Ground Clearance | 1.4 | ft |
| Track Length | 15.2 | ft |
| Length to Center of Rollers | 12.6 | ft |
| Track Gauge | 8.5 | ft |
| Transport Width | 10.5 | ft |
| Maximum Digging Depth | 22.4 | ft |
| Boom | ||
| Stick | ||
| Bucket | ||
| Maximum Reach at Ground Level | 33.2 | ft |
| Maximum Cutting Height | 31.8 | ft |
| Maximum Loading Height | 21.7 | ft |
| Minimum Loading Height | 7.8 | ft |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 21.8 | ft |
| Maximum Vertical Wall Digging Depth | 17.5 | ft |
| Bucket Digging Force - ISO | 37318 | lbf |
| Stick Digging Force - ISO | 27202 | lbf |
| Air Conditioning | ||
| Recyclability |
Standard Equipment
- NOTE
- CAB
- CAT TECHNOLOGIES
- ELECTRICAL SYSTEM
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
Optional Equipment
- NOTE
- BOOMS AND STICKS
- CAB
- CAT TECHNOLOGIES
- ELECTRICAL SYSTEM
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
