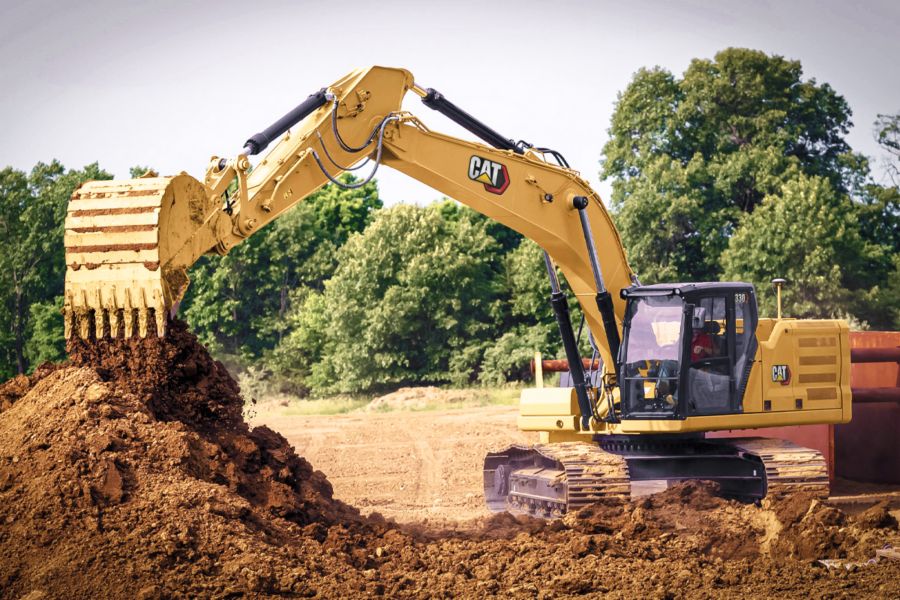

330
The Cat® 330 delivers more digging force and larger buckets for faster, more accurate work. Built with advanced technology, it’s designed for site prep, utility, and mass excavation, helping reduce fuel use and maintenance costs while maximizing output.
The Cat® 330 delivers more digging force and larger buckets for faster, more accurate work. Built with advanced technology, it’s designed for site prep, utility, and mass excavation, helping reduce fuel use and maintenance costs while maximizing output.
Brochures and Spec Sheets
- 330 (07H) Hydraulic Excavator - Product Brochure (Aus-NZ, Chile, Colombia, Europe, N Am, Japan, Türkiye, Korea)
- 330 (07H) Hydraulic Excavator - Technical Specifications (Aus-NZ)
- 330 (07H) Hydraulic Excavator - Technical Specifications (Chile, Colombia, Türkiye)
- 330 (07H) Hydraulic Excavator - Technical Specifications (Europe)
- 330 (07H) Hydraulic Excavator - Technical Specifications (Japan)
- 330 (07H) Hydraulic Excavator - Technical Specifications (Korea)
- 330 (07H) Hydraulic Excavator - Technical Specifications (N Am)
- Demolition Hydraulic Excavators 330, 340, 352 SB | 340, 352 UHD - Product Brochure (Europe, N Am, Japan)
- Super Long Reach and Long Reach Excavation - Product Brochure (Europe, N Am)
Gallery
Specifications
| Specification | Value | Unit |
|---|---|---|
| Net Power - ISO 9249 | 273 | hp |
| Net Power - ISO 9249 (DIN) | 277 | hp (metric) |
| Engine Model | ||
| Engine Power - ISO 14396 | 275 | hp |
| Engine Power - ISO 14396 (DIN) | 279 | hp (metric) |
| Bore | 4 | in |
| Stroke | 5 | in |
| Displacement | 428 | in³ |
| Biodiesel Capability | ||
| Emissions | ||
| Note (1) | ||
| Note (2) | ||
| Main System - Maximum Flow | ||
| Maximum Pressure - Equipment | 5075 | psi |
| Maximum Pressure - Equipment - Lift Mode | 5510 | psi |
| Maximum Pressure - Travel | 5075 | psi |
| Maximum Pressure - Swing | 4320 | psi |
| Swing Speed* | 11.5 | r/min |
| Maximum Swing Torque | 81132 | lbf·ft |
| Note (1) | ||
| Operating Weight | 69200 | lb |
| Note | ||
| Fuel Tank Capacity | 125.2 | gal (US) |
| Cooling System | 6.6 | gal (US) |
| Engine Oil | 6.6 | gal (US) |
| Swing Drive | 2.6 | gal (US) |
| Final Drive - Each | 1.5 | gal (US) |
| Hydraulic System - Including Tank | 81.9 | gal (US) |
| Hydraulic Tank | 38.8 | gal (US) |
| DEF Tank | 10.8 | gal (US) |
| Boom | ||
| Stick | ||
| Bucket | ||
| Shipping Height - Top of Cab | 10 | ft |
| Handrail Height | 10 | ft |
| Shipping Length | 34.2 | ft |
| Tail Swing Radius | 10.3 | ft |
| Counterweight Clearance | 3.7 | ft |
| Ground Clearance | 1.6 | ft |
| Track Length | 15.9 | ft |
| Length to Center of Rollers | 13.1 | ft |
| Track Gauge | 8.5 | ft |
| Transport Width | 11.1 | ft |
| Maximum Digging Depth | 23.9 | ft |
| Boom | ||
| Stick | ||
| Bucket | ||
| Maximum Reach at Ground Level | 35 | ft |
| Maximum Cutting Height | 32.9 | ft |
| Maximum Loading Height | 22.8 | ft |
| Minimum Loading Height | 7.5 | ft |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 23.3 | ft |
| Maximum Vertical Wall Digging Depth | 19.7 | ft |
| Bucket Digging Force - ISO | 40200 | lbf |
| Stick Digging Force - ISO | 28300 | lbf |
| Air Conditioning |
Standard Equipment
- NOTE
- CAB
- CAT TECHNOLOGY
- ELECTRICAL SYSTEM
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
Optional Equipment
- NOTE
- BOOMS AND STICKS
- CAB
- CAT TECHNOLOGY
- ENGINE
- HYDRAULIC SYSTEM
- SAFETY AND SECURITY
- SERVICE AND MAINTENANCE
- UNDERCARRIAGE AND STRUCTURES
