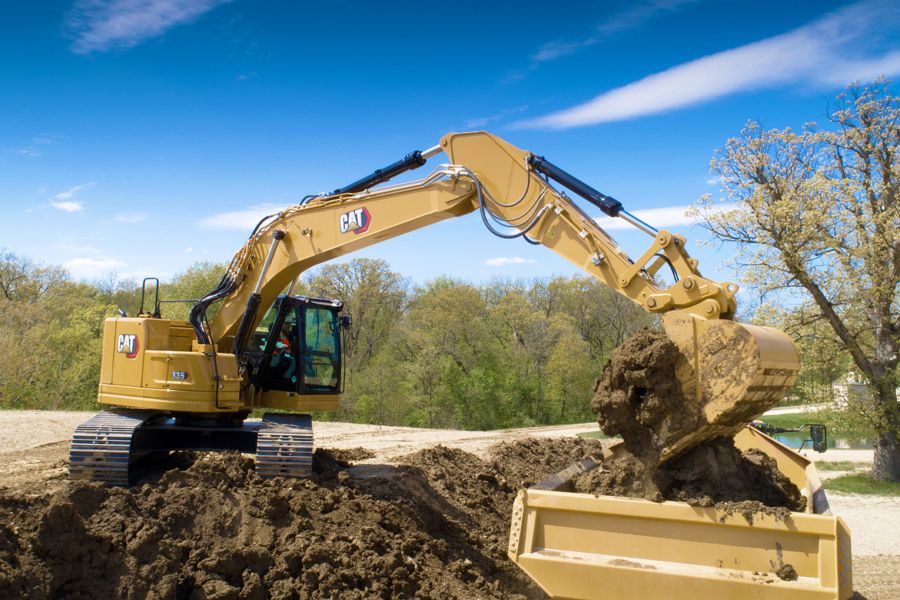

The Cat® 335 Excavator delivers powerful performance in a compact radius design for heavy construction, roadwork, earthmoving, and truck loading. This 35-ton machine features smart technology, an ergonomic cab, long maintenance intervals, fuel efficiency, and high uptime.
The Cat® 335 Excavator delivers powerful performance in a compact radius design for heavy construction, roadwork, earthmoving, and truck loading. This 35-ton machine features smart technology, an ergonomic cab, long maintenance intervals, fuel efficiency, and high uptime.

Brochures and Spec Sheets

Gallery

335 335 335 335 335

Specifications

Specification Value Unit
Net Power - ISO 9249 273 hp
Net Power - ISO 9249 (DIN) 277 hp (metric)
Engine Model
Engine Power - ISO 14396 275 hp
Engine Power - ISO 14396 (DIN) 279 hp (metric)
Bore 4 in
Stroke 5 in
Displacement 428 in³
Biodiesel Capability
Emissions
Note (1)
Note (2)
Main System - Maximum Flow
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Equipment - Lift Mode 5510 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 4175 psi
Swing Speed* 10.8 r/min
Maximum Swing Torque 79455 lbf·ft
Note (1)
Operating Weight 77000 lb
Note
Fuel Tank Capacity 97.2 gal (US)
Cooling System 3.3 gal (US)
Engine Oil 6.6 gal (US)
Swing Drive 2.9 gal (US)
Final Drive - Each 1.8 gal (US)
Hydraulic System - Including Tank 92.5 gal (US)
Hydraulic Tank 40.7 gal (US)
DEF Tank 7 gal (US)
Boom
Stick
Bucket
Shipping Height - Top of Cab 10.7 ft
Handrail Height 11.2 ft
Shipping Length 32.2 ft
Tail Swing Radius 6.2 ft
Counterweight Clearance 3.8 ft
Ground Clearance 1.6 ft
Track Length 16.5 ft
Length to Center of Rollers 13.3 ft
Track Gauge 9 ft
Transport Width 11 ft
Maximum Digging Depth 22.9 ft
Boom
Stick
Bucket
Maximum Reach at Ground Level 34.9 ft
Maximum Cutting Height 36.6 ft
Maximum Loading Height 26.1 ft
Minimum Loading Height 9.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 22.4 ft
Maximum Vertical Wall Digging Depth 19 ft
Bucket Digging Force - ISO 46482 lbf
Stick Digging Force - ISO 32319 lbf
Air Conditioning
Recyclability

Standard Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ELECTRICAL SYSTEM
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • SERVICE AND MAINTENANCE
  • UNDERCARRIAGE AND STRUCTURES

Optional Equipment

  • NOTE
  • BOOM AND STICKS
  • CAB
  • CAT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • SAFETY AND SECURITY
  • UNDERCARRIAGE AND STRUCTURES
